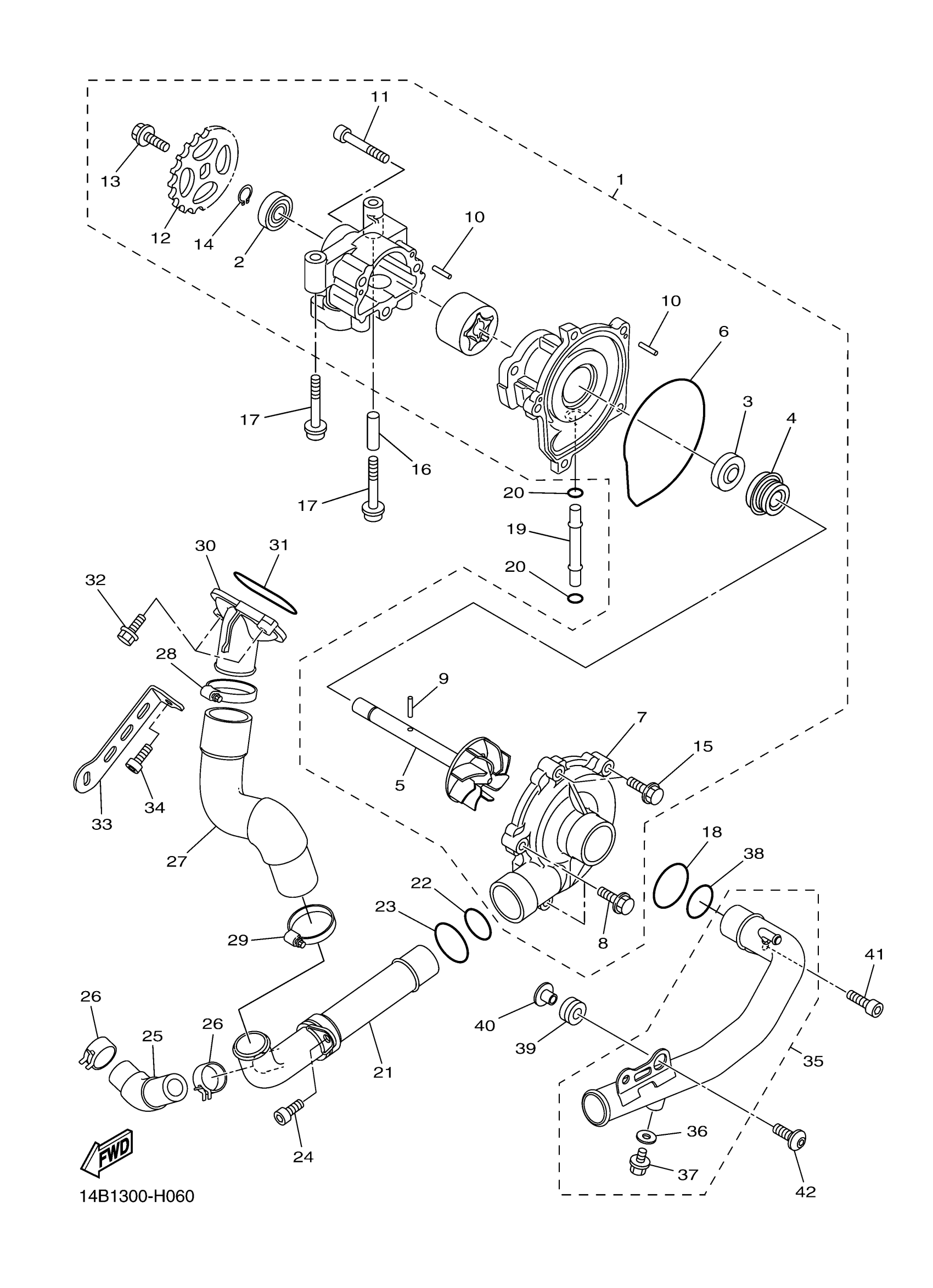

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

14B-12420-01-00

$578.99

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

SEAL

14B-13338-00-00

Unavailable

4

SEAL, MECHANICAL

4C8-12438-00-00

$49.99

5

IMPELLER SHAFT ASSY

14B-12450-00-00

Unavailable

6

O-RING

4XV-12439-00-00

$15.49

7

COVER, HOUSING

14B-12422-00-00

Unavailable

8

BOLT, FLANGE

95022-06025-00

$3.62

9

PIN,DOWEL

93603-17070-00

$4.14

10

PIN,DOWEL (603)

93603-12007-00

$2.55

11

BOLT

91312-06045-00

$4.08

12

SPROCKET, DRIVEN

14B-13355-00-00

Unavailable

13

BOLT, FLANGE

90105-06066-00

$8.49

14

CIRCLIP(10Y)

99009-12400-00

$3.59

15

BOLT, FLANGE

95022-06020-00

$3.62

16

PIN, DOWEL

91808-30031-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06166-00

Unavailable

18

O-RING

93210-357A2-00

Unavailable

19

PIPE 5

4XV-12485-00-00

Unavailable

20

O-RING(26H)

93210-06667-00

Unavailable

21

PIPE 1

14B-12481-00-00

Unavailable

22

O-RING

93210-235A1-00

Unavailable

23

O-RING(1KT)

93210-27778-00

Unavailable

24

BOLT,SOCKET

91317-06012-00

Unavailable

25

HOSE 5

14B-12588-00-00

Unavailable

26

CLIP

90467-200A0-00

Unavailable

27

HOSE 1

14B-12576-00-00

Unavailable

28

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

29

HOSE CLAMP ASSY

90450-35001-00

Unavailable

30

JOINT 1

14B-12469-10-00

Unavailable

31

O-RING

93210-46044-00

Unavailable

32

BOLT, FLANGE(4KG)

95024-06025-00

Unavailable

33

STAY 1

14B-12637-00-00

Unavailable

34

BOLT,SOCKET HEAD

91314-06012-00

Unavailable

35

PIPE 4

14B-12484-00-00

Unavailable

36

GASKET 256113960000

90430-06014-00

Unavailable

37

SCREW, HEXAGON

90153-06002-00

Unavailable

38

O-RING

93210-235A1-00

Unavailable

39

GROMMET

90480-12010-00

Unavailable

40

COLLAR

90387-06112-00

Unavailable

41

BOLT,SOCKET

91317-06012-00

Unavailable

42

SCREW(4DN)

90149-06302-00

Unavailable
