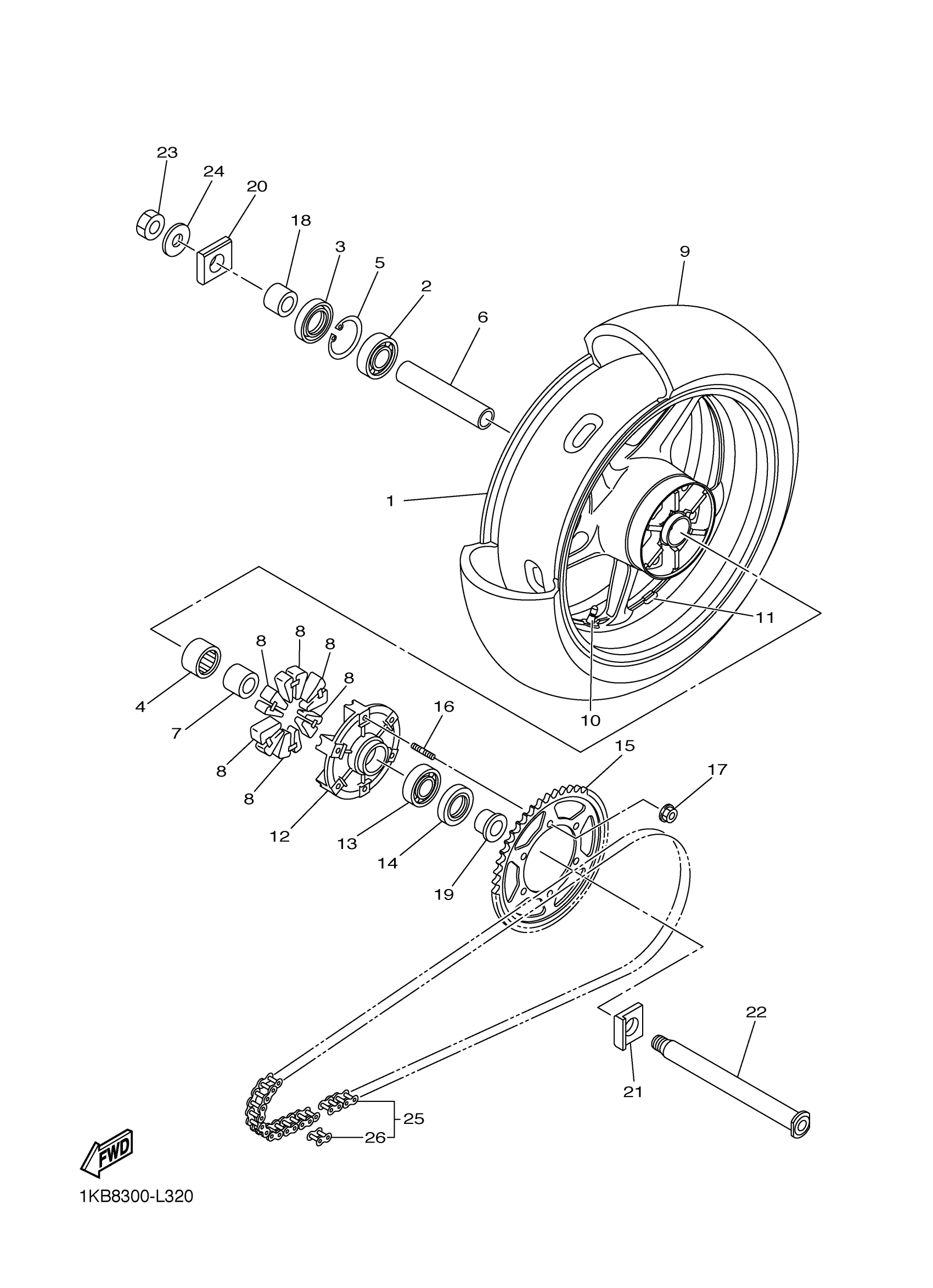

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

5VY-25338-00-4X

Unavailable

2

BEARING(3JN)

93306-20531-00

$50.99

3

OIL SEAL

93106-40013-00

$14.99

4

BEARING

93317-43580-00

$73.99

5

CIRCLIP

93420-61M07-00

Unavailable

6

SPACER, BEARING

5PW-25317-00-00

$57.99

7

COLLAR, WHEEL

4XV-25383-00-00

Unavailable

8

DAMPER

2C0-25364-00-00

$24.99

9

190/55 ZR17 M/C 75W - DUNLOP

94119-17072-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5JJ-25366-00-00

$465.99

13

BEARING(3JN)

93306-20531-00

$50.99

14

OIL SEAL

93106-40013-00

$14.99

15

SPROCKET, DRIVEN (47T)

14B-25447-20-00

Unavailable

16

BOLT, STUD

90116-10048-00

Unavailable

17

NUT, SELF-LOCKING

90185-10011-00

Unavailable

18

COLLAR

90387-28016-00

Unavailable

19

COLLAR

90387-28019-00

Unavailable

20

PULLER, CHAIN 1

5VY-25388-00-00

Unavailable

21

PULLER, CHAIN 2

5VY-25389-01-00

Unavailable

22

AXLE, WHEEL

4C8-25381-00-00

Unavailable

23

NUT, SELF-LOCKING

90185-24007-00

Unavailable

24

WASHER, PLATE

90201-25020-00

Unavailable

25

SET, CHAIN

94A40-13120-00

Unavailable

26

JOINT, CHAIN

94682-5402R-00

Unavailable
