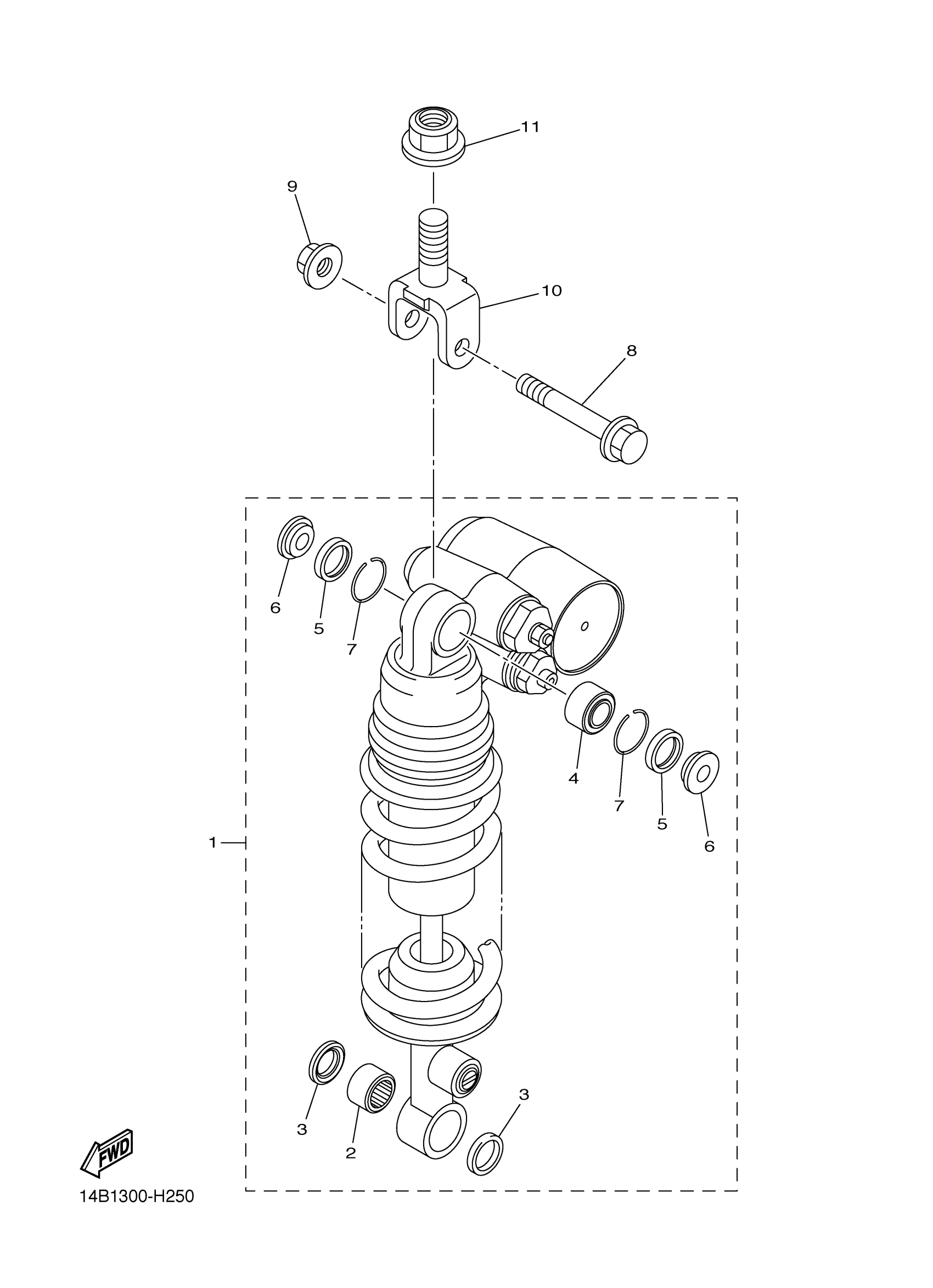

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

1KB-22210-10-00

Unavailable

2

BEARING

93315-31758-00

$32.40

3

OIL SEAL

93109-17071-00

$6.29

4

BEARING(4JT)

93399-999T4-00

Unavailable

5

OIL SEAL

93101-18061-00

$4.91

6

COLLAR, DISTANCE

14B-22253-00-00

Unavailable

7

CIRCLIP (23X)

93440-30113-00

$0.98

8

BOLT, WASHER BASED

90105-10020-00

Unavailable

9

NUT, S/L FLANGE

95602-10200-00

$2.14

10

BRACKET, UPPER

1KB-22219-00-00

$72.71

11

NUT, SELF-LOCKING

95602-16200-00

Unavailable
