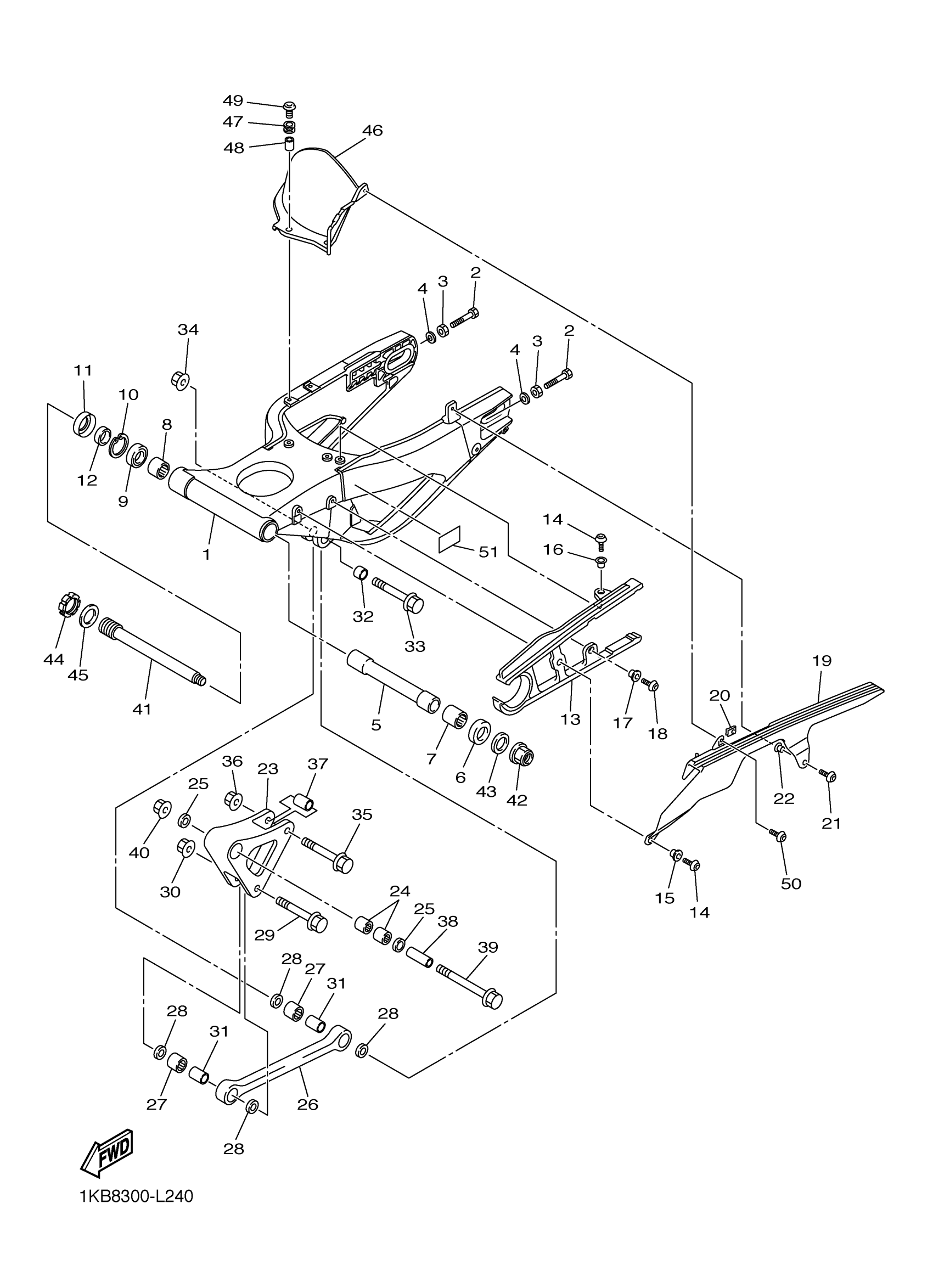

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 REAR ARM Diagram
#
5
BUSH
14B-22184-00-00
Unavailable
9
BEARING
93306-97202-00
Unavailable
12
COLLAR
90387-22023-00
Unavailable
16
COLLAR
90387-06066-00
Unavailable
17
COLLAR
90387-06066-00
Unavailable
19
CASE, CHAIN
14B-22311-01-00
Unavailable
20
NUT, SPRING
90183-050A6-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-06083-00
Unavailable
22
COLLAR (3L1)
90387-07717-00
Unavailable
23
ARM, RELAY
1KB-2217A-00-00
Unavailable
24
BEARING
93315-31758-00
Unavailable
25
OIL SEAL
93109-17071-00
Unavailable
26
ARM 1
1KB-2217M-00-00
Unavailable
27
BEARING
93315-31758-00
Unavailable
28
OIL SEAL
93109-17071-00
Unavailable
29
BOLT, WASHER BASED
90105-10017-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
COLLAR
90387-1012A-00
Unavailable
32
COLLAR
90387-1013U-00
Unavailable
33
BOLT, WASHER BASED
90105-10018-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
BOLT, WASHER BASED
90105-10017-00
Unavailable
36
NUT, S/L FLANGE
95602-10200-00
Unavailable
37
COLLAR
90387-1012A-00
Unavailable
38
COLLAR
90387-10034-00
Unavailable
39
BOLT, FLANGE
90105-10150-00
Unavailable
40
NUT, S/L FLANGE
95602-10200-00
Unavailable
41
SHAFT, PIVOT
14B-22141-00-00
Unavailable
42
NUT, SELF-LOCKING
90185-20008-00
Unavailable
43
WASHER, PLATE
90201-20026-00
Unavailable
44
NUT
4C8-22252-00-00
Unavailable
45
WASHER, PLATE
90201-30016-00
Unavailable
46
REAR FENDER COMP.
14B-21650-00-00
Unavailable
47
GROMMET
90480-12005-00
Unavailable
48
COLLAR
90387-06057-00
Unavailable
49
SCREW(4DN)
90149-06302-00
Unavailable
50
BOLT
90111-05002-00
Unavailable
51
LABEL, TIRE
14B-21668-01-00
Unavailable
