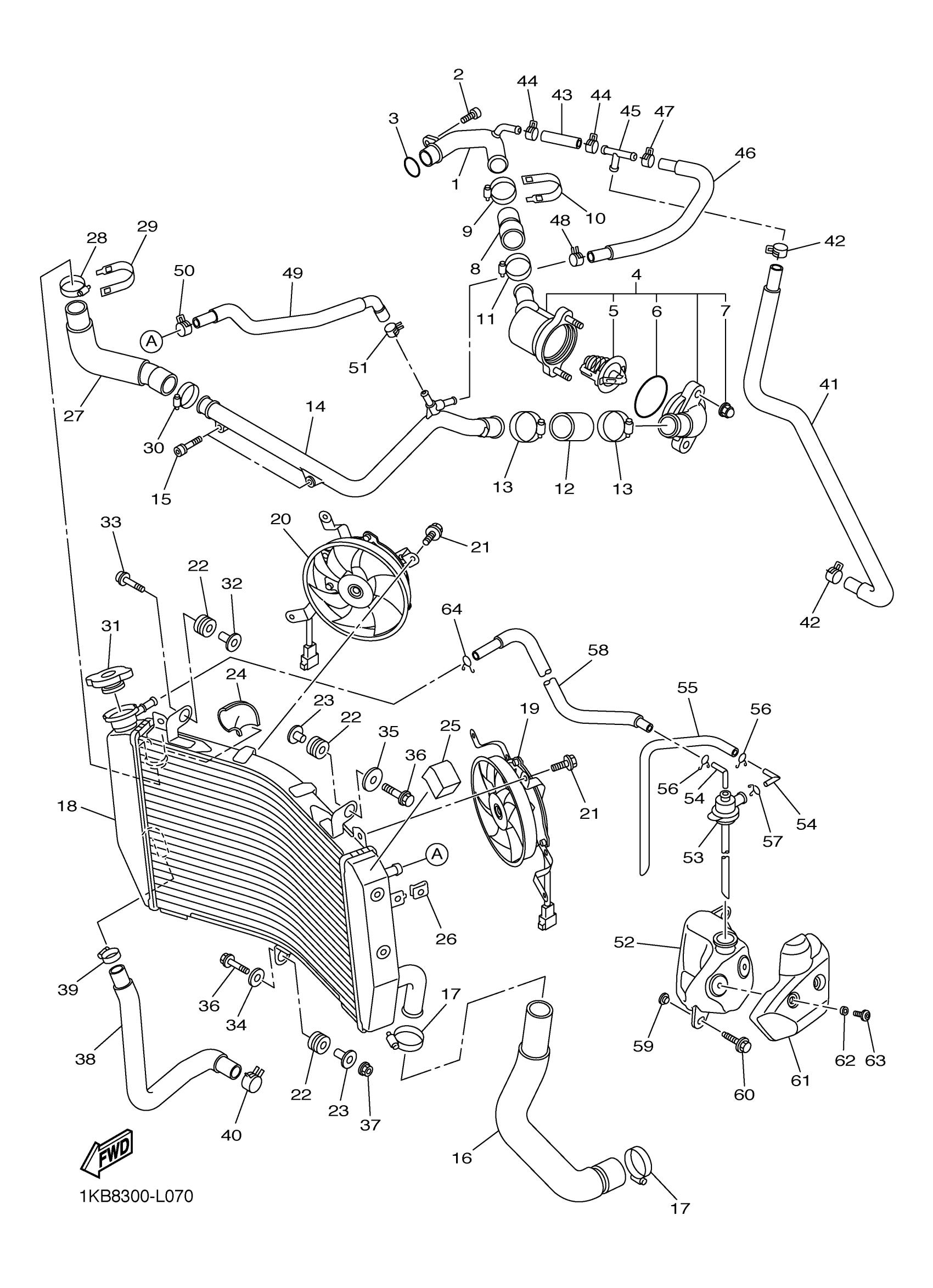

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 5

14B-12485-00-00

$83.99

2

BOLT,SOCKET

91317-06012-00

$8.49

3

O-RING

93210-235A1-00

$7.49

4

THERMOSTAT ASSY

14B-12410-01-00

Unavailable

5

THERMOSTAT

5LP-12411-01-00

$38.99

6

O-RING (620)

93210-49046-00

$7.49

7

NUT, CROWN

90176-06014-00

$7.49

8

HOSE 4

4C8-12579-00-00

$18.49

9

HOSE CLAMP ASSY

90450-35001-00

$5.60

10

COVER 2

5GV-1246E-00-00

$4.68

11

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

12

HOSE 4

14B-12579-00-00

$9.99

13

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

14

PIPE 2

14B-12482-00-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-06256-00

$2.17

16

HOSE 3

14B-12578-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-35001-00

$5.60

18

RADIATOR ASSY

14B-12461-00-00

Unavailable

19

BLOWER ASSY

1KB-12405-00-00

Unavailable

20

BLOWER ASSY

1KB-12405-10-00

Unavailable

21

BOLT, BLOWER HOLDING

5GJ-12675-00-00

Unavailable

22

GROMMET (29L)

90480-15363-00

Unavailable

23

COLLAR

90387-0614M-00

Unavailable

24

DAMPER, RADIATOR

14B-12465-00-00

Unavailable

25

DAMPER, SHROUD 7

13S-12688-00-00

Unavailable

26

NUT 1

5SL-12671-00-00

Unavailable

27

HOSE 7

14B-12551-00-00

Unavailable

28

HOSE CLAMP ASSY

90450-35001-00

$5.60

29

COVER 2

5GV-1246E-00-00

$4.68

30

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

31

CAP, RADIATOR

5SL-12462-01-00

Unavailable

32

COLLAR

90387-0614M-00

Unavailable

33

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

34

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

35

WASHER PLATE 248217570000

90201-06074-00

Unavailable

36

BOLT, FLANGE

95817-06030-00

Unavailable

37

NUT,SELF-LOCKING

95607-06200-00

Unavailable

38

HOSE 6

14B-12589-00-00

Unavailable

39

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

40

CLIP

90467-200A0-00

Unavailable

41

HOSE 1

14B-1243A-00-00

Unavailable

42

CLIP(3BM)

90467-10135-00

Unavailable

43

HOSE 2

14B-1243E-00-00

Unavailable

44

CLIP(3BM)

90467-10135-00

Unavailable

45

WAY 3(1AF)

90413-07023-00

Unavailable

46

HOSE, 4

14B-1244G-00-00

Unavailable

47

CLIP(3BM)

90467-10135-00

Unavailable

48

CLIP (7K7)

90467-11044-00

Unavailable

49

HOSE 8

14B-12552-00-00

Unavailable

50

CLIP(3BM)

90467-10135-00

Unavailable

51

CLIP (7K7)

90467-11044-00

Unavailable

52

TANK, RECOVERY

14B-21871-00-00

Unavailable

53

CAP

14B-21875-00-00

Unavailable

54

ELBOW

26H-21828-00-00

Unavailable

55

HOSE (L508)

90445-081F1-00

Unavailable

56

CLIP 101235600

90467-08003-00

Unavailable

57

CLIP

90467-10M04-00

Unavailable

58

HOSE,3

14B-1243F-00-00

Unavailable

59

COLLAR (8G8)

90387-06681-00

Unavailable

60

BOLT, WITH WASHER

90119-06177-00

Unavailable

61

COVER

14B-2172W-01-00

Unavailable

62

COLLAR

90387-06106-00

Unavailable

63

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

64

CLIP (16G)

90467-08021-00

Unavailable
