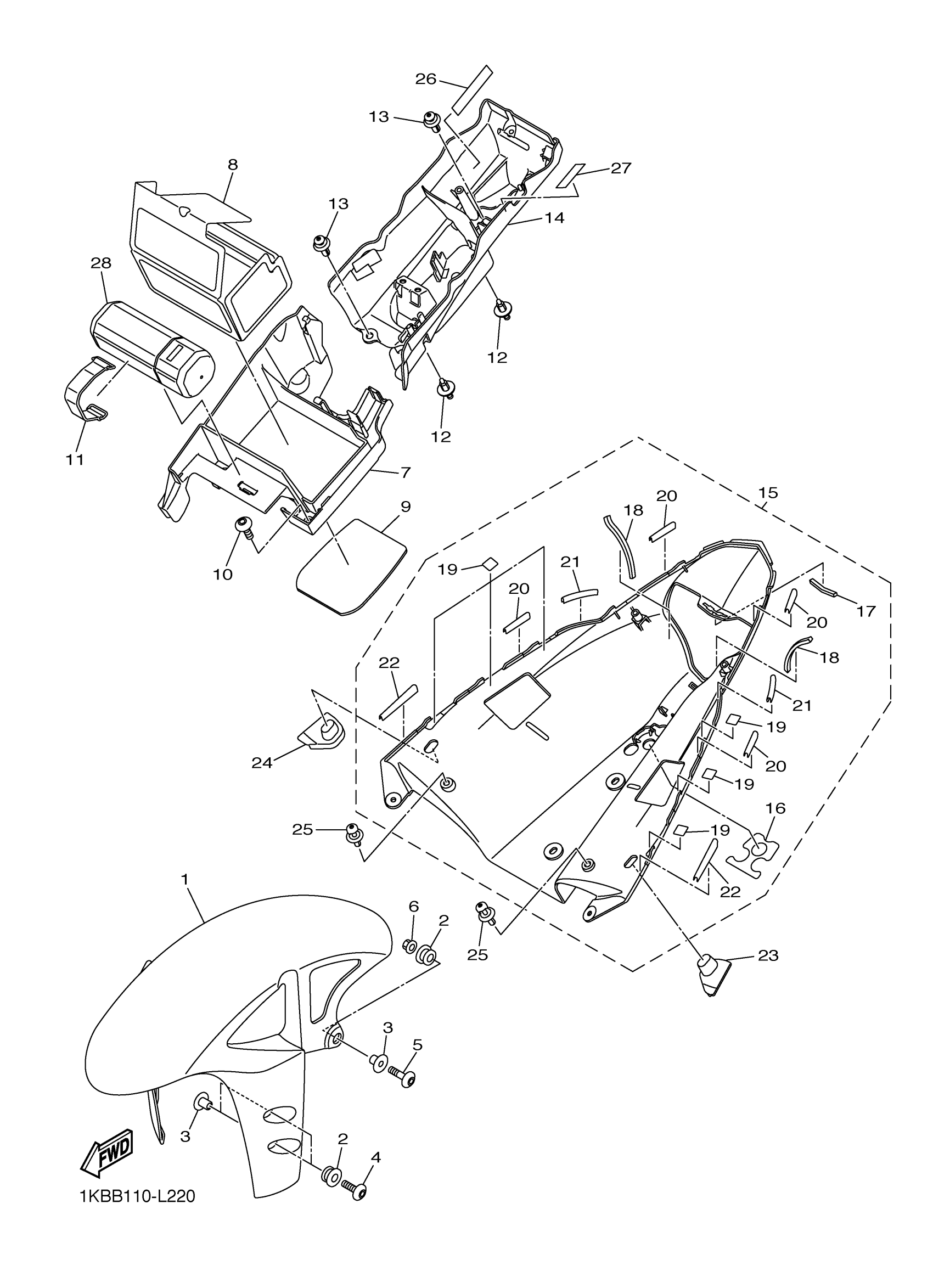

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

14B-21511-00-P5

Unavailable

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

4

BOLT

90111-06043-00

$4.46

5

BOLT

90111-06030-00

$4.41

6

NUT, FLANGE

95702-06500-00

$2.39

7

BOX, BATTERY 1

14B-8212B-00-00

Unavailable

8

SEAT, BATTERY

1KB-82122-00-00

Unavailable

9

DAMPER

14B-82176-20-00

Unavailable

10

SCREW(4DN)

90149-06302-00

Unavailable

11

BAND, BATTERY

5JJ-82131-00-00

$13.49

12

RIVET(4PH)

90269-07077-00

$8.49

13

RIVET

90269-07012-00

$2.97

14

BOX, BATTERY 2

14B-8212C-00-00

$34.99

15

REAR FENDER ASSY.

14B-21600-00-P5

Unavailable

16

SEAL

14B-21669-00-00

Unavailable

17

DAMPER

4GY-2174X-00-00

Unavailable

18

DAMPER

3CV-28372-00-00

Unavailable

19

SEAL 2

4C8-21735-00-00

Unavailable

20

SEAL 1

5VY-21732-00-00

Unavailable

21

SEAL 1

5PW-21732-00-00

Unavailable

22

SEAL 1

14B-21732-00-00

Unavailable

23

DAMPER 2

14B-21639-00-00

Unavailable

24

DAMPER

14B-21649-00-00

Unavailable

25

RIVET(4JH)

90269-07076-00

Unavailable

26

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

27

LABEL, CAUTION

4BR-24877-A0-00

Unavailable

28

TOOL KIT

14B-28100-00-00

Unavailable
