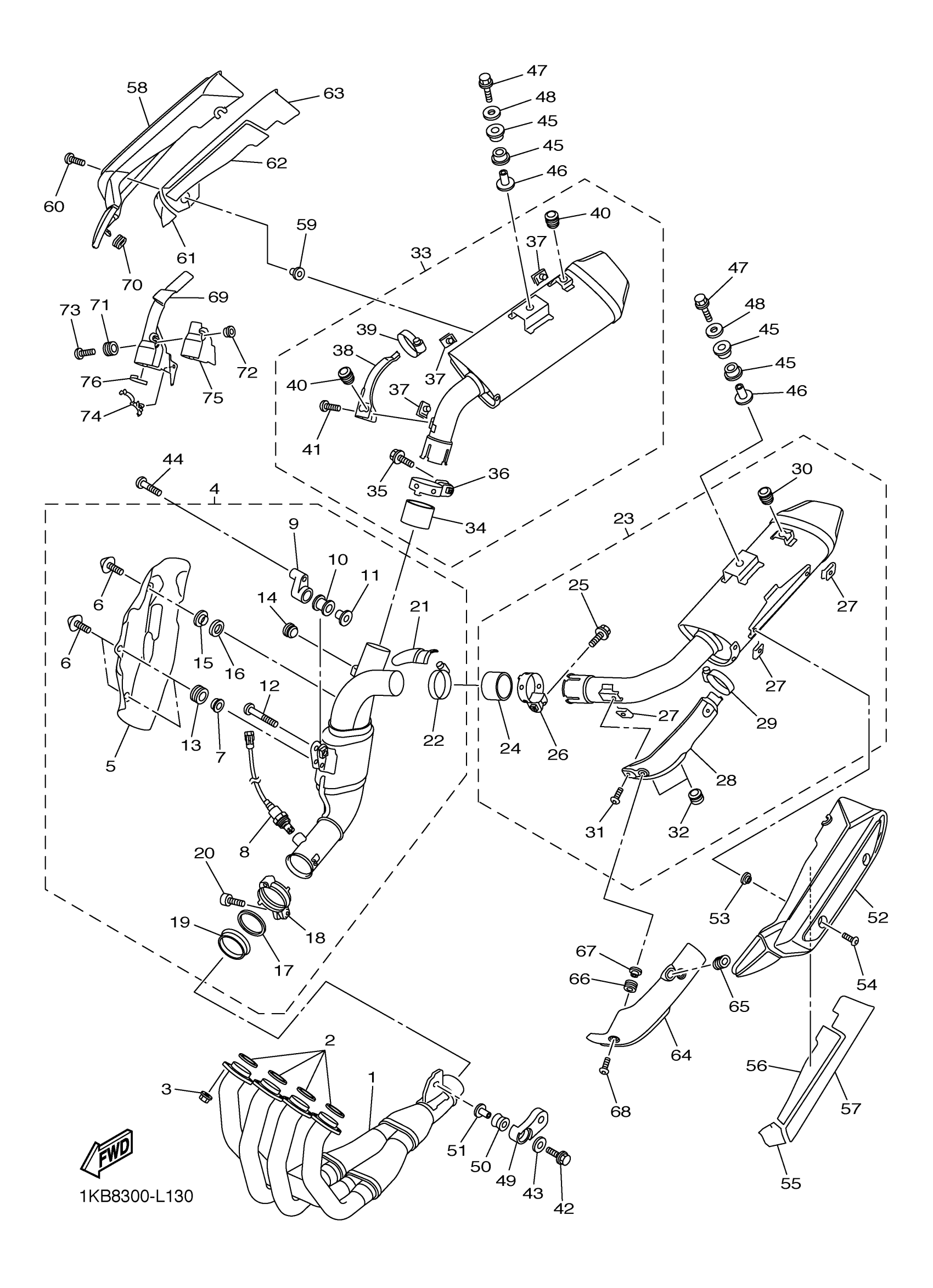

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 EXHAUST Diagram
#
1
EXHAUST PIPE COMP.
14B-14602-00-00
Unavailable
4
CATALYST ASSY.
14B-14740-10-00
Unavailable
5
PROTECTOR, MUFFLER 3
14B-14738-00-00
Unavailable
8
SENSOR, OXYGEN
14B-8592A-00-00
Unavailable
13
GROMMET(4HX)
90480-12579-00
Unavailable
14
DAMPER, MUFFLER
2D1-14737-01-00
Unavailable
16
WASHER, PLATE
90201-08080-00
Unavailable
17
GASKET, EXHAUST PIPE
14B-14623-00-00
Unavailable
18
BAND, MUFFLER
14B-14725-00-00
Unavailable
19
RING, STOPPER
14B-14618-00-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-06343-00
Unavailable
21
PLATE, PROTECTOR 3
14B-1465U-00-00
Unavailable
22
HOSE CLAMP ASSY
90450-45001-00
Unavailable
23
MUFFLER ASSY 1
14B-14710-40-00
Unavailable
24
GASKET, MUFFLER
5VY-14714-00-00
Unavailable
25
BOLT, FLANGE(4FM)
95814-08035-00
Unavailable
26
BAND, MUFFLER
3D8-14715-00-00
Unavailable
27
NUT, SPRING
90183-060A2-00
Unavailable
28
PLATE, PROTECTOR
14B-1465R-00-00
Unavailable
29
HOSE CLAMP ASSY
90450-45001-00
Unavailable
30
DAMPER, MUFFLER
3D7-14737-00-00
Unavailable
31
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
32
DAMPER, LOCATING 1
4FM-24181-00-00
Unavailable
33
MUFFLER ASSY 2
14B-14720-40-00
Unavailable
34
GASKET, MUFFLER
5VY-14714-00-00
Unavailable
35
BOLT, FLANGE(4FM)
95814-08035-00
Unavailable
36
BAND, MUFFLER
3D8-14715-00-00
Unavailable
37
NUT, SPRING
90183-060A2-00
Unavailable
38
PLATE, PROTECTOR
14B-1465T-00-00
Unavailable
39
HOSE CLAMP ASSY
90450-45001-00
Unavailable
40
DAMPER, MUFFLER
3D7-14737-00-00
Unavailable
41
BOLT, BUTTON HEAD
92012-06010-00
Unavailable
42
BOLT, FLANGE
95817-08040-00
Unavailable
43
WASHER, PLATE(3DM)
90201-087G2-00
Unavailable
44
BOLT,HEX. SOCKET BUTTON
90111-08071-00
Unavailable
45
DAMPER, FOOTREST 2
14B-27424-00-00
Unavailable
46
COLLAR
90387-08039-00
Unavailable
47
BOLT, FLANGE
95814-08045-00
Unavailable
48
WASHER, PLATE
90201-08082-00
Unavailable
49
STAY, MUFFLER 2
14B-21446-00-00
Unavailable
50
DAMPER, MUFFLER
5VY-14747-00-00
Unavailable
51
COLLAR
90387-08021-00
Unavailable
52
PROTECTOR, MUFFLER 1
1KB-14718-00-00
Unavailable
53
COLLAR
90387-06170-00
Unavailable
54
BOLT,HEX. SOCKET BUTTON
90111-06127-00
Unavailable
55
SEAT 1
1KB-27498-00-00
Unavailable
56
SEAT 2
1KB-27499-00-00
Unavailable
57
SEAT 3
1KB-2749A-00-00
Unavailable
58
PROTECTOR, MUFFLER 2
1KB-14728-00-00
Unavailable
59
COLLAR
90387-06170-00
Unavailable
60
BOLT,HEX. SOCKET BUTTON
90111-06127-00
Unavailable
61
SEAT 4
1KB-2749B-00-00
Unavailable
62
SEAT 5
1KB-2749C-00-00
Unavailable
63
SEAT 6
1KB-2749D-00-00
Unavailable
64
COVER, REAR FENDER 2
14B-2163E-00-00
Unavailable
65
GROMMET(4DN)
90480-01558-00
Unavailable
66
GROMMET(4FW)
90480-12581-00
Unavailable
67
COLLAR(50M)
90387-087L0-00
Unavailable
68
BOLT,HEX. SOCKET BUTTON
90111-06095-00
Unavailable
69
COVER, REAR FENDER 3
14B-2163F-00-00
Unavailable
70
GROMMET(4DN)
90480-01558-00
Unavailable
71
GROMMET(4FW)
90480-12581-00
Unavailable
72
COLLAR(50M)
90387-087L0-00
Unavailable
73
BOLT,HEX. SOCKET BUTTON
90111-06095-00
Unavailable
74
CLAMP
90464-16006-00
Unavailable
75
SEAT
14B-1478P-00-00
Unavailable
76
SEAT 5
14B-1479P-00-00
Unavailable
