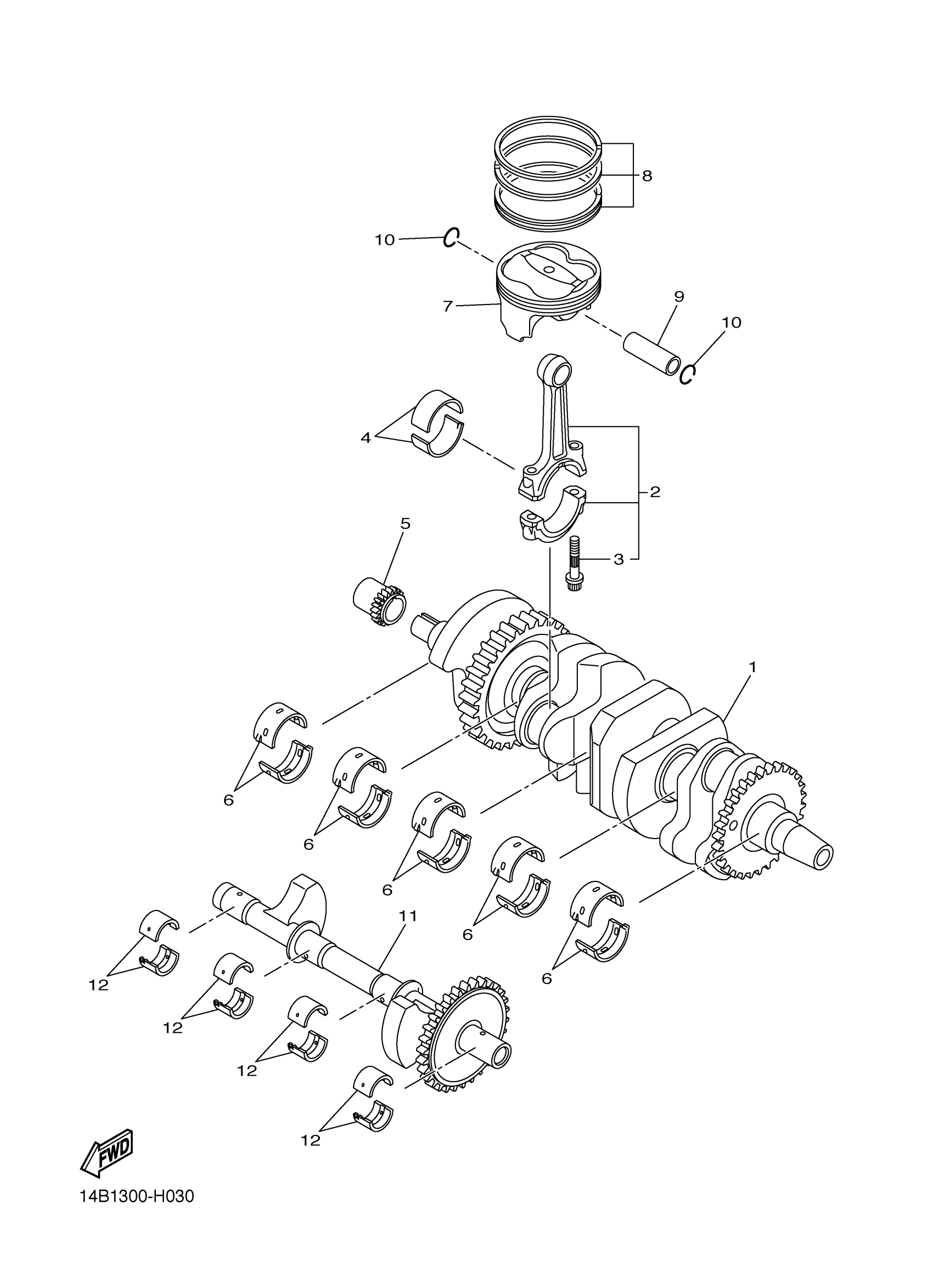

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

14B-11400-00-00

Unavailable

2

CONNECTING ROD ASSY

14B-11650-00-00

$241.99

3

BOLT, CONNECTING ROD

5VY-11654-01-00

$16.49

4

PLANE BEARING, CONNECTING ROD

14B-11656-00-00

$29.99

4

PLANE BEARING, CONNECTING ROD

14B-11656-10-00

$29.99

4

PLANE BEARING, CONNECTING ROD

14B-11656-20-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

14B-11656-30-00

$30.99

5

SPROCKET, CAM CHAIN

14B-11549-00-00

$112.99

6

PLANE BEARING, CRANKSHAFT 1

14B-11416-00-00

$13.49

6

PLANE BEARING, CRANKSHAFT 1

14B-11416-10-00

$24.99

6

PLANE BEARING, CRANKSHAFT 1

14B-11416-20-00

$24.99

6

PLANE BEARING, CRANKSHAFT 1

14B-11416-30-00

Unavailable

6

PLANE BEARING, CRANKSHAFT 1

14B-11416-40-00

$29.99

7

PISTON (STD)

14B-11631-00-00

$132.99

8

PISTON RING SET (STD)

14B-11603-01-00

$57.99

9

PIN, PISTON

4C8-11633-00-00

Unavailable

10

CIRCLIP

93450-18157-00

Unavailable

11

BALANCER ASSY

14B-11500-00-00

Unavailable

12

PLANE BEARING, BALANCE WEIGHT

14B-11413-00-00

Unavailable

12

PLANE BEARING, BALANCE WEIGHT

14B-11413-10-00

Unavailable

12

PLANE BEARING, BALANCE WEIGHT

14B-11413-20-00

Unavailable

12

PLANE BEARING, BALANCE WEIGHT

14B-11413-30-00

Unavailable

12

PLANE BEARING, BALANCE WEIGHT

14B-11413-40-00

Unavailable

12

PLANE BEARING, BALANCE WEIGHT

14B-11413-50-00

Unavailable

12

PLANE BEARING, BALANCE WEIGHT

14B-11413-A0-00

Unavailable
