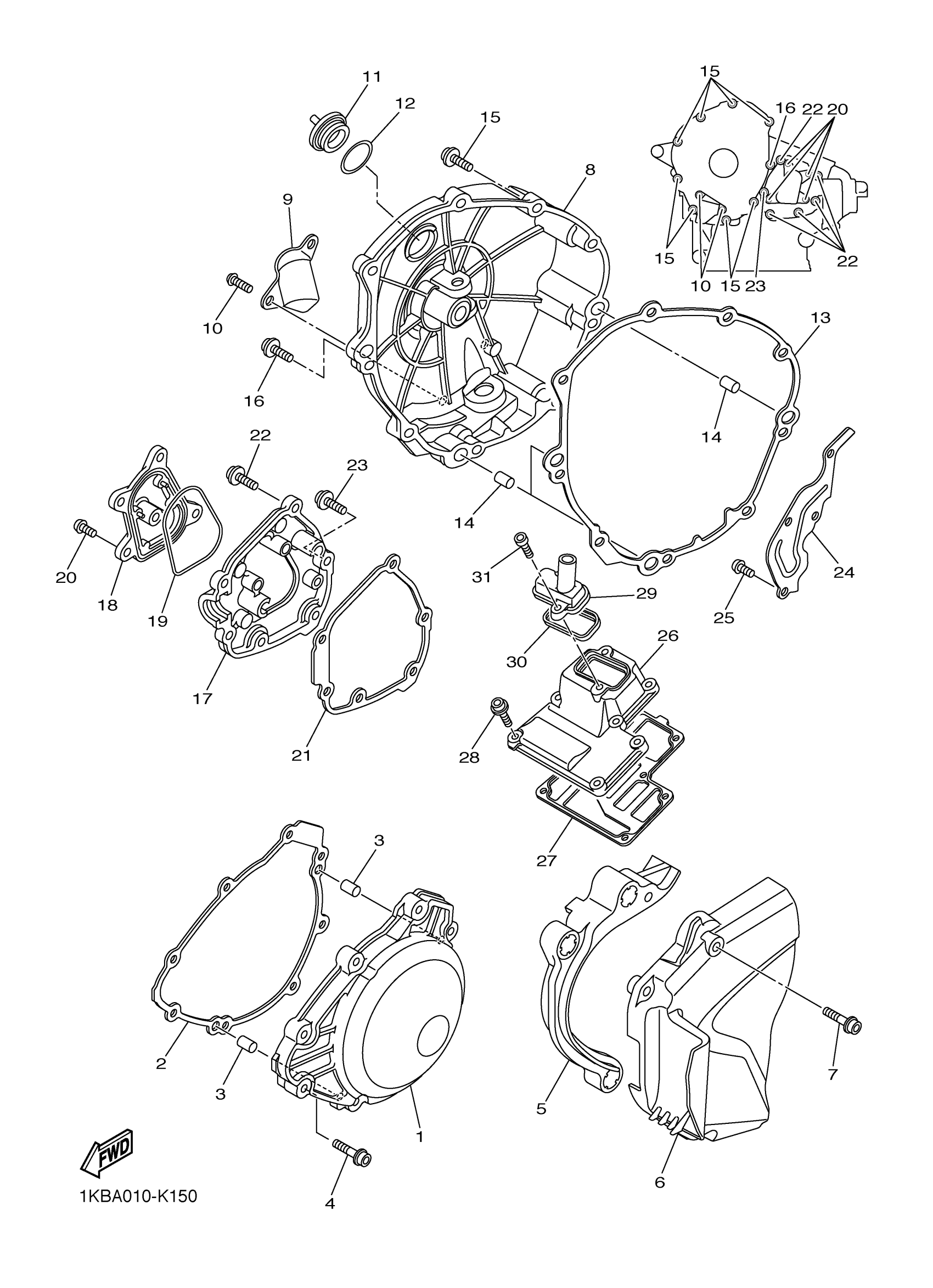

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

14B-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

14B-15451-00-00

$19.99

3

PIN, DOWEL

99530-08012-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

5

GUIDE, INLET

14B-15377-00-00

$43.99

6

COVER, CHAIN CASE

14B-15418-00-00

$24.99

7

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

8

COVER, CRANKCASE 2

14B-15421-00-00

Unavailable

9

PROTECTOR, COVER

5VY-15499-00-00

$46.99

10

SCREW

90149-06155-00

$8.49

11

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

12

O-RING(1KT)

93210-27778-00

$8.49

13

GASKET, CRANKCASE COVER 2

14B-15461-00-00

$28.99

14

PIN, DOWEL(72M)

93610-20189-00

$4.14

15

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

16

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

17

COVER, OIL PUMP

14B-15416-00-00

Unavailable

18

COVER, CRANKCASE 3

14B-15431-01-00

Unavailable

19

O-RING

93210-68001-00

Unavailable

20

SCREW

90149-06155-00

$8.49

21

GASKET, OIL PUMP COVER 1

14B-15456-00-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06331-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

24

PLATE, BREATHER

14B-11165-00-00

Unavailable

25

SCREW

90149-06156-00

Unavailable

26

COVER

14B-15413-00-00

Unavailable

27

GASKET, CRANKCASE COVER 3

14B-15462-00-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06387-00

$4.29

29

COVER 2

14B-15423-01-00

Unavailable

30

SEAL, CRANKCASE

14B-15379-00-00

Unavailable

31

BOLT,SOCKET

91317-06025-00

Unavailable
