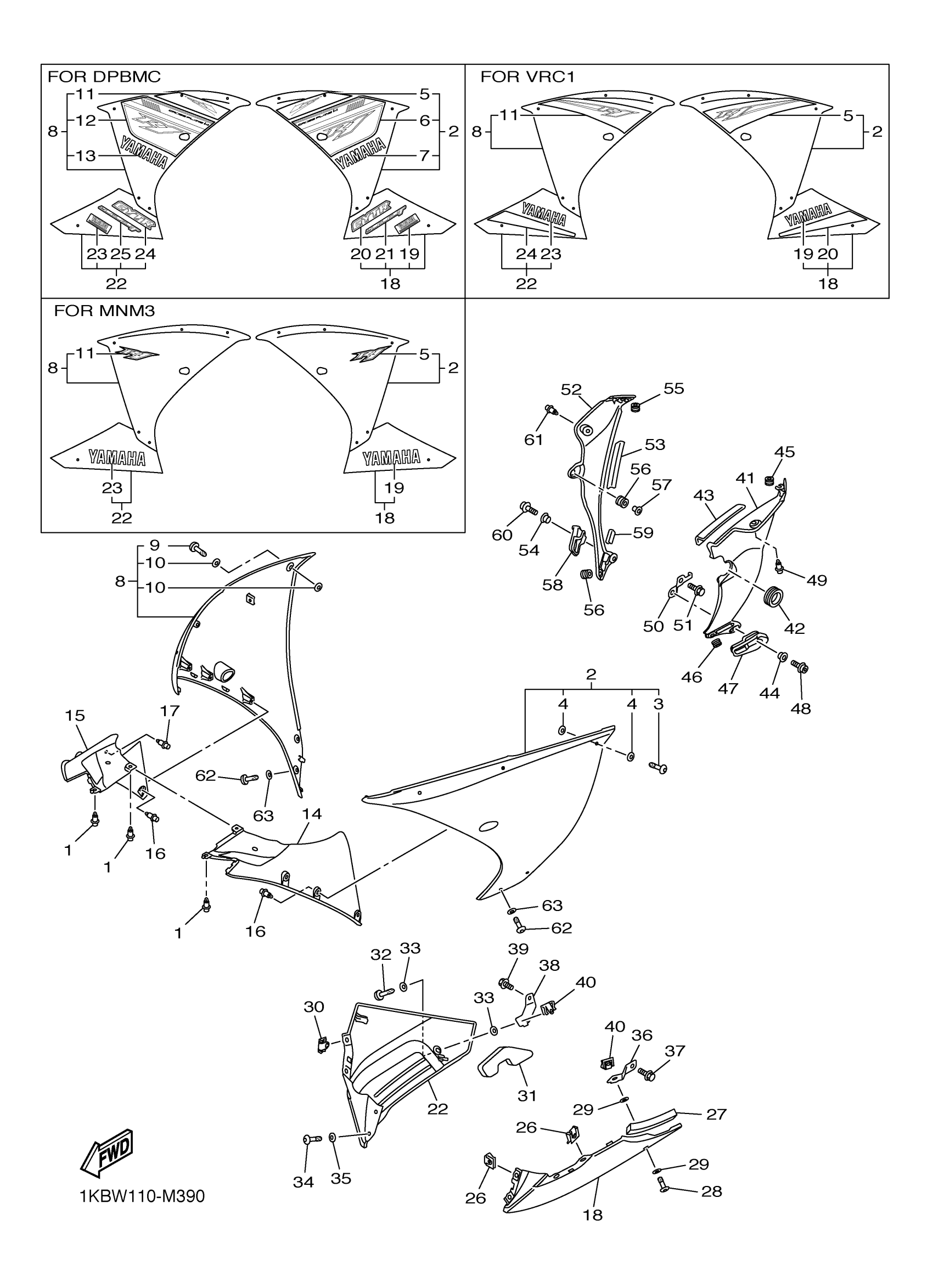

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 COWLING 2 Diagram
#
2
PANEL ASSY 1
14B-W283U-D1-P0
Unavailable
5
EMBLEM 3D
1KB-2839B-01-00
Unavailable
8
PANEL ASSY 2
14B-W283V-D1-P0
Unavailable
11
EMBLEM 3D
1KB-2839B-01-00
Unavailable
18
UNDER COVER COMP. 1
14B-W2838-V0-P0
Unavailable
19
EMBLEM, YAMAHA
99244-00200-00
Unavailable
22
UNDER COVER COMP. 2
14B-W2839-V0-P0
Unavailable
23
EMBLEM, YAMAHA
99244-00200-00
Unavailable
23
EMBLEM, YAMAHA
99247-00240-00
Unavailable
26
PLATE, SPRING
5PW-2177L-01-00
Unavailable
27
DAMPER, PLATE
90520-30004-00
Unavailable
30
PLATE, SPRING
5PW-2177L-01-00
Unavailable
31
DAMPER
14B-28371-10-00
Unavailable
35
WASHER, PLATE
90202-06005-00
Unavailable
36
BRACKET 1
14B-2836A-00-00
Unavailable
37
BOLT, FLANGE
95817-06016-00
Unavailable
38
BRACKET 2
14B-2836E-00-00
Unavailable
39
BOLT, FLANGE
95817-06016-00
Unavailable
40
PLATE, SPRING
5PW-2177L-01-00
Unavailable
41
PANEL, INNER 3
14B-2836M-10-P0
Unavailable
42
DAMPER, LOCATING 1
14B-2836T-00-00
Unavailable
43
DAMPER, PLATE
90520-05011-00
Unavailable
44
COLLAR
90387-08079-00
Unavailable
45
GROMMET
90480-08006-00
Unavailable
46
GROMMET(4FM)
90480-12596-00
Unavailable
47
STOPPER, RUBBER 1
14B-283C1-00-00
Unavailable
48
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
49
RIVET(4PH)
90269-07077-00
Unavailable
50
STAY 1
14B-28321-00-00
Unavailable
51
BOLT, FLANGE
95817-06012-00
Unavailable
52
PANEL, INNER 4
14B-2836N-10-P0
Unavailable
53
SEAL 1
3NU-21732-00-00
Unavailable
54
COLLAR
90387-08079-00
Unavailable
55
GROMMET
90480-08006-00
Unavailable
56
GROMMET(4FM)
90480-12596-00
Unavailable
57
COLLAR
90387-06159-00
Unavailable
58
STOPPER, RUBBER 2
14B-283C2-00-00
Unavailable
59
SEAL 5
4B5-2847F-00-00
Unavailable
60
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
61
RIVET(4PH)
90269-07077-00
Unavailable
63
WASHER, PLATE
90202-06005-00
Unavailable
