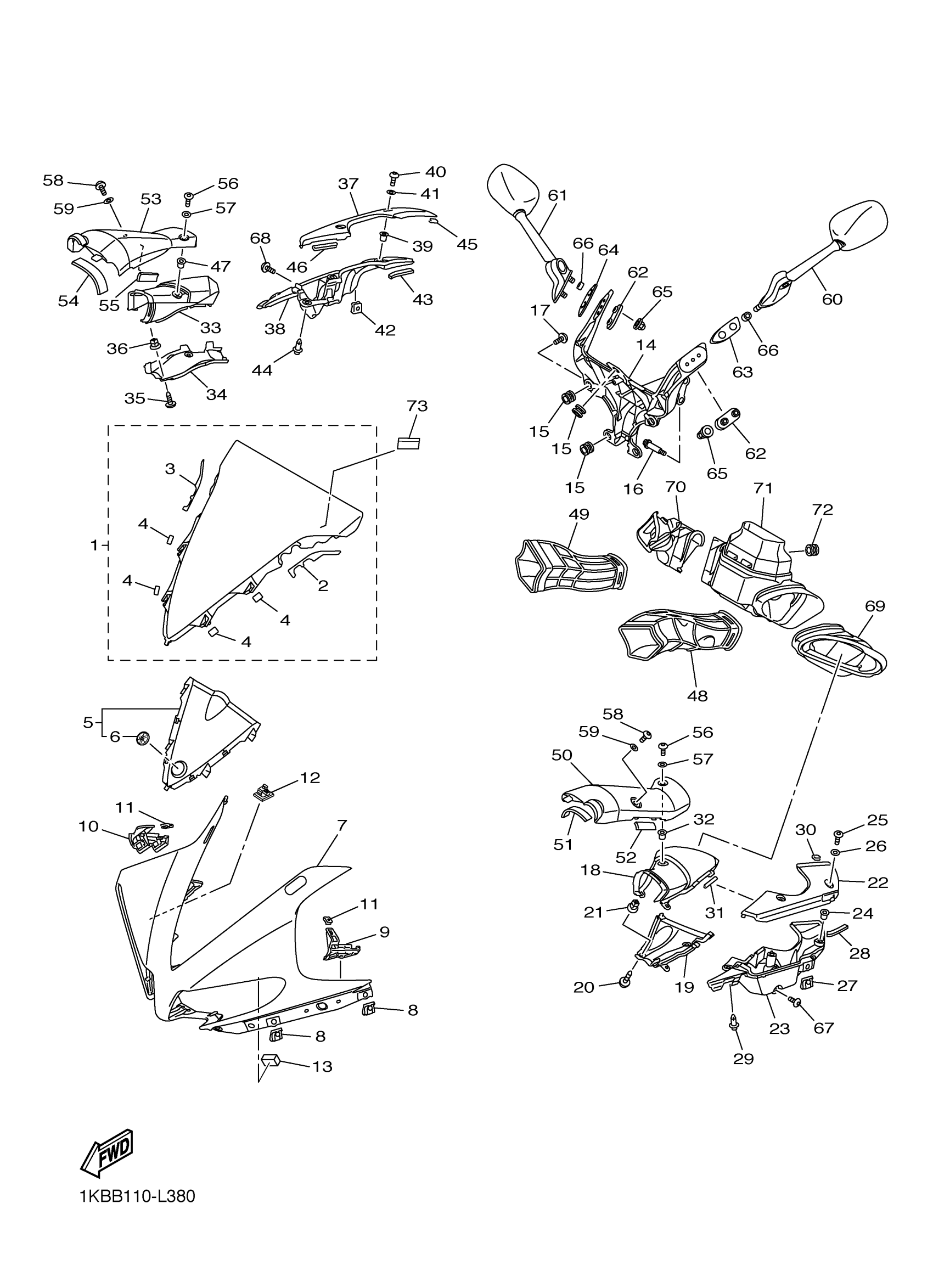

Yamaha YZFR1DR (YZFR1) 1KBW0 2013 COWLING 1 Diagram

#

Description
Price

1

WINDSCREEN ASSY

14B-28380-40-00

$153.99

2

SEAL 1

14B-28428-10-00

Unavailable

3

SEAL 2

14B-28429-10-00

Unavailable

4

SEAL 2

4C8-21735-00-00

$6.99

5

PANEL ASSY

1KB-2830P-01-00

$62.99

6

TUNING FORK MARK

4KN-2836B-10-00

$18.49

7

BODY, FRONT UPPER 1

1KB-2835G-00-P0

$465.99

8

PLATE, SPRING

5PW-2177L-01-00

$6.99

9

STAY, SIDE 1

1KB-2831U-01-00

$7.99

10

STAY, SIDE 1

1KB-2832U-01-00

$8.99

11

NUT, SPRING

90183-050A6-00

$8.49

12

CLAMP

90464-16020-00

Unavailable

13

DAMPER, PLATE

90520-15010-00

$2.22

14

STAY 1

14B-28356-10-00

$259.99

15

DAMPER

4XV-83513-00-00

$7.99

16

BOLT, FLANGE

90105-08052-00

Unavailable

17

SCREW, ROUND TAPPING

90160-05006-00

Unavailable

18

DUCT 1

14B-2838N-00-P5

Unavailable

19

DUCT 3

14B-2838T-00-00

Unavailable

20

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

21

GROMMET

90480-08005-00

Unavailable

22

LID 1

14B-2839K-00-P5

Unavailable

23

BOX 3

14B-2838V-00-00

Unavailable

24

NUT(1KT)

90179-05523-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

26

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

27

PLATE, SPRING

5PW-2177L-01-00

$6.99

28

SEAL 4

J44-78248-00-00

Unavailable

29

RIVET(4PH)

90269-07077-00

Unavailable

30

DAMPER, PLATE

90520-01001-00

Unavailable

31

DAMPER, PLATE

90520-03005-00

Unavailable

32

NUT(1KT)

90179-05523-00

Unavailable

33

DUCT 2

14B-2838R-00-P5

Unavailable

34

DUCT 4

14B-2838U-00-00

Unavailable

35

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

36

GROMMET

90480-08005-00

Unavailable

37

LID 2

14B-2839L-00-P5

Unavailable

38

BOX 4

14B-2838W-00-00

Unavailable

39

NUT(1KT)

90179-05523-00

Unavailable

40

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

41

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

42

PLATE, SPRING

5PW-2177L-01-00

$6.99

43

SEAL 4

J44-78248-00-00

Unavailable

44

RIVET(4PH)

90269-07077-00

Unavailable

45

DAMPER, PLATE

90520-01001-00

Unavailable

46

DAMPER, PLATE

90520-03005-00

Unavailable

47

NUT(1KT)

90179-05523-00

Unavailable

48

DUCT 5

14B-2838J-01-00

Unavailable

49

DUCT 6

14B-2838P-01-00

Unavailable

50

PANEL, CONSOLE 1

14B-2837L-00-P5

Unavailable

51

DAMPER, 3

4C8-2112D-00-00

Unavailable

52

SEAL 1

2S3-2111D-00-00

Unavailable

53

PANEL, CONSOLE 2

14B-2837M-00-P5

Unavailable

54

DAMPER, 3

4C8-2112D-00-00

Unavailable

55

SEAL 1

2S3-2111D-00-00

Unavailable

56

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

57

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

58

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

59

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

60

REAR VIEW MIRROR ASSY (LEFT)

14B-26280-00-00

Unavailable

61

REAR VIEW MIRROR ASSY (RIGHT)

14B-26290-00-00

Unavailable

62

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

63

BASE, MIRROR (LEFT)

14B-2628N-00-00

Unavailable

64

BASE, MIRROR (RIGHT)

14B-2628R-00-00

Unavailable

65

NUT, CROWN(1FN)

90176-06055-00

Unavailable

66

COLLAR(J45)

90387-064T3-00

Unavailable

67

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

68

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

69

BOX, SIDE 1

14B-2846C-00-00

Unavailable

70

BOX, SIDE 2

14B-2846D-01-00

Unavailable

71

BOX, FRONT

14B-2845D-10-00

Unavailable

72

GROMMET(4FU)

90480-13567-00

Unavailable

73

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
