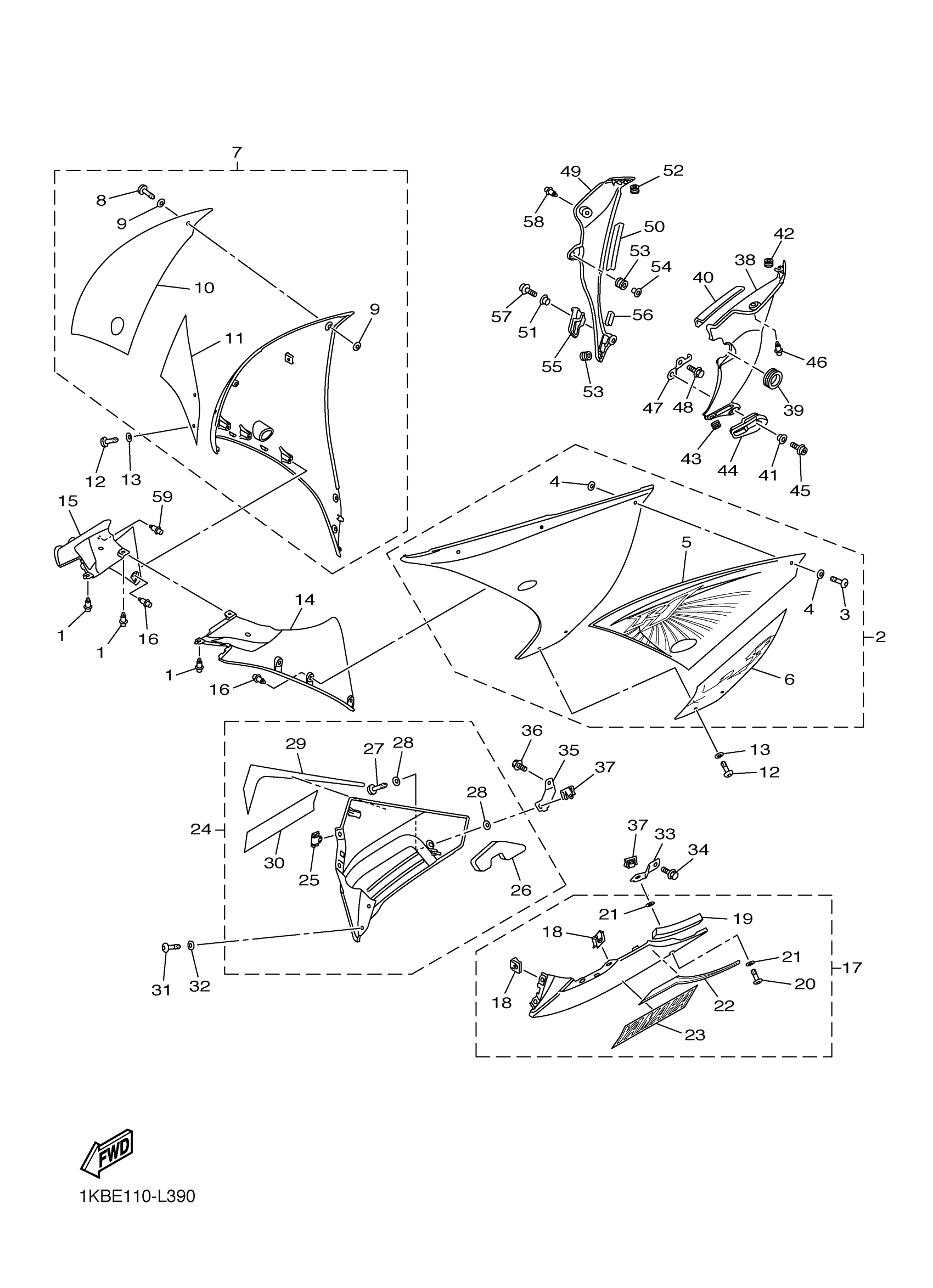

Yamaha YZFR1BW (YZFR1) 1KBE 2012 COWLING 2 Diagram
#
2
PANEL ASSY 1
14B-W283U-X0-33
Unavailable
7
PANEL ASSY 2
14B-W283V-X0-33
Unavailable
10
GRAPHIC SET 2
1KB-28392-40-00
Unavailable
17
COVER ASSY, UNDER
14B-Y2808-W0-P2
Unavailable
18
PLATE, SPRING
5PW-2177L-01-00
Unavailable
19
DAMPER, PLATE
90520-30004-00
Unavailable
22
GRAPHIC, UNDER COVER 1
1KB-283A1-10-00
Unavailable
23
EMBLEM, YAMAHA
13S-2153E-60-00
Unavailable
24
COVER ASSY 2, UNDER
14B-Y2809-W0-P2
Unavailable
25
PLATE, SPRING
5PW-2177L-01-00
Unavailable
26
DAMPER
14B-28371-10-00
Unavailable
29
GRAPHIC, UNDER COVER 2
1KB-283A2-10-00
Unavailable
30
EMBLEM, YAMAHA
13S-2153E-60-00
Unavailable
33
BRACKET 1
14B-2836A-00-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
35
BRACKET 2
14B-2836E-00-00
Unavailable
36
BOLT, FLANGE
95817-06016-00
Unavailable
37
PLATE, SPRING
5PW-2177L-01-00
Unavailable
38
PANEL, INNER 3
14B-2836M-10-P3
Unavailable
39
DAMPER, LOCATING 1
14B-2836T-00-00
Unavailable
40
DAMPER, PLATE
90520-05011-00
Unavailable
41
COLLAR
90387-08079-00
Unavailable
42
GROMMET
90480-08006-00
Unavailable
43
GROMMET(4FM)
90480-12596-00
Unavailable
44
STOPPER, RUBBER 1
14B-283C1-00-00
Unavailable
45
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
46
RIVET(4PH)
90269-07077-00
Unavailable
47
STAY 1
14B-28321-00-00
Unavailable
48
BOLT, FLANGE
95817-06012-00
Unavailable
49
PANEL, INNER 4
14B-2836N-10-P3
Unavailable
50
SEAL 1
3NU-21732-00-00
Unavailable
51
COLLAR
90387-08079-00
Unavailable
52
GROMMET
90480-08006-00
Unavailable
53
GROMMET(4FM)
90480-12596-00
Unavailable
54
COLLAR
90387-06159-00
Unavailable
55
STOPPER, RUBBER 2
14B-283C2-00-00
Unavailable
56
SEAL 5
4B5-2847F-00-00
Unavailable
57
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
58
RIVET(4PH)
90269-07077-00
Unavailable
