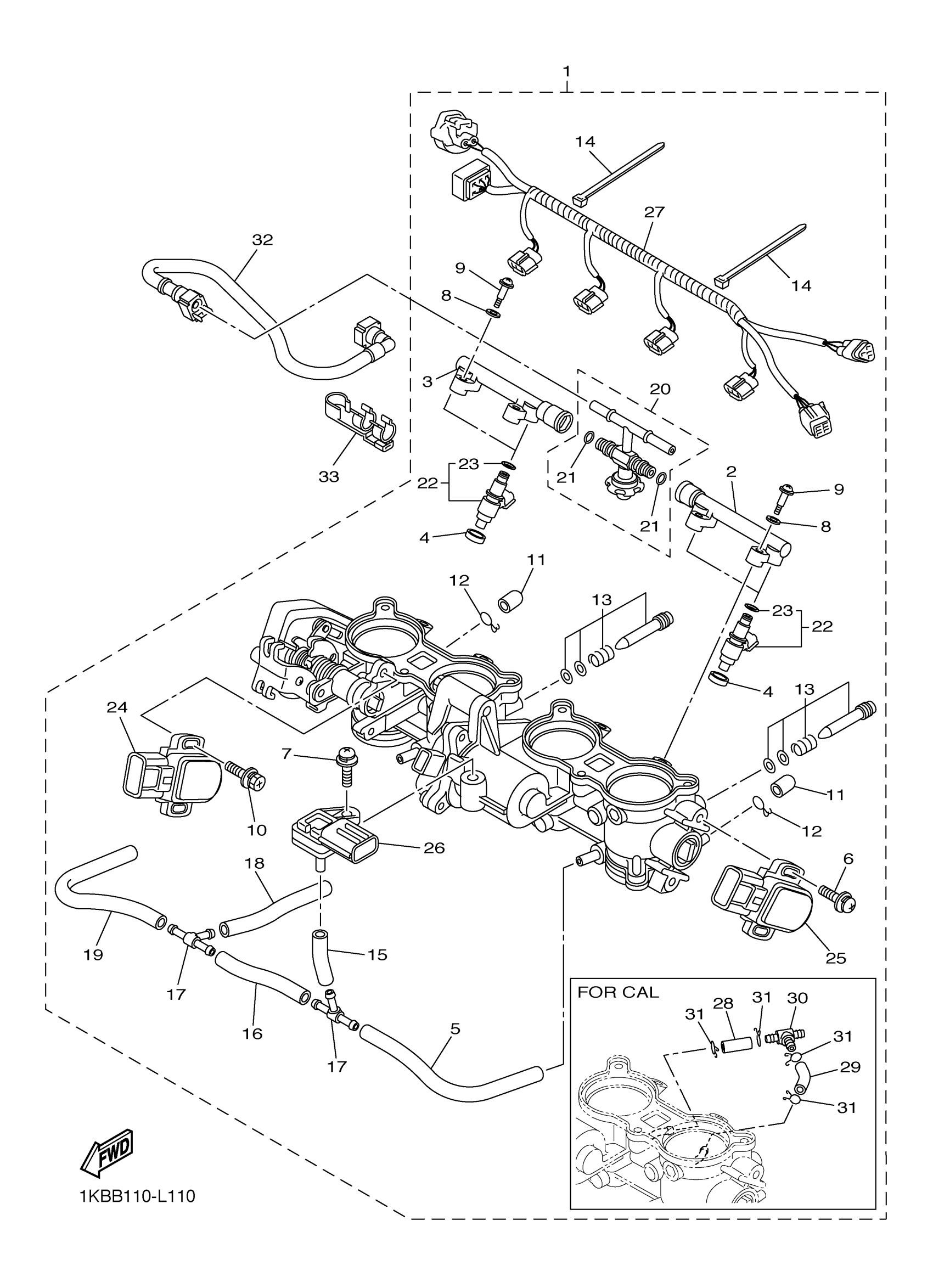

Yamaha YZFR1BL (YZFR1) 1KBB0 2012 INTAKE 2 Diagram
#
Description
Price
1
THROTTLE BODY ASSY
1KB-13750-00-00
Unavailable
2
. PIPE, INL.
14B-1393A-00-00
Unavailable
3
. PIPE, INL. 2
14B-1393B-00-00
Unavailable
16
PIPE, FUEL 1
5JW-24311-00-00
Unavailable
17
. PIPE, JOINT 1
68V-24376-00-00
Unavailable
18
PIPE 1
5JW-14348-00-00
Unavailable
19
PIPE
5PW-14349-00-00
Unavailable
20
JOINT, THROTTLE BODY 1
14B-13795-00-00
Unavailable
21
O-RING
39P-14147-00-00
Unavailable
22
INJECTOR
5S7-13761-00-00
Unavailable
23
O-RING
5PS-14147-00-00
Unavailable
24
ACCELERATOR SENSOR ASSY.
13S-85884-01-00
Unavailable
25
THROTTLE SENSOR AS
13S-85885-01-00
Unavailable
26
SENSOR, PRESSURE
1WS-82380-00-00
Unavailable
27
EXTENSION, WIRE HARNESS
1KB-82386-00-00
Unavailable
32
PIPE, FUEL 1
14B-13971-01-00
Unavailable
33
CLAMP
90464-16005-00
Unavailable
