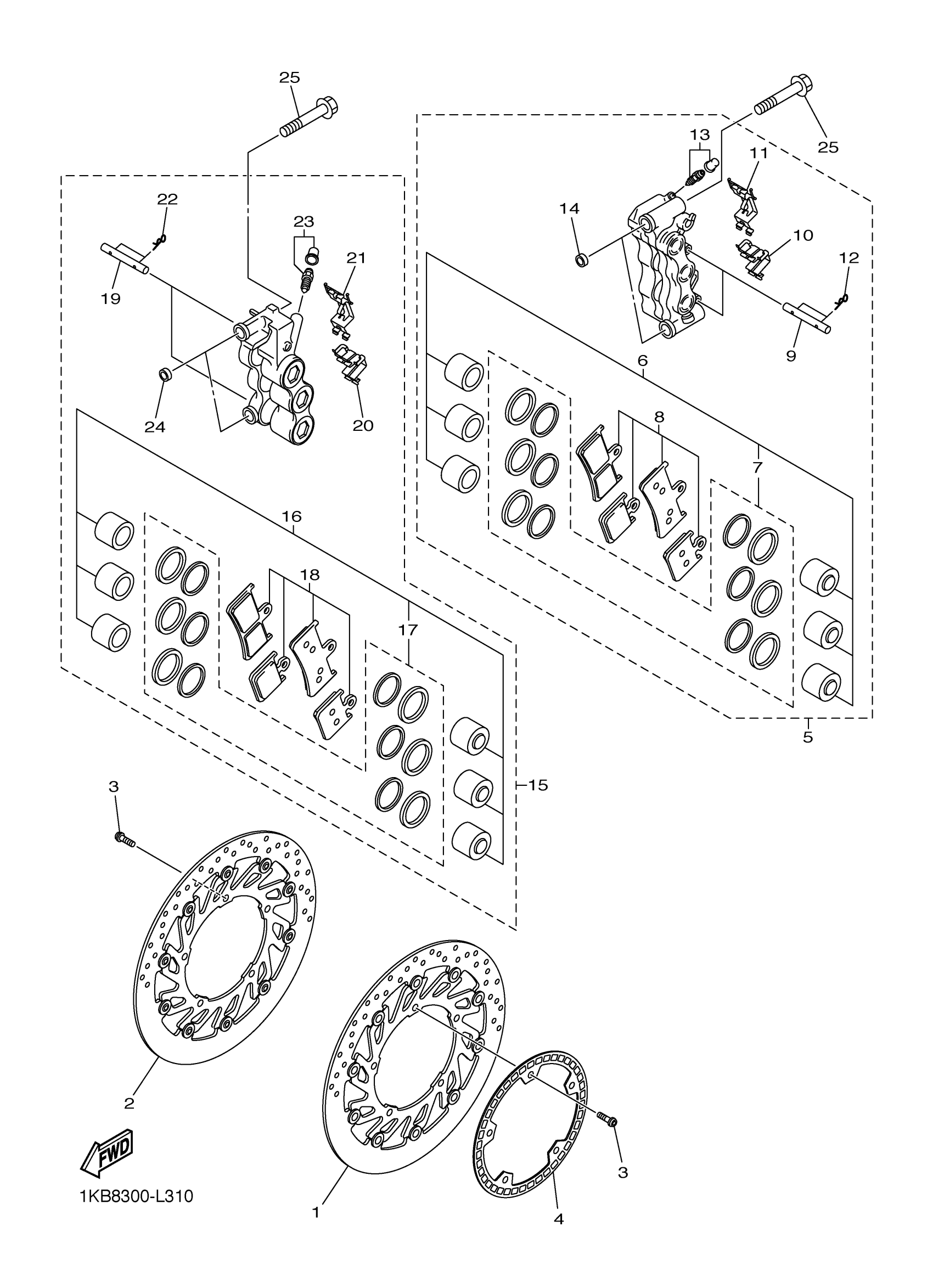

Yamaha YZFR1BL (YZFR1) 1KBB0 2012 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

1KB-2581T-00-00

$341.79

2

DISK BRAKE ASSY (RIGHT)

1KB-2581U-00-00

$211.17

3

SCREW

90149-06045-00

$6.18

4

ROTOR, SENSOR

1KB-2517G-00-00

$39.26

5

CALIPER ASSY (LEFT)

4C8-2580T-10-00

Unavailable

6

PISTON ASSY, CALIPER

4C8-25802-00-00

Unavailable

7

CALIPER SEAL KIT

4C8-25803-00-00

$41.54

8

BRAKE PAD KIT

4C8-25805-00-00

$49.24

9

PIN, PAD

4SV-25924-00-00

$34.81

10

SUPPORT, PAD

4C8-25919-00-00

$7.09

11

SUPPORT, PAD

2S3-25919-10-00

Unavailable

12

CLIP, PAD PIN

3GM-25925-00-00

$9.15

13

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

14

PIN, KNOCK

5VY-2583B-00-00

Unavailable

15

CALIPER ASSY (RIGHT)

4C8-2580U-10-00

$669.99

16

PISTON ASSY, CALIPER

4C8-25802-00-00

Unavailable

17

CALIPER SEAL KIT

4C8-25803-00-00

$41.54

18

BRAKE PAD KIT

4C8-25805-00-00

$49.24

19

PIN, PAD

4SV-25924-00-00

$34.81

20

SUPPORT, PAD

4C8-25919-00-00

$7.09

21

SUPPORT, PAD

2S3-25919-10-00

Unavailable

22

CLIP, PAD PIN

3GM-25925-00-00

$9.15

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

PIN, KNOCK

5VY-2583B-00-00

Unavailable

25

BOLT, FLANGE

90105-10397-00

Unavailable
