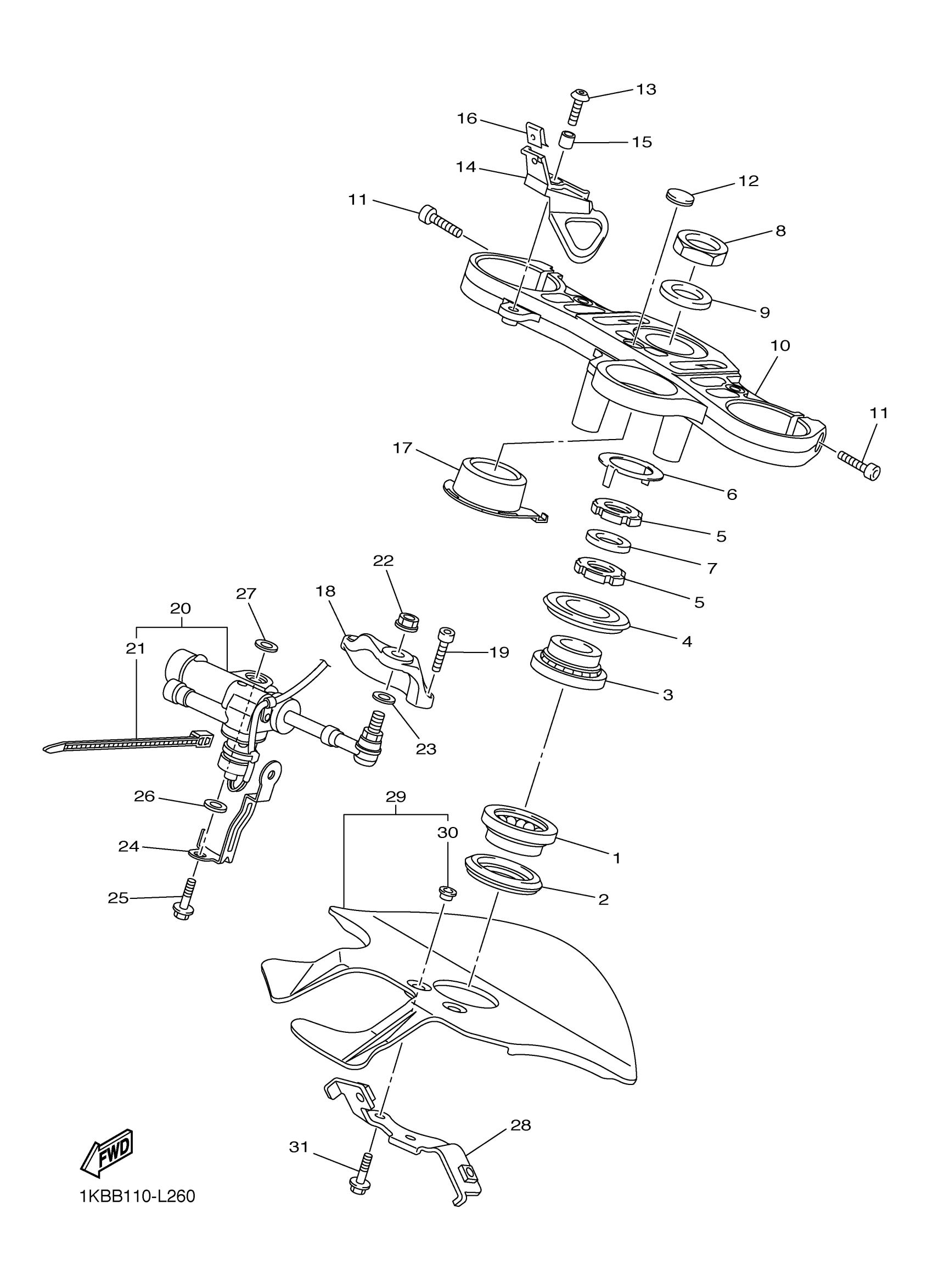

Yamaha YZFR1BGP (YZFR1 WORLD GP 50TH ANNIVERSARY ED) 1KBL 2012 STEERING Diagram

#

Description
Price

1

BEARING

93399-99957-00

$70.99

2

SEAL, STEERING

3FV-23462-00-00

$24.99

3

BEARING(3FV)

93399-99932-00

$63.99

4

COVER, BALL RACE 1

4XV-23415-01-00

$24.99

5

NUT

90179-30691-00

$33.99

6

WASHER, SPECIAL

4XV-23418-00-00

$17.49

7

WASHER, PLATE

90202-30235-00

$8.49

8

NUT

90170-28419-00

$40.99

9

WASHER, PLATE

90201-281U8-00

$11.49

10

CROWN, HANDLE

1KB-23435-00-00

$296.99

11

BOLT,SOCKET

91314-08030-00

$2.34

12

TUNING FORK MARK

5GT-2836B-10-00

$16.49

13

BOLT

90111-06041-00

$8.49

14

STAY

5VY-26292-12-00

Unavailable

15

COLLAR

90387-06057-00

$8.49

16

NUT, SPRING

90183-050A0-00

Unavailable

17

CAP, SWITCH

1KB-82552-00-00

Unavailable

18

STAY, DAMPER

14B-23495-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

20

HANDLEBAR SHIMMY DAMPER ASSY

14B-23490-10-00

Unavailable

21

CLAMP

90464-20022-00

Unavailable

22

NUT, SELF-LOCKING

95602-08200-00

Unavailable

23

WASHER, PLATE

90201-08M09-00

Unavailable

24

GUIDE, CABLE

45B-2331E-00-00

Unavailable

25

BOLT, FLANGE

95817-08035-00

Unavailable

26

WASHER (1T1)

90201-08649-00

Unavailable

27

WASHER

5VY-26398-00-00

Unavailable

28

BRACKET, HORN

14B-23377-20-00

Unavailable

29

STRG, COVER. ASSY

14B-23808-00-00

Unavailable

30

SPACER (25G)

90560-06244-00

Unavailable

31

BOLT, FLANGE

95817-06020-00

Unavailable
