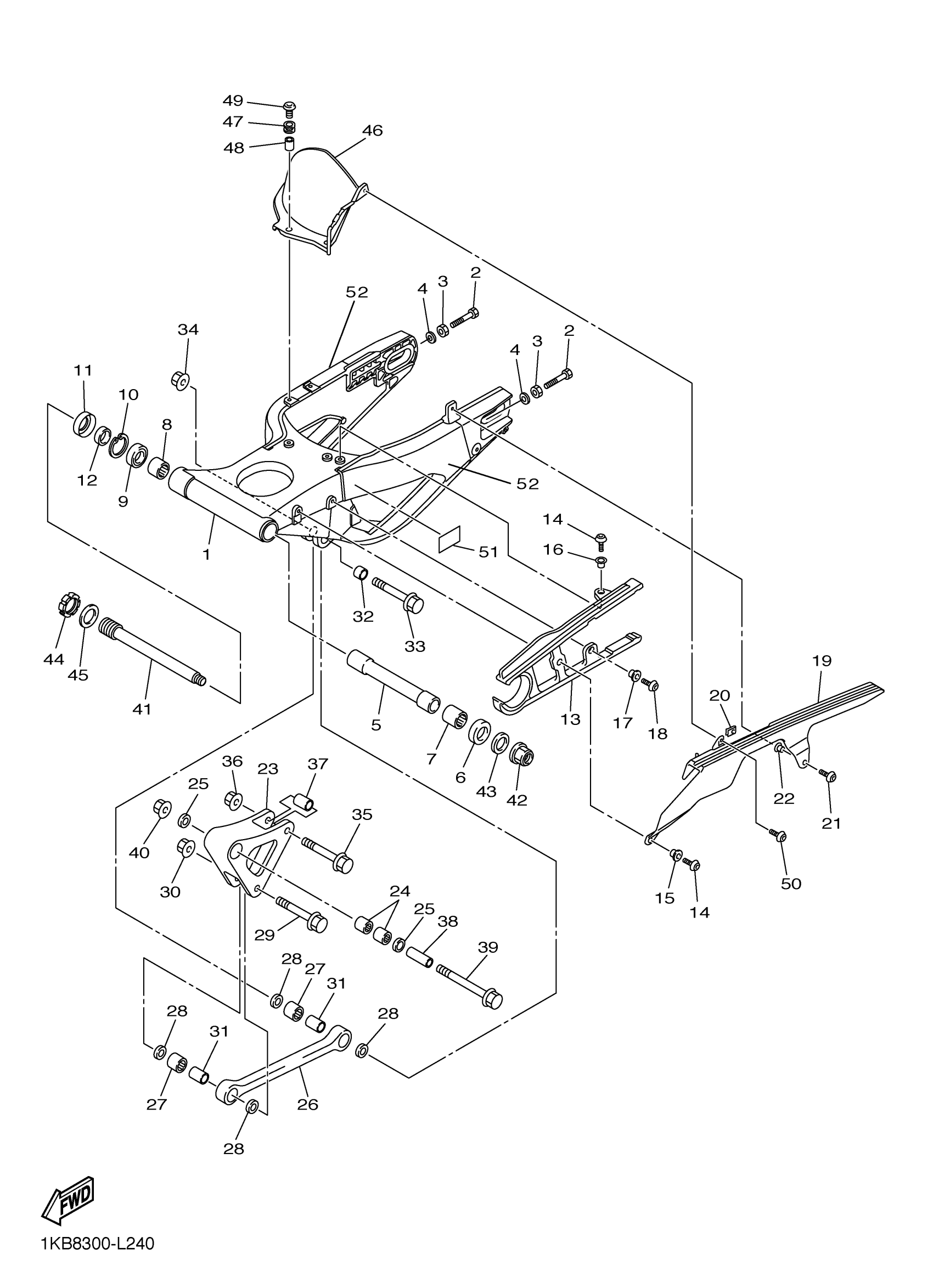

Yamaha YZFR1BGP (YZFR1 WORLD GP 50TH ANNIVERSARY ED) 1KBL 2012 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

14B-22110-00-P0

$1,229.99

2

BOLT

90101-08013-00

$3.35

3

NUT

95302-08600-00

$9.49

4

WASHER, PLATE

90201-08057-00

$7.49

5

BUSH

14B-22184-00-00

Unavailable

6

COVER, THRUST 1

5VY-22128-00-00

$14.49

7

BEARING

93317-52897-00

$58.99

8

BEARING, CYLINDRICAL(6U4)

93317-428U8-00

$42.99

9

BEARING

93306-97202-00

Unavailable

10

CIRCLIP(5U8)

99009-42500-00

$8.49

11

OIL SEAL

93106-28004-00

$9.49

12

COLLAR

90387-22023-00

Unavailable

13

SEAL, GUARD

14B-22151-00-00

$68.99

14

BOLT, BUTTON HEAD

92012-06016-00

$8.49

15

C0LLAR (3JB1)

90387-062X0-00

$20.99

16

COLLAR

90387-06066-00

Unavailable

17

COLLAR

90387-06066-00

Unavailable

18

BOLT, BUTTON HEAD

92012-06016-00

$8.49

19

CASE, CHAIN

14B-22311-01-00

Unavailable

20

NUT, SPRING

90183-050A6-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06083-00

Unavailable

22

COLLAR (3L1)

90387-07717-00

Unavailable

23

ARM, RELAY

1KB-2217A-00-00

Unavailable

24

BEARING

93315-31758-00

Unavailable

25

OIL SEAL

93109-17071-00

Unavailable

26

ARM 1

1KB-2217M-00-00

Unavailable

27

BEARING

93315-31758-00

Unavailable

28

OIL SEAL

93109-17071-00

Unavailable

29

BOLT, WASHER BASED

90105-10017-00

Unavailable

30

NUT, S/L FLANGE

95602-10200-00

Unavailable

31

COLLAR

90387-1012A-00

Unavailable

32

COLLAR

90387-1013U-00

Unavailable

33

BOLT, WASHER BASED

90105-10018-00

Unavailable

34

NUT, S/L FLANGE

95602-10200-00

Unavailable

35

BOLT, WASHER BASED

90105-10017-00

Unavailable

36

NUT, S/L FLANGE

95602-10200-00

Unavailable

37

COLLAR

90387-1012A-00

Unavailable

38

COLLAR

90387-10034-00

Unavailable

39

BOLT, FLANGE

90105-10150-00

Unavailable

40

NUT, S/L FLANGE

95602-10200-00

Unavailable

41

SHAFT, PIVOT

14B-22141-00-00

Unavailable

42

NUT, SELF-LOCKING

90185-20008-00

Unavailable

43

WASHER, PLATE

90201-20026-00

Unavailable

44

NUT

4C8-22252-00-00

Unavailable

45

WASHER, PLATE

90201-30016-00

Unavailable

46

REAR FENDER COMP.

14B-21650-00-00

Unavailable

47

GROMMET

90480-12005-00

Unavailable

48

COLLAR

90387-06057-00

Unavailable

49

SCREW(4DN)

90149-06302-00

Unavailable

50

BOLT

90111-05002-00

Unavailable

51

LABEL, TIRE

14B-21668-01-00

Unavailable

52

EMBLEM

1KB-22180-00-00

Unavailable
