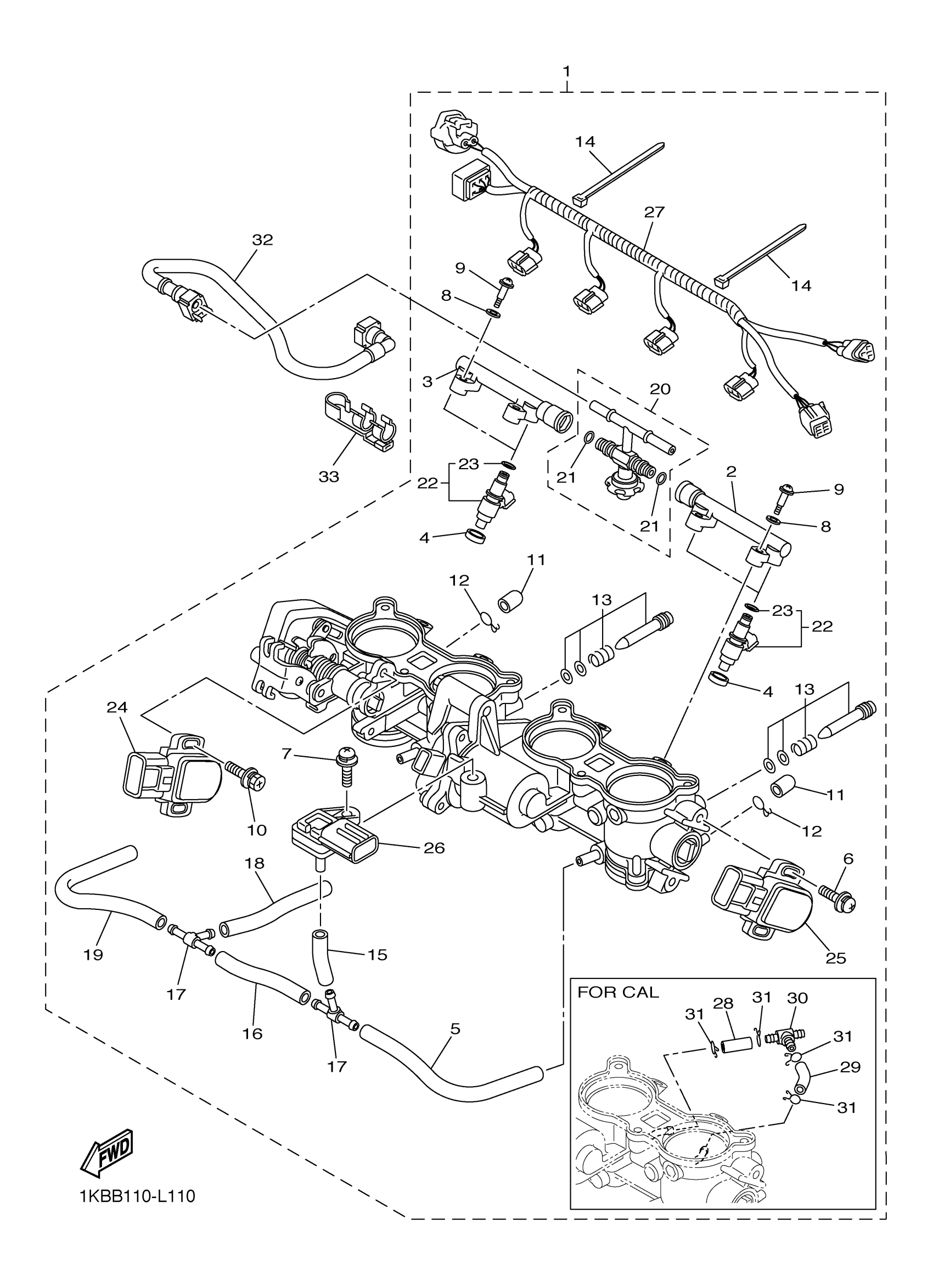

Yamaha YZFR1BGP (YZFR1 WORLD GP 50TH ANNIVERSARY ED) 1KBL 2012 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

1KB-13750-10-00

Unavailable

2

. PIPE, INL.

14B-1393A-00-00

Unavailable

3

. PIPE, INL. 2

14B-1393B-00-00

Unavailable

4

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

5

PIPE

5PW-14396-00-00

$11.99

6

SCREW

8CC-14216-10-00

$7.99

7

SCREW

2C0-14216-00-00

$3.28

8

GASKET

363-14198-00-00

$10.99

9

BOLT 1

14B-13573-00-00

$6.99

10

SCREW

5FL-14216-00-00

$6.99

11

CAP

895-14169-00-00

$5.49

12

CLIP, PIPE

8A7-14139-00-00

$8.99

13

PILOT SCREW SET

2C0-14105-00-00

$34.99

14

CLIP

4KM-14137-00-00

$5.49

15

PIPE 1

5FL-14348-10-00

$5.49

16

PIPE, FUEL 1

5JW-24311-00-00

Unavailable

17

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

18

PIPE 1

5JW-14348-00-00

Unavailable

19

PIPE

5PW-14349-00-00

Unavailable

20

JOINT, THROTTLE BODY 1

14B-13795-00-00

Unavailable

21

O-RING

39P-14147-00-00

Unavailable

22

INJECTOR

5S7-13761-00-00

Unavailable

23

O-RING

5PS-14147-00-00

Unavailable

24

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

Unavailable

25

THROTTLE SENSOR AS

13S-85885-01-00

Unavailable

26

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

27

EXTENSION, WIRE HARNESS

1KB-82386-00-00

Unavailable

28

PIPE

14B-14465-00-00

Unavailable

29

PIPE

14B-14466-00-00

Unavailable

30

WAY 3

90413-06031-00

Unavailable

31

CLIP

90467-100A1-00

Unavailable

32

PIPE, FUEL 1

14B-13971-01-00

Unavailable

33

CLAMP

90464-16005-00

Unavailable
