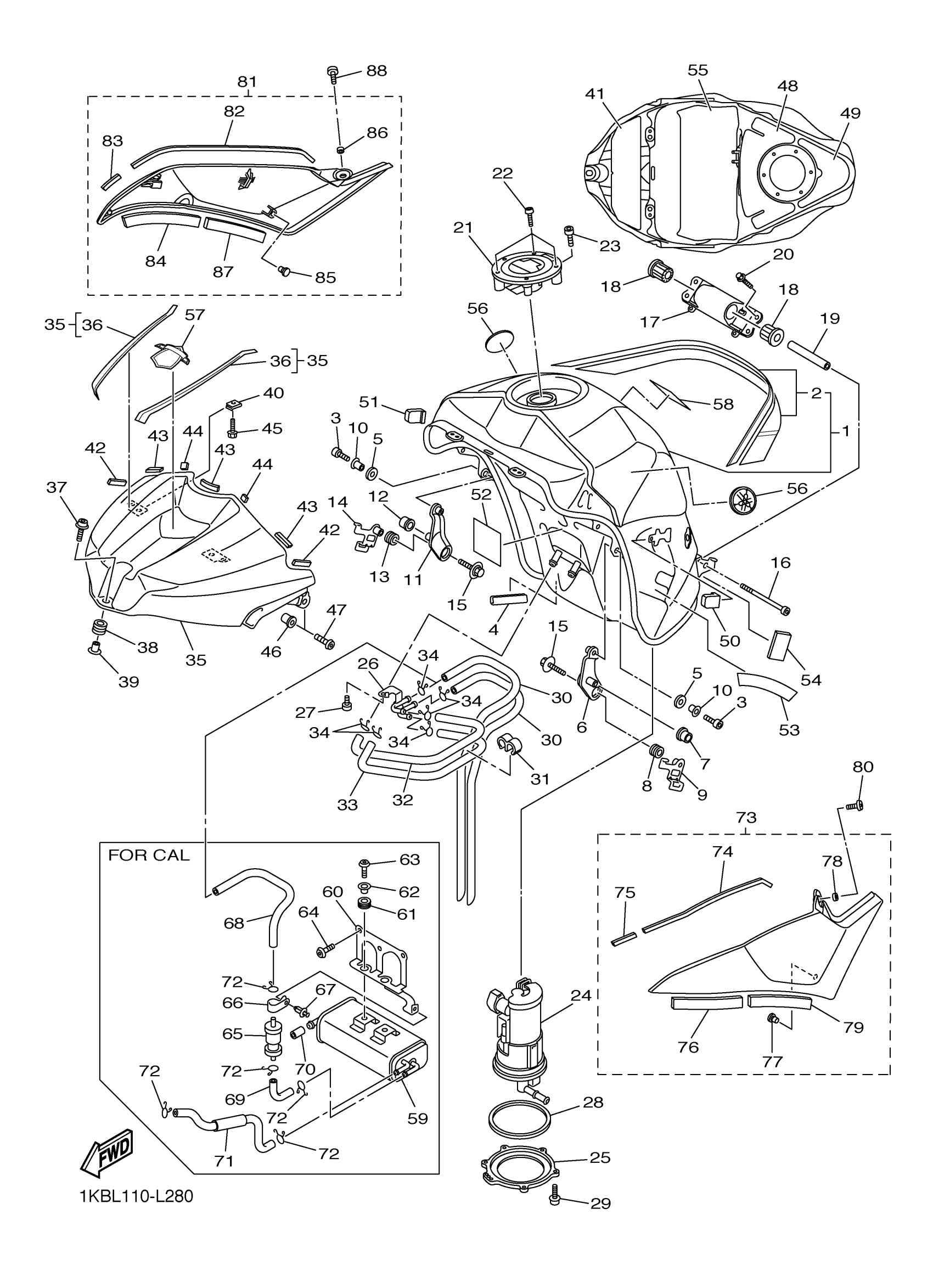

Yamaha YZFR1BGP (YZFR1 WORLD GP 50TH ANNIVERSARY ED) 1KBL 2012 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK ASSY

14B-W2410-01-05

Unavailable

2

GRAPHIC SET

1KB-24240-10-00

Unavailable

3

BOLT(3MA)

91312-06016-00

$5.60

4

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

5

DAMPER, LOCATING 3

5VY-24183-00-00

$7.99

6

BRACKET, FUEL TANK 1

14B-24191-10-00

Unavailable

7

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

8

GROMMET(3XV)

90480-10542-00

Unavailable

9

HOLDER, CABLE

14B-21161-00-00

$14.49

10

COLLAR

90387-06143-00

$7.49

11

BRACKET, FUEL TANK 2

14B-24192-10-00

Unavailable

12

DAMPER, LOCATING 1

5VY-24181-00-00

$7.99

13

GROMMET(3XV)

90480-10542-00

Unavailable

14

HOLDER, CLUTCH CABLE

14B-21162-00-00

$28.99

15

BOLT, WITH WASHER

90119-06262-00

$8.49

16

BOLT, HEXAGON SOCKET HEAD

90110-06378-00

Unavailable

17

BRACKET, TANK FITTING

14B-2413Y-10-00

Unavailable

18

DAMPER, LOCATING 3

5SL-24183-00-00

Unavailable

19

COLLAR

90387-06055-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

21

CAP ASSY

39P-24602-00-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

23

BOLT

91312-05010-00

Unavailable

24

FUEL PUMP COMP.

14B-13907-23-00

Unavailable

25

BRACKET, FUEL PUMP

13S-24491-00-00

Unavailable

26

CLAMP 1

14B-24135-00-00

Unavailable

27

BOLT

91312-05008-00

Unavailable

28

O-RING

19B-24486-01-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

30

PIPE 2

14B-24312-00-00

Unavailable

31

CLAMP(6M7)

90464-09M31-00

Unavailable

32

PIPE 3

14B-24313-10-00

Unavailable

33

PIPE 4

14B-24314-00-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable

35

COVER, TOP

14B-Y210A-10-1X

Unavailable

36

GRAPHIC SET 1

1KB-24230-10-00

Unavailable

37

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

38

GROMMET

90480-12023-00

Unavailable

39

COLLAR

90387-06203-00

Unavailable

40

NUT, SPRING(3YX)

90183-05074-00

Unavailable

41

DAMPER, PLATE 1

14B-2414H-00-00

Unavailable

42

DAMPER, LOCATING 2

4C8-24182-00-00

Unavailable

43

DAMPER, LOCATING 1

3XV-21778-00-00

Unavailable

44

DAMPER, LOCATING 1

14B-24181-00-00

Unavailable

45

BOLT, WITH WASHER

90119-05015-00

Unavailable

46

NUT(1KT)

90179-05523-00

Unavailable

47

SCREW, BIND

98902-05014-00

Unavailable

48

DAMPER, PLATE 4

14B-2414N-20-00

Unavailable

49

DAMPER, PLATE 5

14B-2414P-20-00

Unavailable

50

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

51

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

52

DAMPER

5VU-21747-00-00

Unavailable

53

DAMPER, PLATE 3

14B-2414K-10-00

Unavailable

54

SEAL

14B-2414G-00-00

Unavailable

55

DAMPER, PLATE

90520-08002-00

Unavailable

56

EMBLEM

5SL-2413B-10-00

Unavailable

57

EMBLEM

1KB-2416B-01-00

Unavailable

58

LABEL, CAUTION

4C8-2118K-00-00

Unavailable

59

CANISTER ASSY

14B-24170-00-00

Unavailable

60

BRACKET, CANISTOR

14B-2419F-00-00

Unavailable

61

GROMMET (462)

90480-13018-00

Unavailable

62

COLLAR(42G)

90387-062L2-00

Unavailable

63

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

64

BOLT,HEX. SOCKET BUTTON

90111-06140-00

Unavailable

65

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

66

CLAMP

90464-15014-00

Unavailable

67

RIVET

90269-05001-00

Unavailable

68

PIPE 5

14B-24315-00-00

Unavailable

69

PIPE 6

14B-24316-00-00

Unavailable

70

HOSE (L70)

90445-112E0-00

Unavailable

71

PIPE

14B-1443J-00-00

Unavailable

72

CLIP

90467-090A2-00

Unavailable

73

TANK SIDE COVER ASSY 1

14B-24106-10-00

Unavailable

74

DAMPER, PLATE 1

2C0-2414H-00-00

Unavailable

75

DAMPER, PLATE 2

14B-2414J-00-00

Unavailable

76

DAMPER, PLATE 2

2C0-2414J-00-00

Unavailable

77

PLUG(1NL)

90338-07180-00

Unavailable

78

SPACER(7YL)

90560-05N33-00

Unavailable

79

DAMPER, PLATE

90520-10005-00

Unavailable

80

SCREW, BIND

98902-05008-00

Unavailable

81

TANK SIDE COVER ASSY 2

14B-24108-10-00

Unavailable

82

DAMPER, PLATE 1

2C0-2414H-00-00

Unavailable

83

DAMPER, PLATE 2

14B-2414J-00-00

Unavailable

84

DAMPER, PLATE 2

2C0-2414J-00-00

Unavailable

85

PLUG(1NL)

90338-07180-00

Unavailable

86

SPACER(7YL)

90560-05N33-00

Unavailable

87

DAMPER, PLATE

90520-10005-00

Unavailable

88

SCREW, BIND

98902-05008-00
