Description

Price

1

SINGLE SEAT ASSY

14B-24710-01-00

$121.99

2

COVER, SINGLE SEAT

14B-24711-01-00

$91.99

3

BOLT, HEXAGON SOCKET HEAD

90110-06258-00

$9.49

4

TANDEM SEAT ASSY

14B-24750-01-00

Unavailable

5

DAMPER, SEAT

5SL-24723-00-00

$6.99

6

SEAT LOCK ASSY

14B-24780-00-00

$66.99

7

PLATE

2C0-24792-00-00

$40.99

8

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

9

SPACER 1

14B-24725-00-00

$5.49

10

SPACER 1

13S-24725-00-00

$6.99

11

HOLDER 1

13S-24847-00-00

$7.99

12

CABLE, SEAT LOCK

14B-2478E-00-00

$23.99

13

ROTOR SET

5VY-W2470-00-00

Unavailable

14

STAY, LOCK

5VY-2117K-01-00

$7.99

15

SPRING, LOCK 2

5VY-2176V-00-00

$11.99

16

COLLAR

90387-06066-00

Unavailable

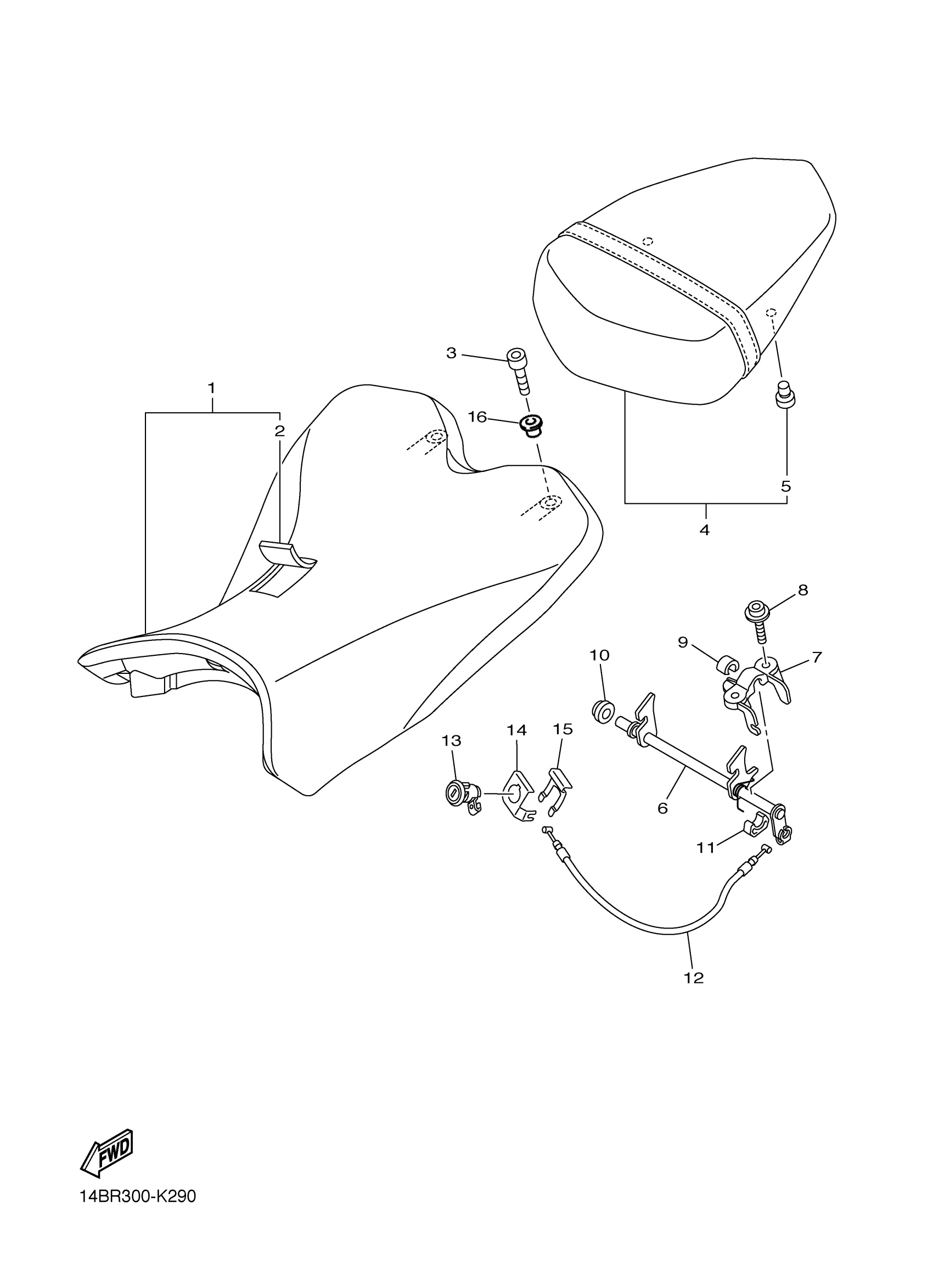

Yamaha YZFR1AR (YZFR1) 1KB5 2011 SEAT Diagram

SINGLE SEAT ASSY

COVER, SINGLE SEAT

BOLT, HEXAGON SOCKET HEAD

TANDEM SEAT ASSY

DAMPER, SEAT

SEAT LOCK ASSY

PLATE

BOLT, HEXAGON SOCKET HEAD

SPACER 1

SPACER 1

HOLDER 1

CABLE, SEAT LOCK

ROTOR SET

STAY, LOCK

SPRING, LOCK 2

COLLAR
