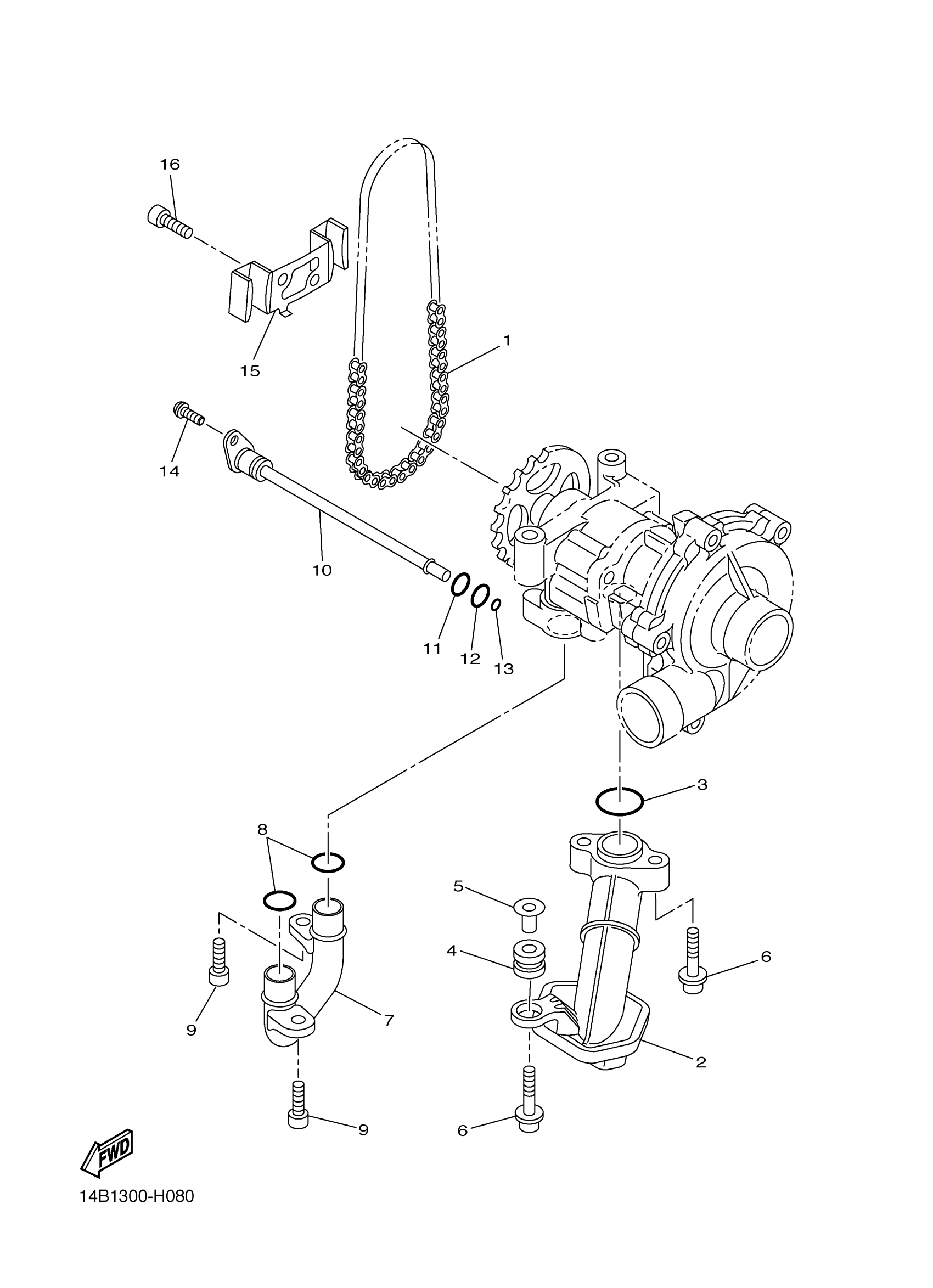

Yamaha YZFR1AR (YZFR1) 1KB5 2011 OIL PUMP Diagram

#

Description
Price

1

CHAIN

94580-31082-00

$28.99

2

STRAINER HOUSING ASSY

14B-13410-00-00

$72.99

3

O-RING

93210-22M93-00

Unavailable

4

GROMMET

90480-13010-00

$7.49

5

COLLAR, DISTANCE

5VY-13117-10-00

$8.99

6

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

7

PIPE, OIL 1

14B-13416-00-00

Unavailable

8

O-RING

93210-14003-00

$8.49

9

BOLT,SOCKET

91317-06012-00

$8.49

10

PIPE, DELIVERY 5

14B-1316E-00-00

Unavailable

11

O-RING

93210-12010-00

$8.49

12

O-RING (5Y1)

93210-09525-00

$5.60

13

O-RING(26H)

93210-06667-00

$7.49

14

SCREW

90149-06156-00

$8.49

15

HOLDER

14B-13898-00-00

$34.99

16

BOLT,SOCKET

91317-06012-00

$8.49
