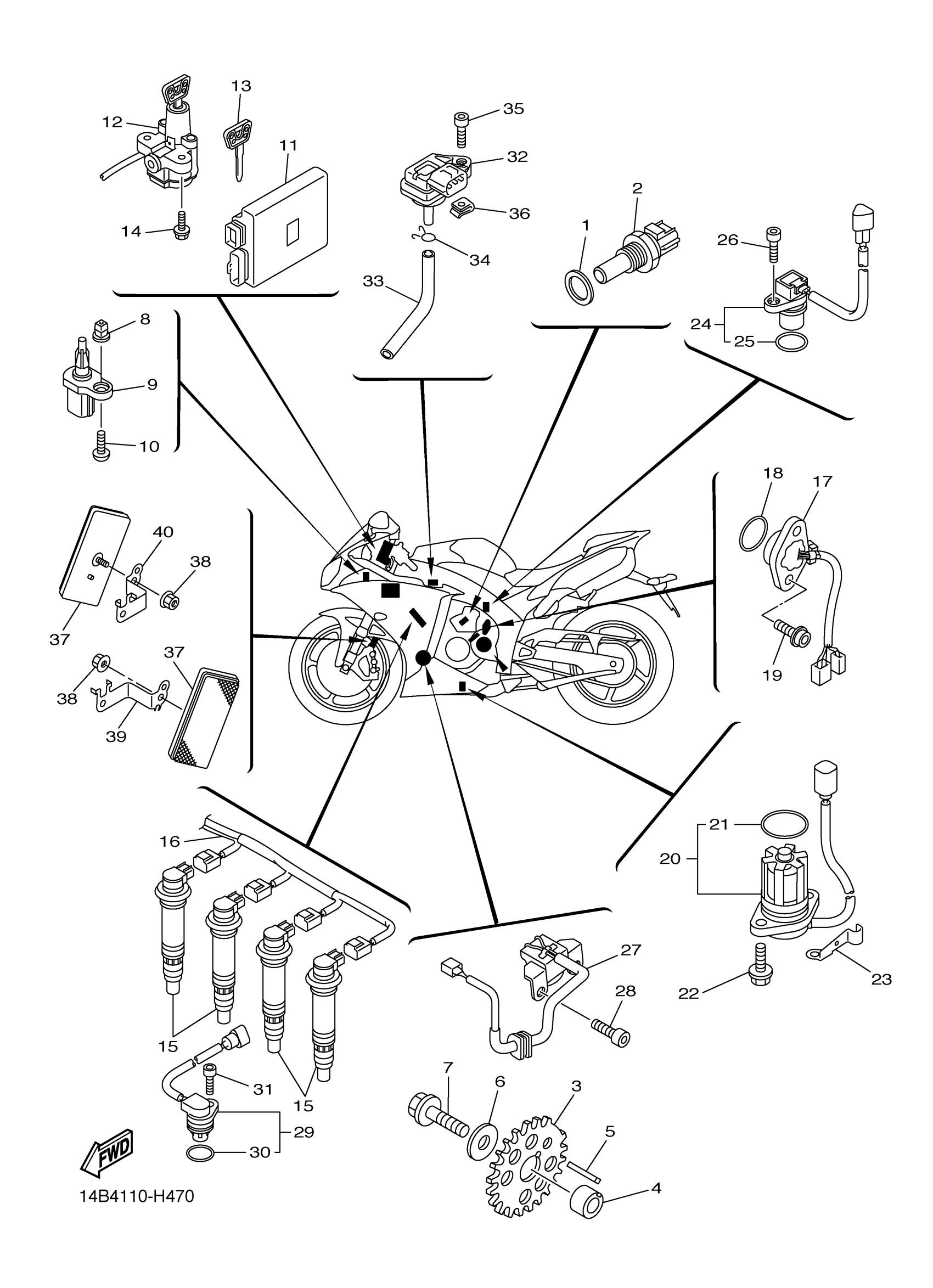

Yamaha YZFR1AR (YZFR1) 1KB5 2011 ELECTRICAL 1 Diagram

WASHER, PLATE

90201-12790-00

$9.49

THERMOSENSOR ASSY

8CC-85790-01-00

$95.99

ROTOR

14B-81673-00-00

Unavailable

COLLAR

90387-11006-00

Unavailable

KEY, STRAIGHT

90282-03005-00

Unavailable

WASHER, PLATE

90201-10034-00

$7.49

BOLT (30X)

90105-10290-00

Unavailable

GROMMET

90480-08005-00

$8.49

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

SCREW, TAPPING

97702-50016-00

$2.39

ECU

14B-8591A-21-00

Unavailable

MAIN SWITCH STEERING LOCK

14B-82501-41-00

$146.99

BLANK KEY

4BH-82511-09-00

$30.99

BOLT

90109-08196-00

$8.49

IGNITION COIL ASSY

14B-82310-00-00

Unavailable

WIRE, SUB LEAD

14B-82309-00-00

Unavailable

NEUTRAL SWITCH ASSY

14B-82540-02-00

Unavailable

O-RING

93210-21001-00

Unavailable

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

Unavailable

OIL LEVEL GAUGE ASSY

14B-85720-00-00

Unavailable

O-RING

5VY-8A8E0-00-00

Unavailable

BOLT, FLANGE

95022-06016-00

Unavailable

CLAMP

90465-08053-00

Unavailable

SENSOR, SPEED

14B-83755-01-00

Unavailable

O-RING

4D9-81168-00-00

Unavailable

BOLT,SOCKET

91317-06016-00

Unavailable

PICK-UP ASSY

14B-81670-01-00

Unavailable

BOLT (33M)

91312-06014-00

Unavailable

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

O-RING

4D9-81168-00-00

Unavailable

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

HOSE

90445-08028-00

Unavailable

CLIP (16G)

90467-08021-00

Unavailable

BOLT, SOCKET

91317-05020-00

Unavailable

NUT, SPRING

90183-050A6-00

Unavailable

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

BRACKET, REFLECTOR 1

14B-85112-00-00

Unavailable

BRACKET, REFLECTOR 2

14B-85122-00-00

Unavailable
