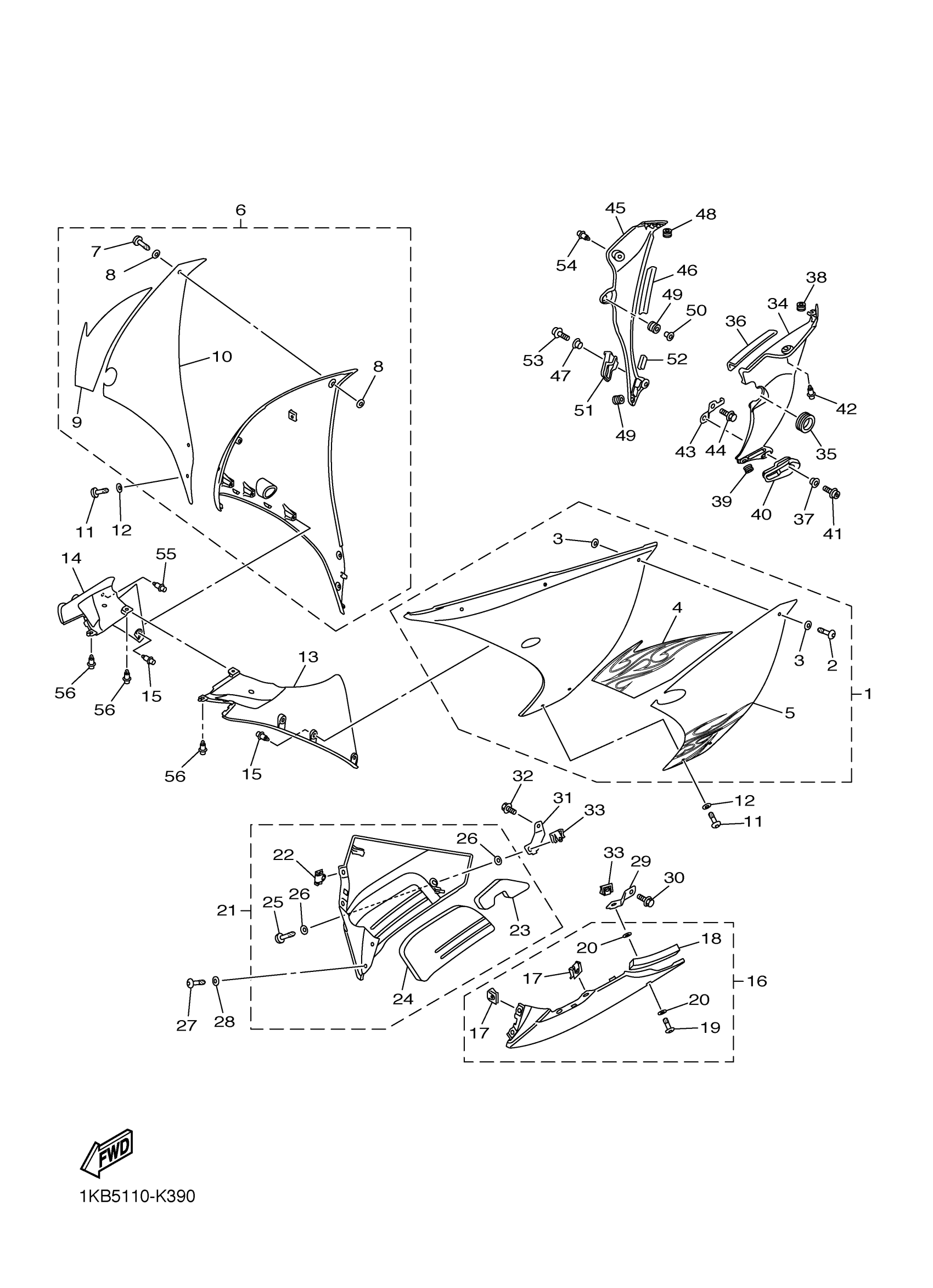

Yamaha YZFR1AR (YZFR1) 1KB5 2011 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
14B-W283U-P0-P3
Unavailable
4
GRAPHIC, 1
1KB-28391-10-00
Unavailable
5
. GRAPHIC, 3
1KB-28393-10-00
Unavailable
6
PANEL ASSY 2
14B-W283V-P0-P3
Unavailable
9
GRAPHIC, 2
1KB-28392-10-00
Unavailable
10
GRAPHIC, 4
1KB-28394-10-00
Unavailable
16
COVER ASSY, UNDER
14B-Y2808-V0-P7
Unavailable
17
PLATE, SPRING
5PW-2177L-01-00
Unavailable
18
DAMPER, PLATE
90520-30004-00
Unavailable
21
COVER ASSY 2, UNDER
14B-Y2809-V0-P7
Unavailable
22
PLATE, SPRING
5PW-2177L-01-00
Unavailable
23
DAMPER
14B-28371-10-00
Unavailable
24
SEAT 4
14B-2848M-10-00
Unavailable
29
BRACKET 1
14B-2836A-00-00
Unavailable
30
BOLT, FLANGE
95817-06016-00
Unavailable
31
BRACKET 2
14B-2836E-00-00
Unavailable
32
BOLT, FLANGE
95817-06016-00
Unavailable
33
PLATE, SPRING
5PW-2177L-01-00
Unavailable
34
PANEL, INNER 3
14B-2836M-10-P3
Unavailable
35
DAMPER, LOCATING 1
14B-2836T-00-00
Unavailable
36
DAMPER, PLATE
90520-05011-00
Unavailable
37
COLLAR
90387-08079-00
Unavailable
38
GROMMET
90480-08006-00
Unavailable
39
GROMMET(4FM)
90480-12596-00
Unavailable
40
STOPPER, RUBBER 1
14B-283C1-00-00
Unavailable
41
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
42
RIVET(4PH)
90269-07077-00
Unavailable
43
STAY 1
14B-28321-00-00
Unavailable
44
BOLT, FLANGE
95817-06012-00
Unavailable
45
PANEL, INNER 4
14B-2836N-10-P3
Unavailable
46
SEAL 1
3NU-21732-00-00
Unavailable
47
COLLAR
90387-08079-00
Unavailable
48
GROMMET
90480-08006-00
Unavailable
49
GROMMET(4FM)
90480-12596-00
Unavailable
50
COLLAR
90387-06159-00
Unavailable
51
STOPPER, RUBBER 2
14B-283C2-00-00
Unavailable
52
SEAL 5
4B5-2847F-00-00
Unavailable
53
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
54
RIVET(4PH)
90269-07077-00
Unavailable
