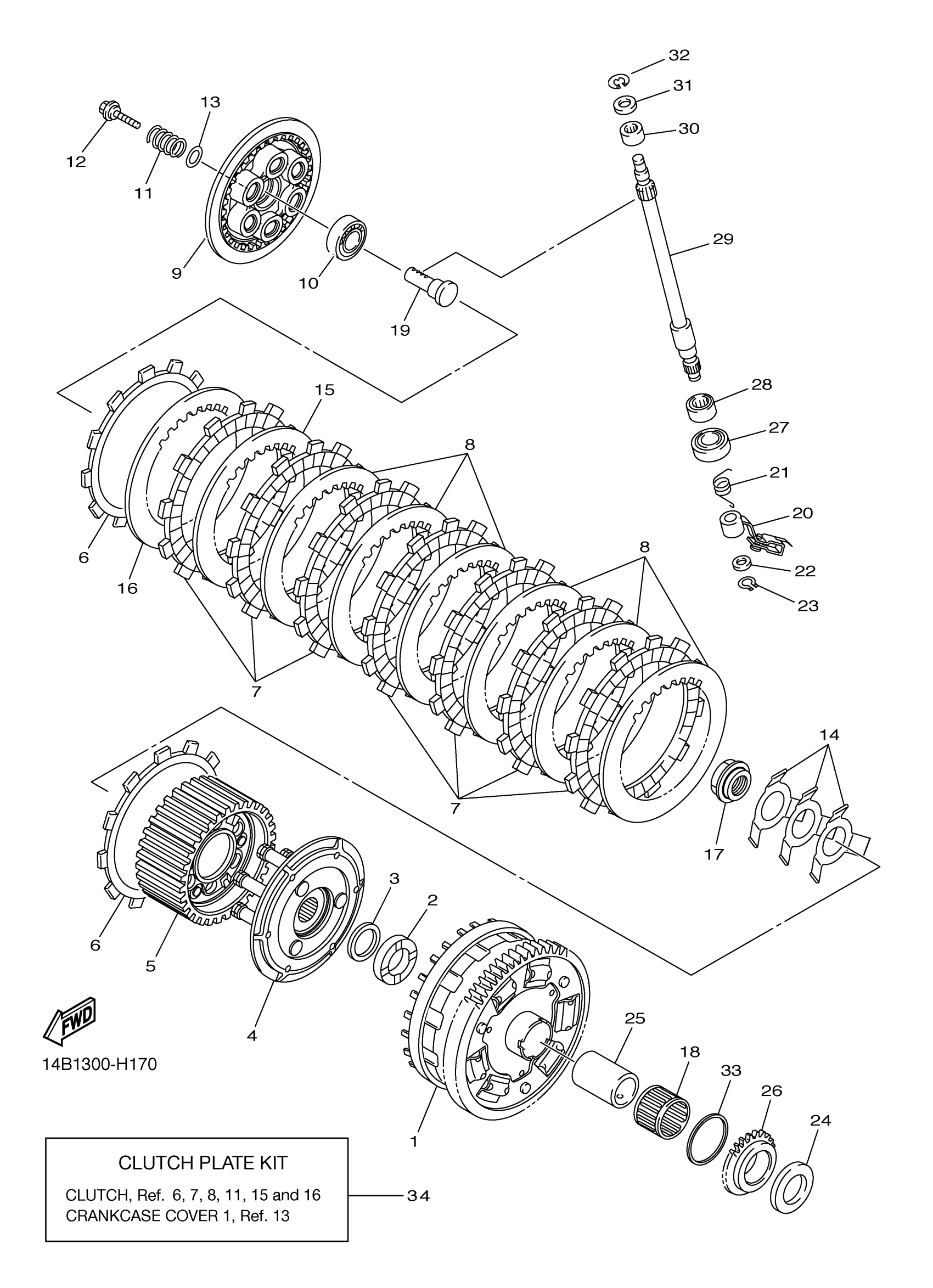

Yamaha YZFR1AR (YZFR1) 1KB5 2011 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

14B-16150-20-00

$668.99

2

PLATE, THRUST 1

4C8-16154-00-00

Unavailable

3

WASHER, CONICAL SPRING

90208-25002-00

Unavailable

4

PRESSURE PLATE ASSY 2

1KB-16360-00-00

$421.99

5

CLUTCH BOSS ASSY

1KB-16370-10-00

$383.99

6

PLATE, FRICTION 2

14B-16330-00-00

Unavailable

7

PLATE, FRICTION

5VY-16321-00-00

$31.99

8

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

9

PLATE, PRESSURE 1

14B-16351-00-00

$94.99

10

BEARING(2JN)

93306-00315-00

$33.99

11

SPRING, COMPRESSION

90501-240A2-00

Unavailable

12

SCREW, WITH WASHER

90159-06026-00

$7.49

13

PLATE, SEAT

14B-16384-00-00

$6.99

14

SPRING

2S3-16539-01-00

$17.49

15

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

15

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

16

PLATE, CLUTCH 1

BR9-16324-10-00

Unavailable

16

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

16

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

17

NUT, LOCK

4C8-16377-00-00

Unavailable

18

BEARING

93310-23168-00

Unavailable

19

ROD, PUSH 1

4XV-16356-01-00

Unavailable

20

PUSH LEVER ASSY

14B-16340-00-00

Unavailable

21

SPRING, TORSION

90508-16041-00

Unavailable

22

WASHER, PLATE

90201-10029-00

Unavailable

23

CIRCLIP(10W)

99009-10400-00

Unavailable

24

PLATE, THRUST

363-16154-00-00

Unavailable

25

SPACER 1

14B-16181-00-00

Unavailable

26

SPROKET, DRIVE

14B-13354-01-00

Unavailable

27

OIL SEAL (3X3)

93102-15212-00

Unavailable

28

BEARING

93315-21570-00

Unavailable

29

AXLE, PUSH LEVER

5VY-16382-10-00

Unavailable

30

BEARING

93317-11096-00

Unavailable

31

WASHER(6TA)

92907-08600-00

Unavailable

32

CIRCLIP

99080-07600-00

Unavailable

33

WASHER, PLATE

90201-44008-00

Unavailable

34

CLUTCH PLATE KIT

14B-W001G-00-00

Unavailable
