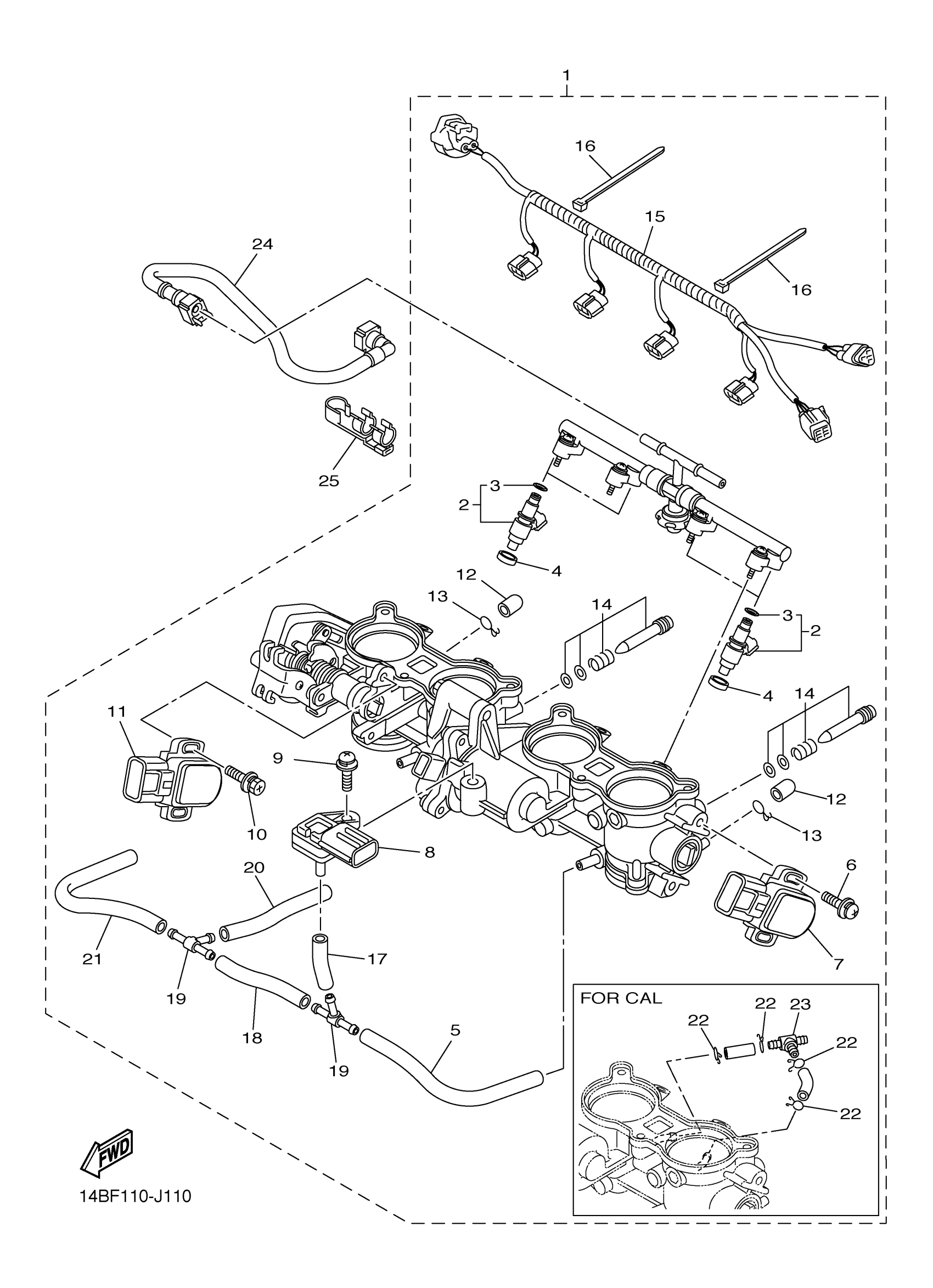

Yamaha YZFR1AL (YZFR1) 1KB10 2011 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

14B-13750-00-00

Unavailable

2

INJECTOR

14B-13761-00-00

Unavailable

3

O-RING

5PS-14147-00-00

$13.49

4

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

5

PIPE

5PW-14396-00-00

$11.99

6

SCREW

8CC-14216-10-00

$7.99

7

THROTTLE SENSOR AS

13S-85885-01-00

$138.99

8

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

9

SCREW

2C0-14216-00-00

$3.28

10

SCREW

5FL-14216-00-00

$6.99

11

ACCELERATOR SENSOR ASSY.

13S-85884-01-00

$210.99

12

CAP

895-14169-00-00

$5.49

13

CLIP, PIPE

8A7-14139-00-00

$8.99

14

PILOT SCREW SET

2C0-14105-00-00

$34.99

15

EXTENSION, WIRE HARNESS

14B-82386-00-00

Unavailable

16

CLIP

4KM-14137-00-00

Unavailable

17

PIPE 1

5FL-14348-10-00

Unavailable

18

PIPE, FUEL 1

5JW-24311-00-00

Unavailable

19

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

20

PIPE 1

5JW-14348-00-00

Unavailable

21

PIPE

5PW-14349-00-00

Unavailable

24

PIPE, FUEL 1

14B-13971-01-00

Unavailable

25

CLAMP

90464-16005-00

Unavailable
