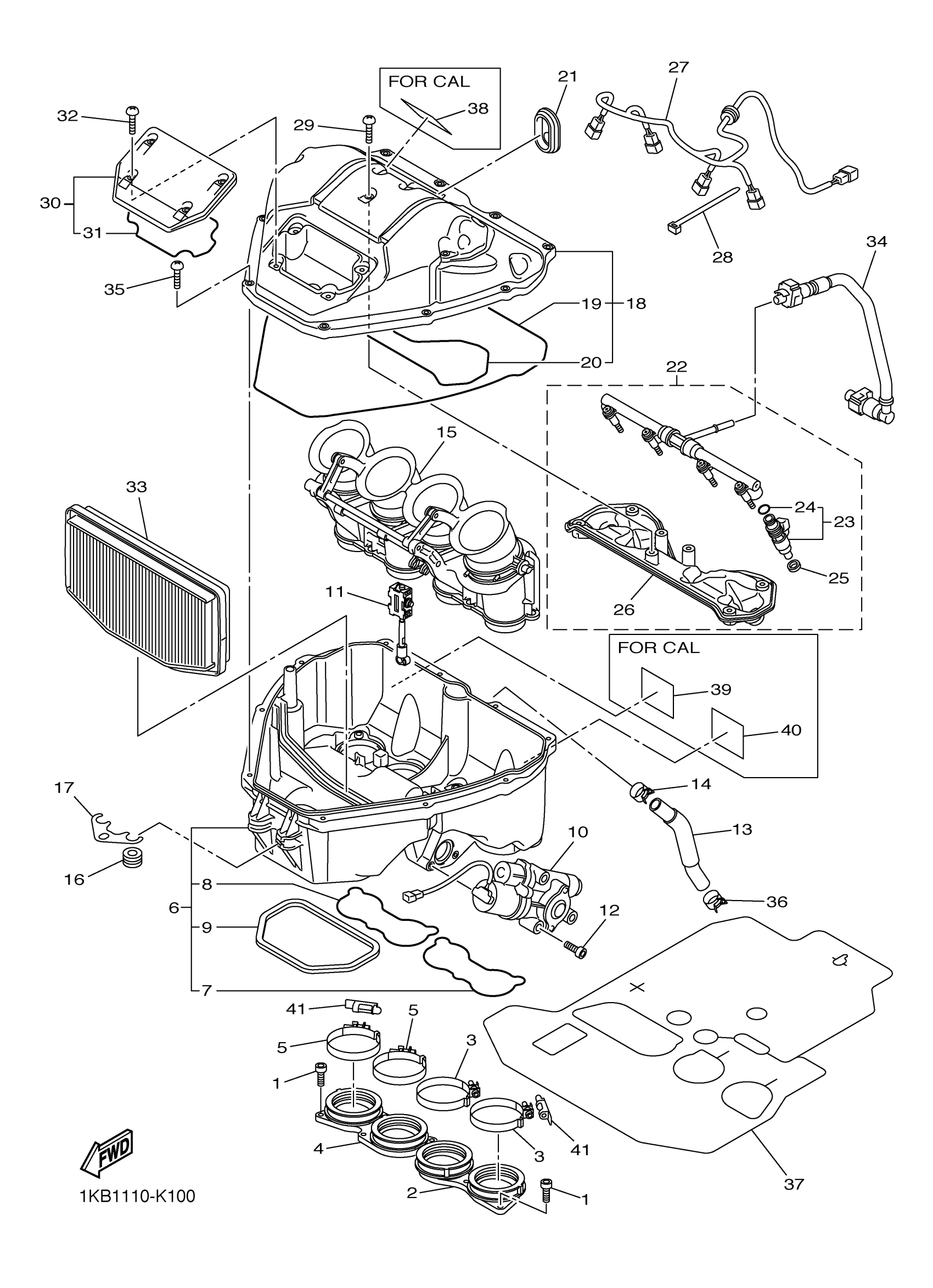

Yamaha YZFR1AL (YZFR1) 1KB10 2011 INTAKE Diagram
#
2
JOINT
14B-13595-00-00
Unavailable
4
JOINT, CARBURETOR 2
14B-13596-00-00
Unavailable
7
SEAL
14B-14457-00-00
Unavailable
8
SEAL
14B-14462-00-00
Unavailable
10
GEARED MOTOR COMP. 2
14B-85870-01-00
Unavailable
11
SHAFT ASSY
14B-14490-00-00
Unavailable
12
BOLT, HEXAGON SOCKET HEAD
90110-05045-00
Unavailable
14
CLIP
90467-160A2-00
Unavailable
15
JOINT ASSY
14B-1440B-00-00
Unavailable
16
GROMMET
14B-14445-00-00
Unavailable
17
STAY 1
14B-14498-00-00
Unavailable
18
CASE, AIR CLEANER 2
14B-14421-01-00
Unavailable
19
SEAL
14B-14452-00-00
Unavailable
20
SEAL
14B-1446R-00-00
Unavailable
21
GROMMET
13S-14445-01-00
Unavailable
22
CAP ASSY, AIR CLEANER
14B-14402-01-00
Unavailable
23
INJECTOR
14B-13761-10-00
Unavailable
24
O-RING
5PS-14147-00-00
Unavailable
25
GASKET, MANIFOLD
8FP-13556-00-00
Unavailable
26
CAP, INJECTOR
14B-13767-01-00
Unavailable
27
WIRE, SUB-LEAD
14B-82318-00-00
Unavailable
28
CLAMP
90464-16061-00
Unavailable
29
BOLT, BUTTON HEAD
92012-05014-00
Unavailable
30
CAP, CLEANER CASE 1
14B-14412-01-00
Unavailable
31
SEAL
14B-14467-00-00
Unavailable
32
SCREW, BIND
98902-05014-00
Unavailable
33
ELEMENT, AIR CLEANER
14B-14451-01-00
Unavailable
34
PIPE, FUEL 2
14B-13972-01-00
Unavailable
35
SCREW, BIND
98902-05020-00
Unavailable
36
CLIP
90467-160A2-00
Unavailable
37
PROTECTOR, HEAT
14B-12682-01-00
Unavailable
41
COVER 1
2C0-13881-00-00
Unavailable
