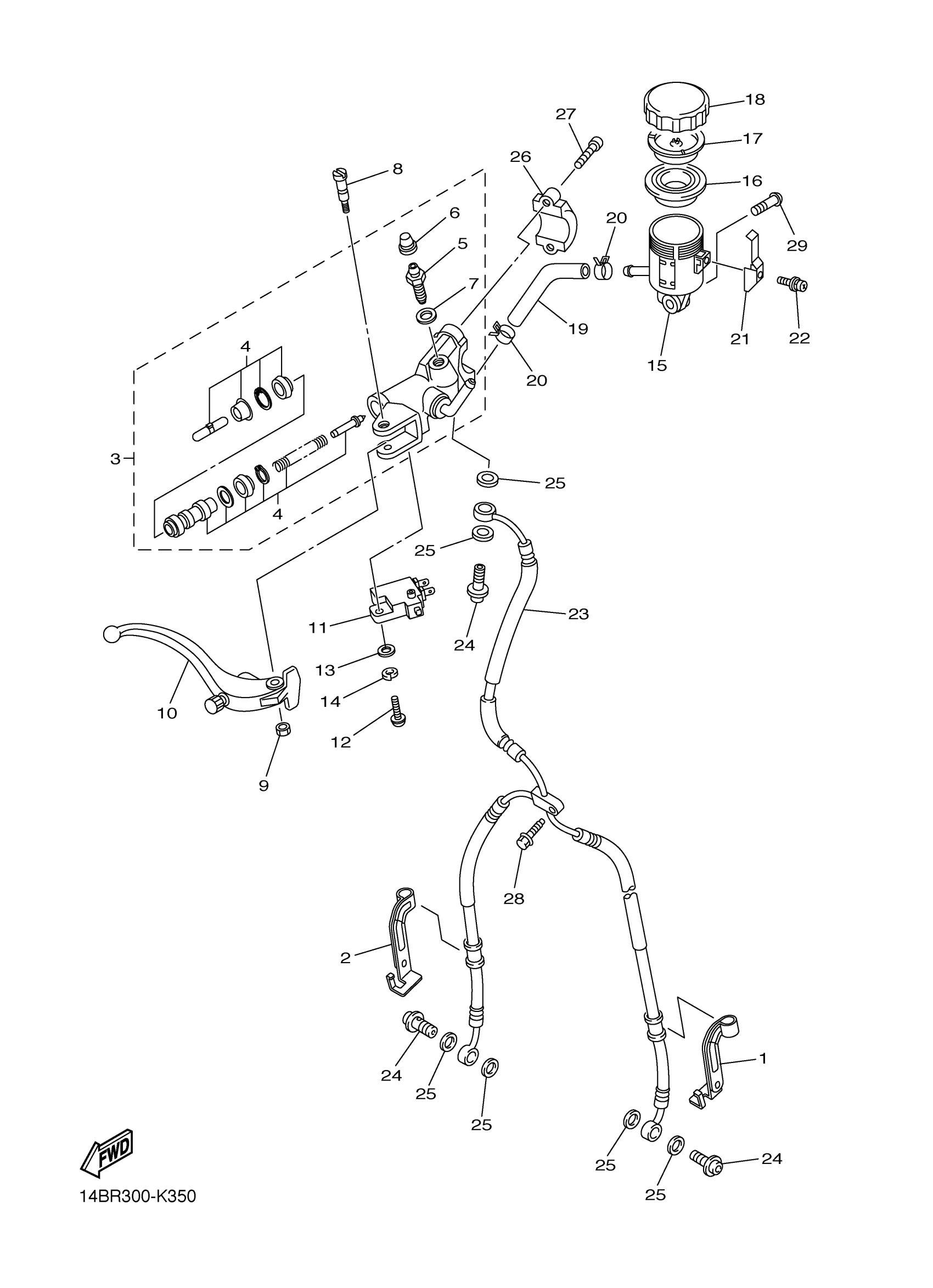

Yamaha YZFR1AL (YZFR1) 1KB10 2011 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOLDER, BRAKE HOSE 1

14B-25875-00-00

Unavailable

2

HOLDER, BRAKE HOSE 2

14B-25876-00-00

$15.49

3

MASTER CYLINDER SUB ASSY

14B-W2587-00-00

$271.99

4

CYLINDER KIT, MASTER

2S3-W0041-00-00

$85.99

5

SCREW, BLEED

3YK-25824-00-00

$8.99

6

CAP

3YK-25825-00-00

Unavailable

7

SEAL 1

5VY-25975-00-00

$2.29

8

BOLT, LEVER

5VY-2589F-01-00

Unavailable

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

LEVER 2

14B-83922-00-00

Unavailable

11

FRONT STOP SWITCH ASSY

4HM-83980-00-00

$41.99

12

SCREW, PAN HEAD

98511-04012-00

Unavailable

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

TANK, RESERVOIR

5SL-25894-20-00

$38.99

16

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

Unavailable

17

BUSH,DIAPHRAGM

5VY-25855-00-00

Unavailable

18

CAP, RESERVOIR

5VY-25852-00-00

Unavailable

19

HOSE, RESERVOIR

5VY-25895-10-00

Unavailable

20

CLIP

90467-120A3-00

Unavailable

21

HOLDER

5VY-2589G-00-00

Unavailable

22

SCREW

5VY-2589H-00-00

Unavailable

23

HOSE, BRAKE 1

14B-25872-10-00

Unavailable

24

BOLT, UNION

90401-10172-00

Unavailable

25

GASKET

90430-10005-00

Unavailable

26

BRACKET, MASTER CYLINDER

5VS-25867-00-00

Unavailable

27

BOLT

5VS-26332-00-00

Unavailable

28

BOLT, FLANGE

90105-06041-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable
