- YZFR1AL (YZFR1) 1KB10 2011
FRONT FORK

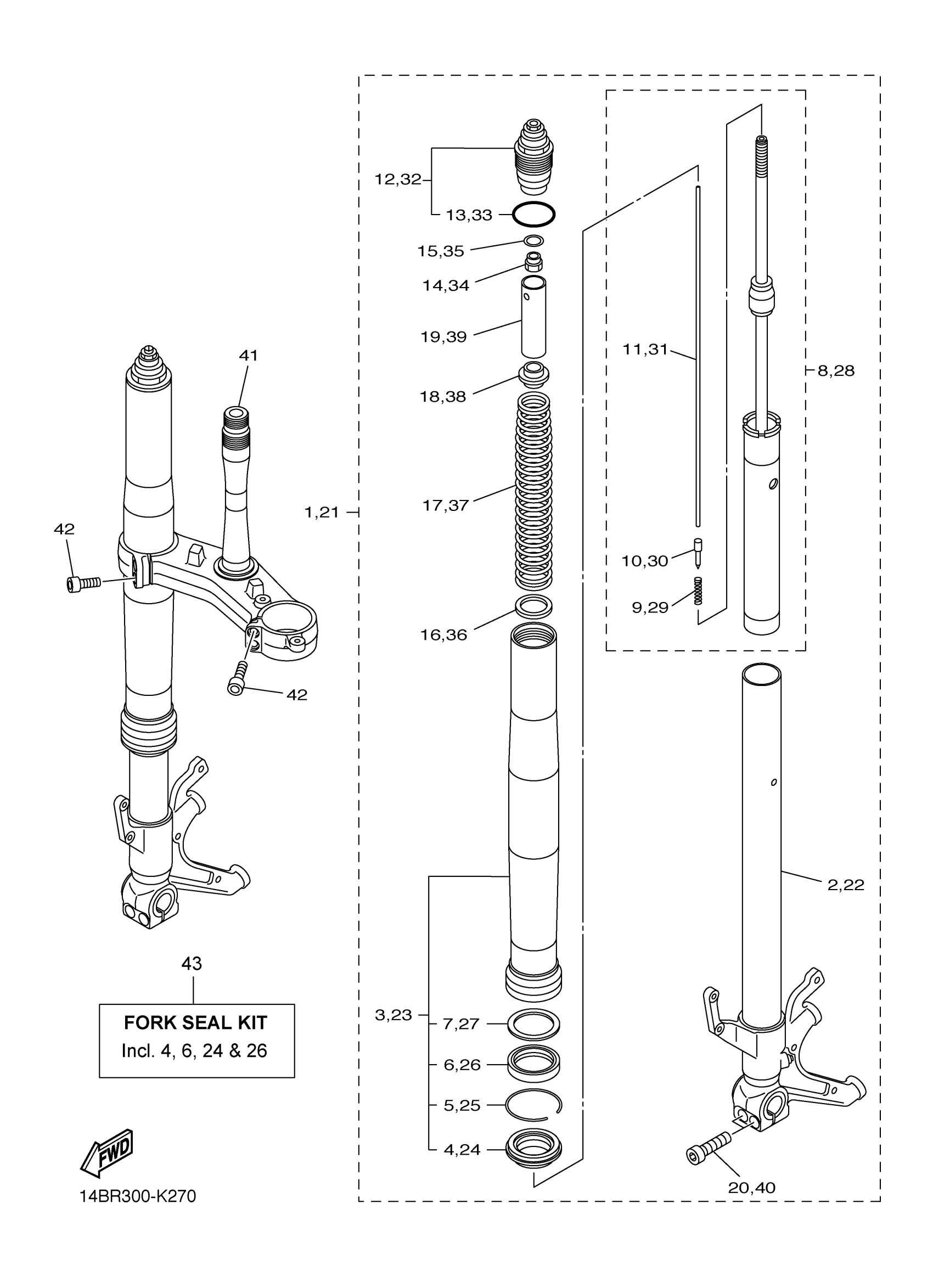

Yamaha YZFR1AL (YZFR1) 1KB10 2011 FRONT FORK Diagram
#
1
FRONT FORK ASSY (L.H)
14B-23102-10-00
Unavailable
2
INNER TUBE COMP.1
14B-23110-01-00
Unavailable
3
OUTER TUBE COMP. (L.H)
14B-23106-10-00
Unavailable
6
OIL SEAL
5VX-23145-00-00
Unavailable
7
GUIDE, COVER UPPER
4TX-23115-00-00
Unavailable
8
CYL. COMP.,2
1KB-2315K-00-00
Unavailable
11
... PLUNGER
14B-2318Y-00-00
Unavailable
14
NUT, SPECIAL
13S-23393-00-00
Unavailable
16
SEAT, SPRING LOWER
5YU-23143-00-00
Unavailable
17
.. SPRING, FRONT FORK
14B-23141-00-00
Unavailable
18
SEAT, SPRING UPPER
13S-23142-00-00
Unavailable
19
SPACER
14B-23118-00-00
Unavailable
20
BOLT, SOCKET
91314-08035-00
Unavailable
21
FRONT FORK ASSY (R.H)
14B-23103-10-00
Unavailable
22
INNER TUBE COMP.2
14B-23120-01-00
Unavailable
23
OUTER TUBE COMP. (L.H)
14B-23106-10-00
Unavailable
26
OIL SEAL
5VX-23145-00-00
Unavailable
27
GUIDE, COVER UPPER
4TX-23115-00-00
Unavailable
28
CYL. COMP.,3
1KB-2315L-00-00
Unavailable
31
... PLUNGER
14B-2318Y-00-00
Unavailable
32
BOLT, CAP 2
14B-2311J-00-00
Unavailable
34
NUT, SPECIAL
13S-23393-00-00
Unavailable
36
SEAT, SPRING LOWER
5YU-23143-00-00
Unavailable
37
.. SPRING, FRONT FORK
14B-23141-00-00
Unavailable
38
SEAT, SPRING UPPER
13S-23142-00-00
Unavailable
39
SPACER
14B-23118-00-00
Unavailable
40
BOLT, SOCKET
91314-08035-00
Unavailable
41
UNDER BRACKET COMP.
14B-23340-00-00
Unavailable
42
BOLT,SOCKET
91314-08030-00
Unavailable
43
FORK SEAL KIT (TWO FORKS)
5VX-W003B-00-00
Unavailable
