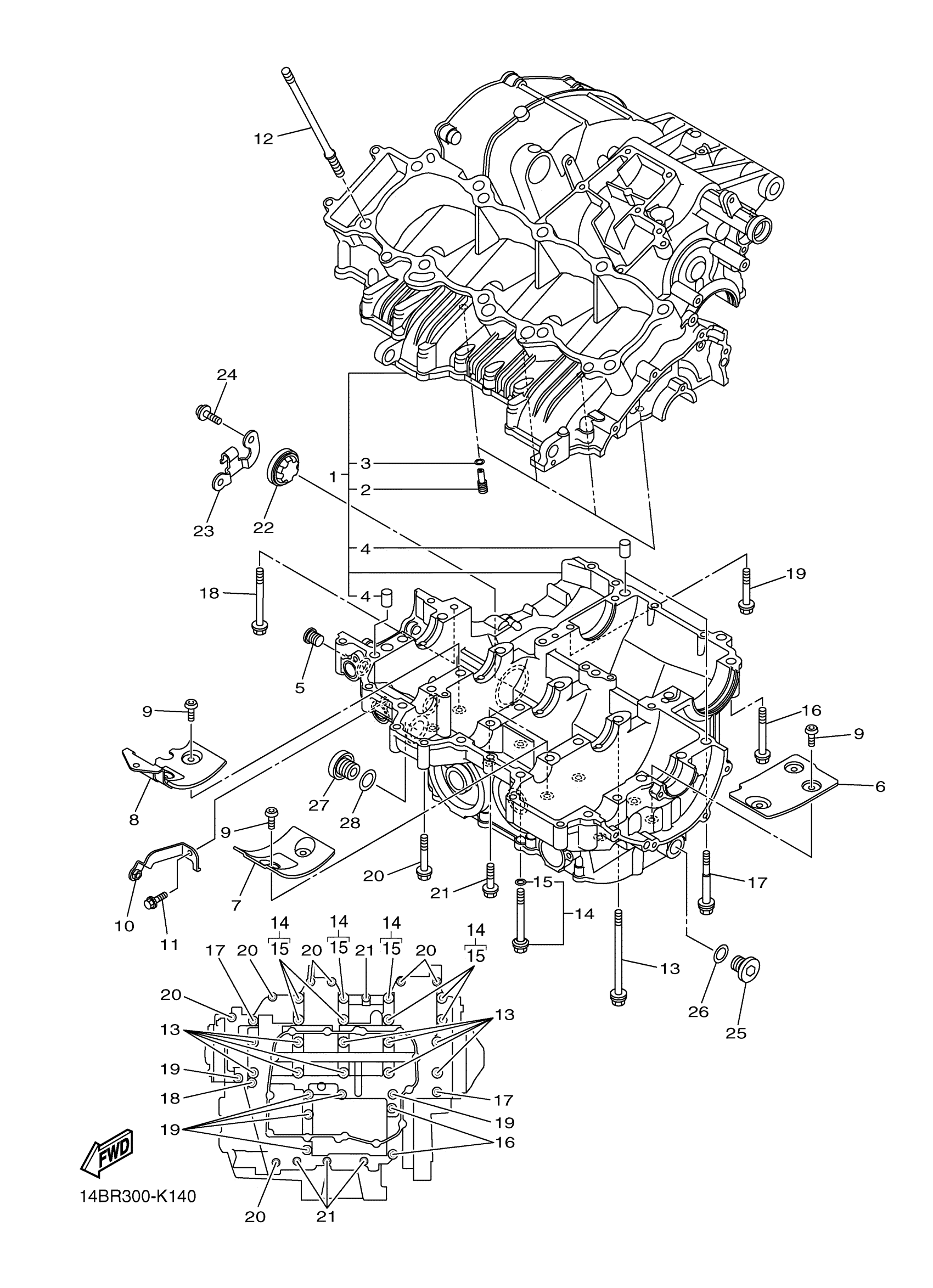

Yamaha YZFR1AL (YZFR1) 1KB10 2011 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

14B-15100-08-00

$1,017.99

2

NOZZLE 3

5EB-15155-00-00

$14.49

3

O-RING (210)

93210-04092-00

$3.76

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

6

PLATE, BAFFLE 1

14B-15123-00-00

Unavailable

7

PLATE, BUFFLE 2

14B-15124-00-00

Unavailable

8

PLATE, BUFFLE 3

14B-15133-00-00

Unavailable

9

SCREW

90149-06081-00

$8.49

10

STAY 2

14B-28322-00-00

Unavailable

11

BOLT, FLANGE

95817-06012-00

$1.43

12

BOLT, STUD

90116-10051-00

Unavailable

13

BOLT, WITH WASHER

90119-09010-00

$13.49

14

BOLT, CRANKCASE JOURNAL

14B-15156-00-00

$8.99

15

O-RING (11M)

93210-07540-00

$7.49

16

BOLT, FLANGE

95817-08060-00

Unavailable

17

BOLT

90109-06100-00

Unavailable

18

BOLT, FLANGE

95812-06070-00

Unavailable

19

BOLT, FLANGE

95812-06060-00

Unavailable

20

BOLT, FLANGE

95812-06050-00

Unavailable

21

BOLT, FLANGE

95817-06040-00

Unavailable

22

GAUGE, LEVEL

5PW-15361-00-00

Unavailable

23

HOLDER, CLUTCH CABLE

14B-15441-01-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

25

PLUG

36Y-15189-01-00

Unavailable

26

O-RING(1L9)

93210-16325-00

Unavailable

27

PLUG

4H7-15189-00-00

Unavailable

28

O-RING

93210-20802-00

Unavailable
