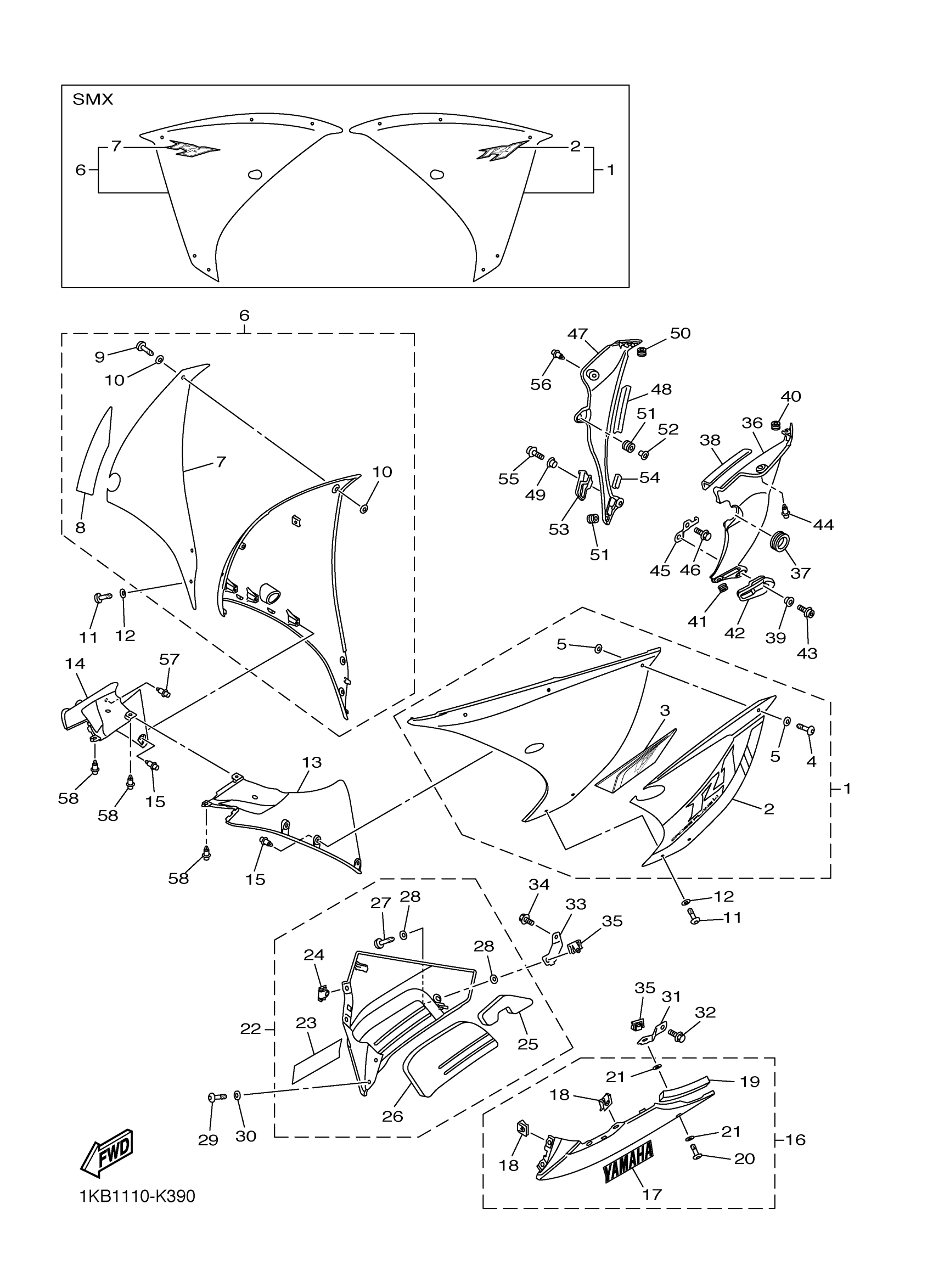

Yamaha YZFR1AL (YZFR1) 1KB10 2011 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
14B-W283U-N0-P3
Unavailable
2
EMBLEM 3D
14B-2839B-10-00
Unavailable
6
PANEL ASSY 2
14B-W283V-N0-P3
Unavailable
7
EMBLEM 3D
14B-2839B-10-00
Unavailable
16
COVER ASSY, UNDER
14B-Y2808-V0-P1
Unavailable
19
DAMPER, PLATE
90520-30004-00
Unavailable
22
COVER ASSY 2, UNDER
14B-Y2809-V0-P1
Unavailable
25
DAMPER
14B-28371-10-00
Unavailable
26
SEAT 4
14B-2848M-10-00
Unavailable
31
BRACKET 1
14B-2836A-00-00
Unavailable
32
BOLT, FLANGE
95817-06016-00
Unavailable
33
BRACKET 2
14B-2836E-00-00
Unavailable
34
BOLT, FLANGE
95817-06016-00
Unavailable
36
PANEL, INNER 3
14B-2836M-10-P0
Unavailable
37
DAMPER, LOCATING 1
14B-2836T-00-00
Unavailable
38
DAMPER, PLATE
90520-05011-00
Unavailable
39
COLLAR
90387-08079-00
Unavailable
40
GROMMET
90480-08006-00
Unavailable
41
GROMMET(4FM)
90480-12596-00
Unavailable
42
STOPPER, RUBBER 1
14B-283C1-00-00
Unavailable
43
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
44
RIVET(4PH)
90269-07077-00
Unavailable
45
STAY 1
14B-28321-00-00
Unavailable
46
BOLT, FLANGE
95817-06012-00
Unavailable
47
PANEL, INNER 4
14B-2836N-10-P0
Unavailable
48
SEAL 1
3NU-21732-00-00
Unavailable
49
COLLAR
90387-08079-00
Unavailable
50
GROMMET
90480-08006-00
Unavailable
51
GROMMET(4FM)
90480-12596-00
Unavailable
52
COLLAR
90387-06159-00
Unavailable
53
STOPPER, RUBBER 2
14B-283C2-00-00
Unavailable
54
SEAL 5
4B5-2847F-00-00
Unavailable
55
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
56
RIVET(4PH)
90269-07077-00
Unavailable
