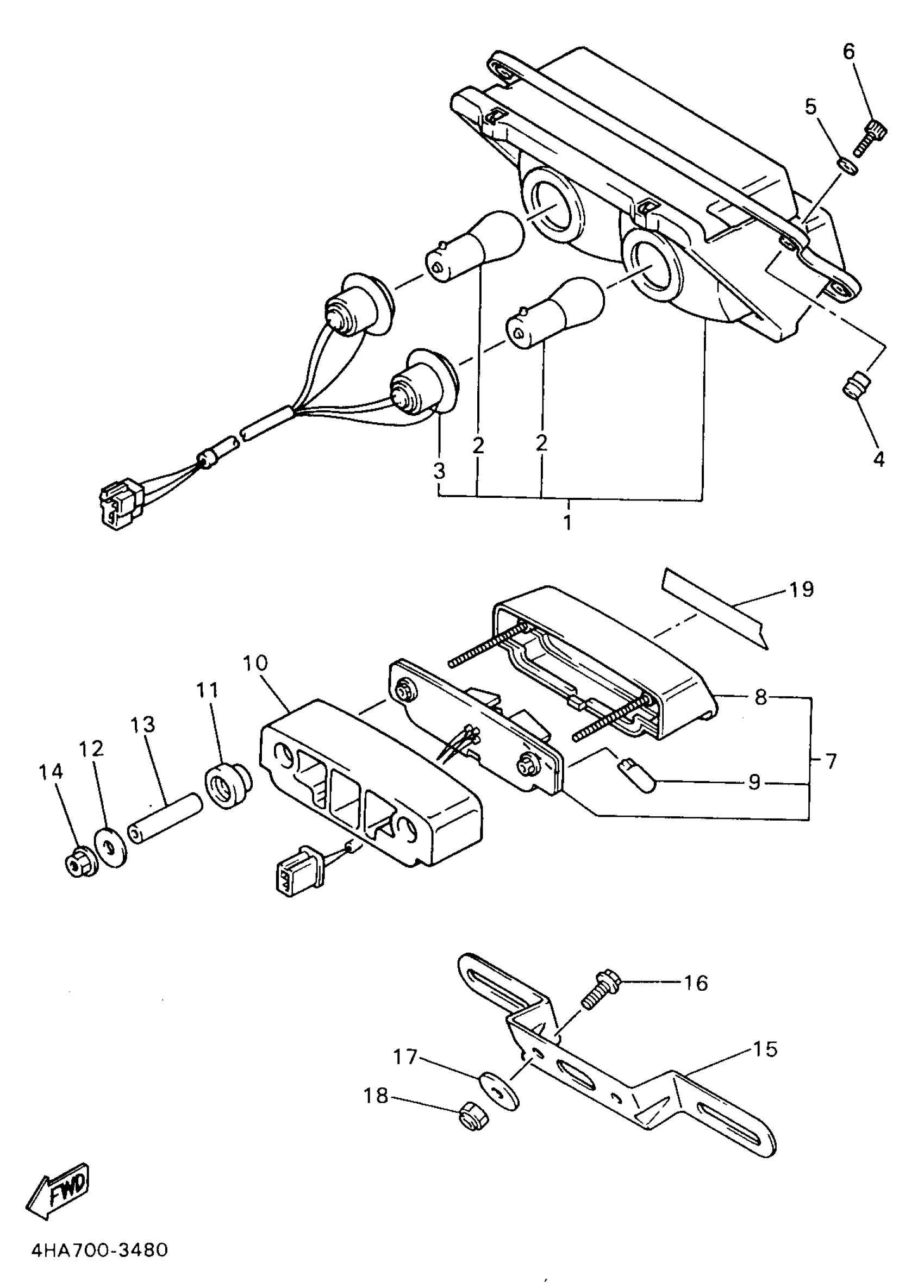

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

4FM-84710-10-00

Unavailable

2

BULB

1A2-84714-50-00

$14.49

3

. CORD ASSEMBLY

4FM-84735-00-00

Unavailable

4

NUT(1KT)

90179-05523-00

$8.49

5

WASHER(1RW)

92907-05600-00

$3.78

6

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

7

LICENCE LIGHT UNIT ASSEMBLY

4FM-84745-10-00

Unavailable

8

. BODY, LICENCE LIGHT

4FM-84749-10-00

Unavailable

9

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

10

SEAT, BASE

4FM-84742-00-00

Unavailable

11

DAMPER

3F9-84553-00-00

Unavailable

12

WASHER PLATE 829771780000

90201-05033-00

$10.49

13

COLLAR

90387-0601Y-00

Unavailable

14

NUT, FLANGE(3GM)

95707-05500-00

$8.49

15

BRACKET, LICENSE

4FM-84751-00-00

Unavailable

16

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

17

WASHER, PLATE

90201-06020-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

Unavailable

19

EMBLEM, YAMAHA

99246-00080-00

Unavailable
