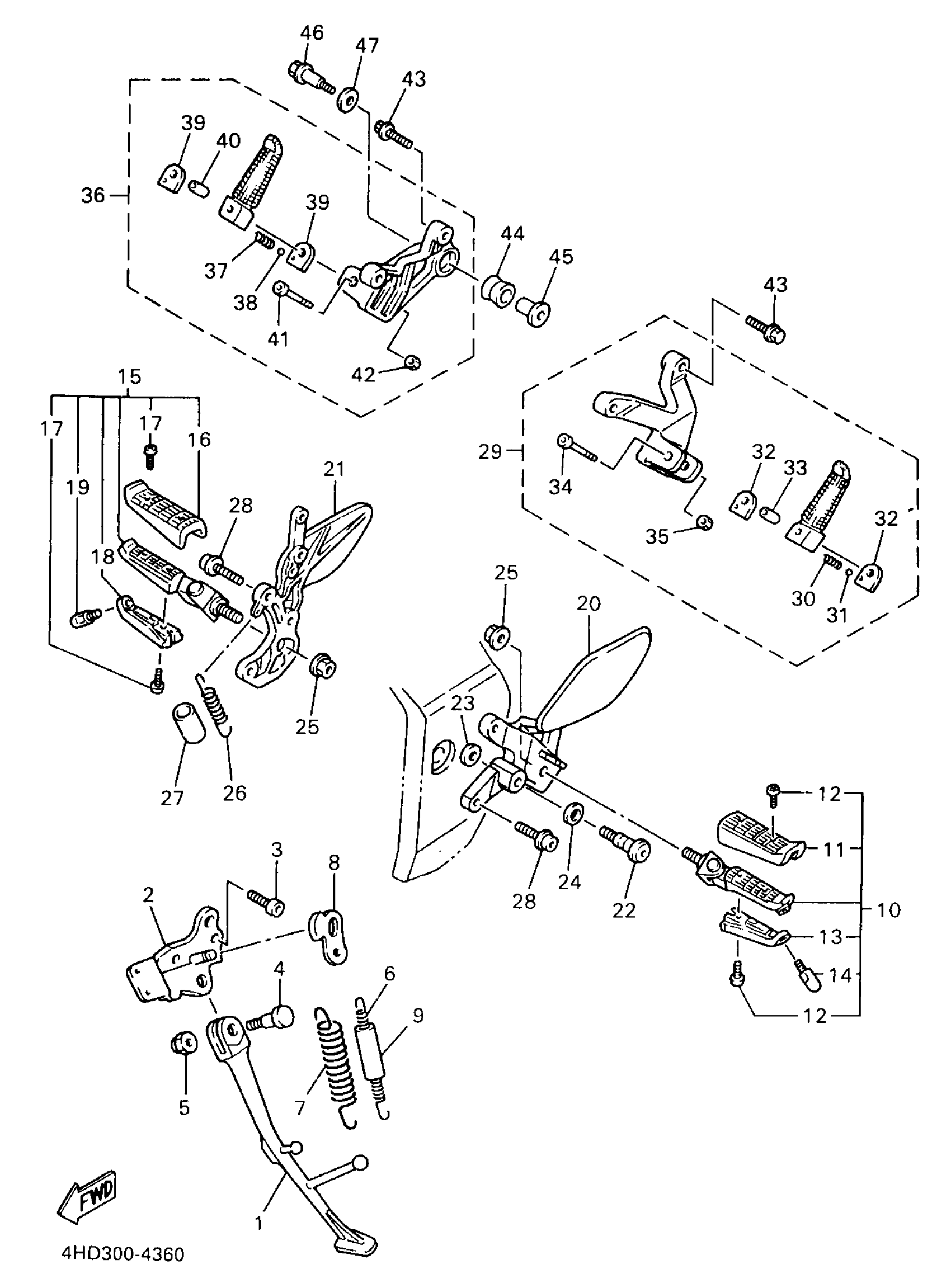

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

4FM-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

4FM-27321-00-00

Unavailable

3

BOLT, SOCKET

91317-08030-00

$8.49

4

BOLT(2GH)

90109-104E6-00

$9.49

5

NUT, U

90185-10037-00

$9.49

6

SPRING, TENSION (4K0)

90506-18224-00

$5.60

7

SPRING, TENSION (4K0)

90506-26225-00

$11.49

8

LINK, SIDE STAND

4FM-27315-00-00

Unavailable

9

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

10

FRONT FOOTREST ASSEMBLY (LEFT)

4FM-27410-00-00

Unavailable

11

COVER, FOOTREST

2GH-27413-00-00

$45.99

12

SCREW, PAN HEAD

98507-05014-00

$8.49

13

. BAR, FOOTREST 1

4FM-27471-00-00

Unavailable

14

. BOLT

4FM-27435-00-00

Unavailable

15

FRONT FOOTREST ASSEMBLY (RIGHT)

4FM-27420-00-00

Unavailable

16

COVER, FOOTREST

2GH-27413-00-00

$45.99

17

SCREW, PAN HEAD

98507-05014-00

$8.49

18

. BAR, FOOTREST 1

4FM-27471-00-00

Unavailable

19

. BOLT

4FM-27435-00-00

Unavailable

20

BRACKET 2

4FM-27442-02-00

Unavailable

21

BRACKET 3

4FM-27443-02-00

Unavailable

22

BOLT

4BP-27434-11-00

Unavailable

23

WASHER (853)

90201-08326-00

Unavailable

24

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

25

NUT(4KG)

90179-10658-00

Unavailable

26

SPRING, TENSION(46X)

90506-20377-00

Unavailable

27

HOSE(3GM)

90446-17346-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

29

RR FTRST ASY 1

4FM-27430-11-00

Unavailable

30

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

31

BALL

93501-04011-00

Unavailable

32

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

33

COLLAR (24R)

90387-064H8-00

Unavailable

34

BOLT, SOCKET

91314-06045-00

Unavailable

35

NUT, U FLANGE

95604-06200-00

Unavailable

36

RR FOOTREST ASY 2

4FM-27440-11-00

Unavailable

37

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

38

BALL

93501-04011-00

Unavailable

39

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

40

COLLAR (24R)

90387-064H8-00

Unavailable

41

BOLT, SOCKET

91314-06045-00

Unavailable

42

NUT, U FLANGE

95604-06200-00

Unavailable

43

BOLT, FLANGE(4FM)

95814-08030-00

Unavailable

44

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

45

COLLAR (2H7)

90387-10636-00

Unavailable

46

BOLT, WASHER BASED(4KM)

90105-10778-00

Unavailable

47

WASHER, PLATE (2H7)

90201-10669-00

Unavailable
