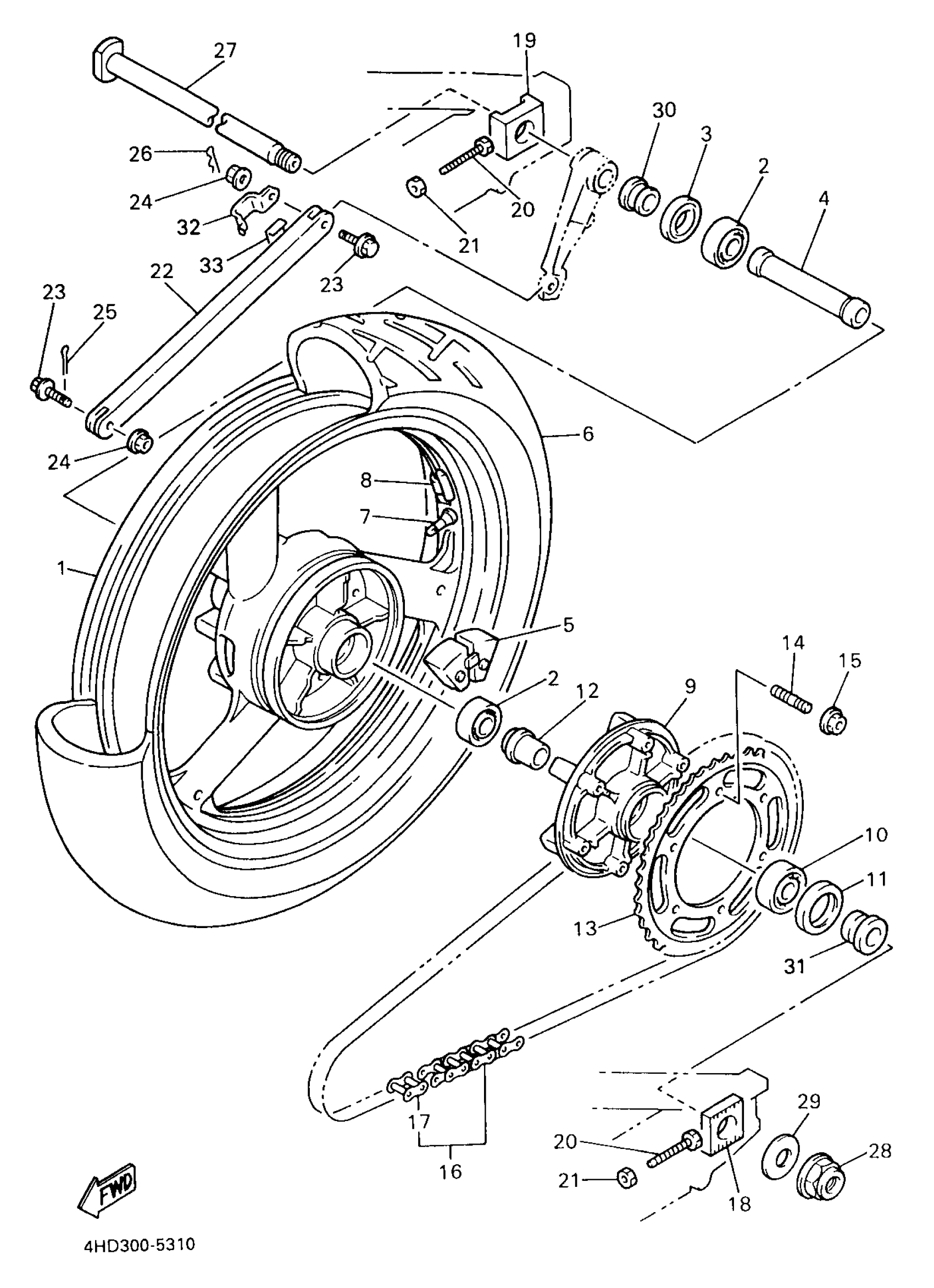

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 REAR WHEEL Diagram
#
Description
Price
1
WHEEL,CAST REAR
4FM-25338-01-7B
Unavailable
6
TIRE (180/55 ZR17 BT50R)
94118-1700R-00
Unavailable
8
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
9
CLUTCH, HUB
4FM-25366-00-00
Unavailable
10
BEARING(4HD)
93306-20644-00
Unavailable
13
SPROCKET, DRIVEN (43T)
3FV-25443-01-00
Unavailable
14
BOLT, STUD(4HD)
90116-10575-00
Unavailable
15
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
16
CHAIN
9Y581-55105-00
Unavailable
17
JOINT, CHAIN(4HD)
94681-55031-00
Unavailable
18
PULLER,CHAIN 1
4FM-25388-01-00
Unavailable
19
PULLER, CHAIN 2
4FM-25389-00-00
Unavailable
20
BOLT(3GM)
90101-08766-00
Unavailable
21
NUT(6TA)
95337-08600-00
Unavailable
22
BAR, TENSION
4FM-25371-10-00
Unavailable
23
BOLT, WASHER BASED(47X)
90105-08321-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
PIN, COTTER
91490-20025-00
Unavailable
26
CLIP(4BP)
90468-16192-00
Unavailable
27
AXLE, WHEEL
4FM-25381-20-00
Unavailable
28
NUT, SELF-LOCKING
90185-24007-00
Unavailable
29
WASHER, PLATE
90201-25020-00
Unavailable
30
COLLAR(4HA)
90387-2805W-00
Unavailable
31
COLLAR
90387-2805X-00
Unavailable
32
HOLDER,BRAKE HOSE
4FM-25887-01-00
Unavailable
33
DAMPER
2AL-84553-00-00
Unavailable
