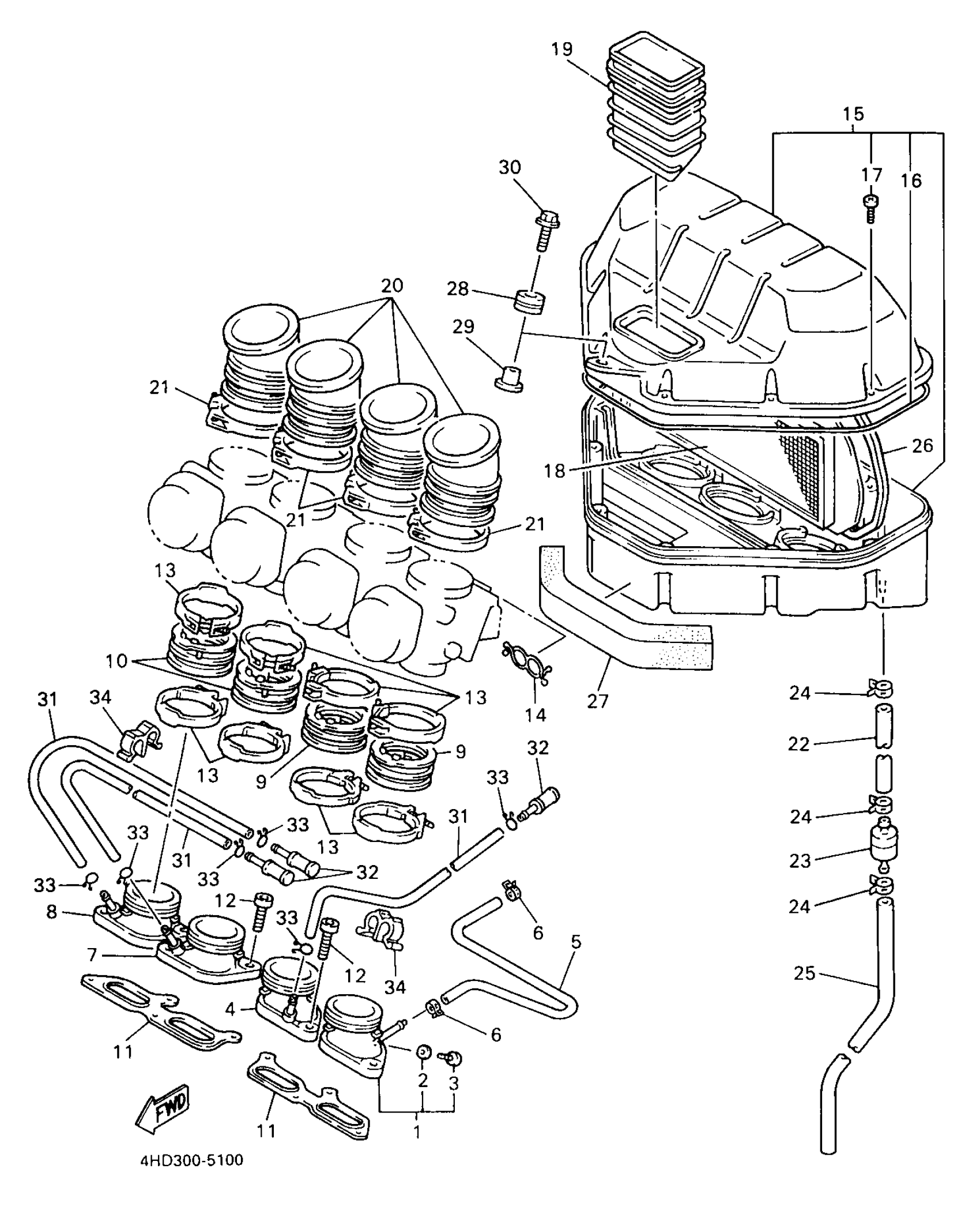

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 INTAKE Diagram
#
1
JOINT,CARBURETOR 1
4FN-13586-01-00
Unavailable
2
GASKET 256113960000
90430-06014-00
Unavailable
4
JOINT, CARBURETOR 1
4FM-13586-11-00
Unavailable
5
HOSE
3FV-2416A-00-00
Unavailable
7
JOINT, CARBURETOR 2
4FM-13596-11-00
Unavailable
8
JOINT, CARBURETOR 2
4HD-13596-10-00
Unavailable
11
GASKET, MANIFOLD
4FM-13556-01-00
Unavailable
12
BOLT,SOCKET
91317-06020-00
Unavailable
14
CLAMP
90464-17184-00
Unavailable
15
AIR CLEANER CASE ASSEMBLY
4FM-14401-10-00
Unavailable
16
SEAL
1VJ-14462-00-00
Unavailable
17
SCREW, PAN TAP.2
97707-50525-00
Unavailable
18
ELEMENT, AIR CLEANER
4FM-14451-00-00
Unavailable
19
DUCT
4FM-14437-00-00
Unavailable
20
JOINT, AIR CLEANER 1
4FM-14453-00-00
Unavailable
21
HOSE CLAMP ASSY
90450-67002-00
Unavailable
22
PIPE, DRAIN
1HX-1443E-00-00
Unavailable
23
FILTER ASSY
4X7-2149Y-00-00
Unavailable
24
CLIP(1JH)
90467-11106-00
Unavailable
25
HOSE (L800)
90445-11083-00
Unavailable
26
SEAL
4FM-14462-00-00
Unavailable
27
SEAL
4FN-14467-00-00
Unavailable
28
GROMMET(3AA)
90480-12497-00
Unavailable
29
COLLAR
90387-06159-00
Unavailable
30
BOLT, FLANGE
95817-06020-00
Unavailable
31
HOSE (L770)
90445-090G9-00
Unavailable
32
PLUG
90338-05240-00
Unavailable
33
CLIP (8L2)
90467-08017-00
Unavailable
34
CLIP(33M)
90468-15139-00
Unavailable
