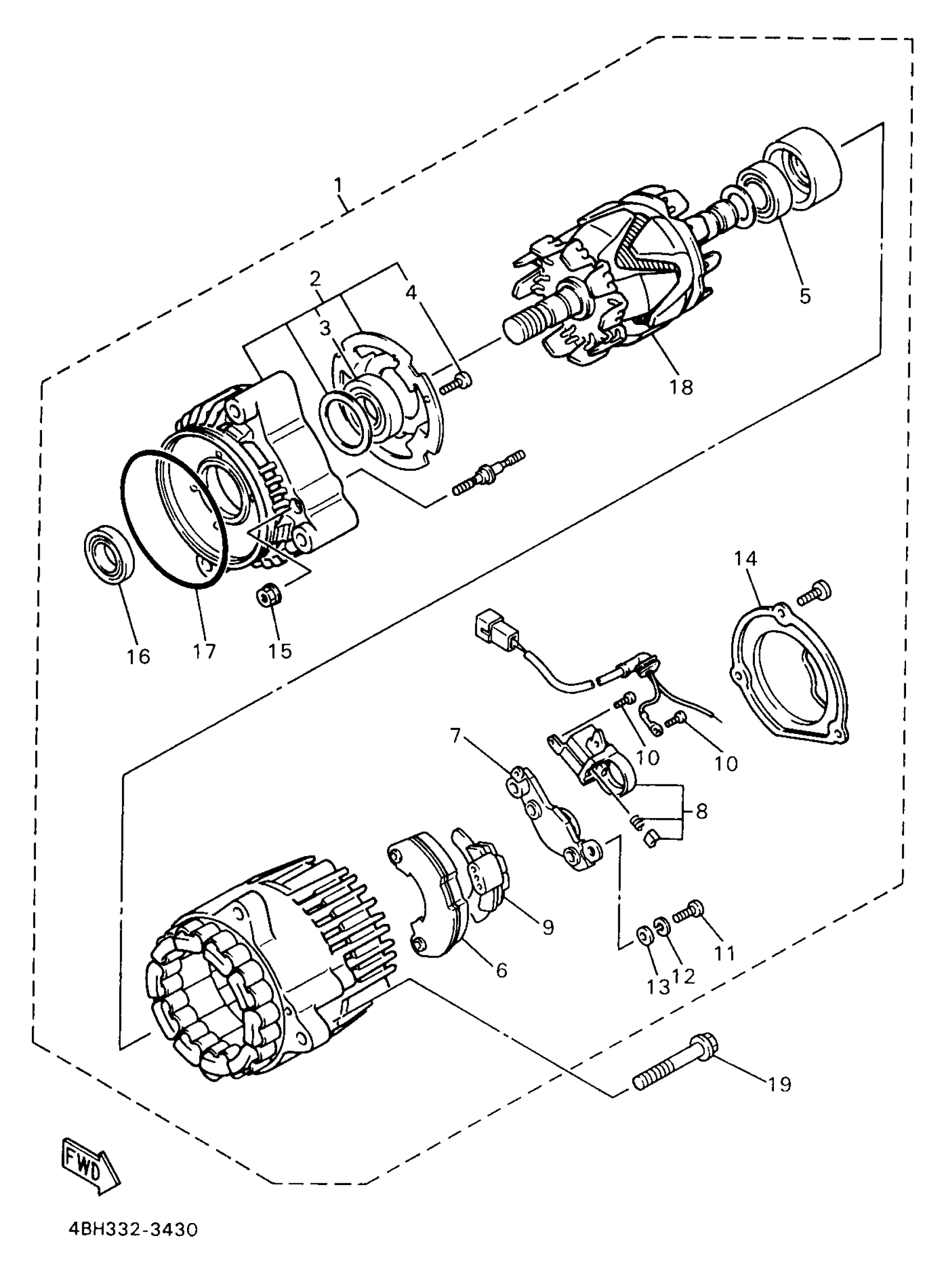

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 GENERATOR Diagram

A.C. GENERATOR ASSY

4KM-81600-10-00

Unavailable

STATOR ASSY

4KG-81634-00-00

$376.99

BEARING(3DL)

93306-20226-00

$38.99

SCREW

4BH-81645-00-00

Unavailable

BEARING

4BH-81643-10-00

Unavailable

RECTIFIER ASSY

4BH-81970-00-00

Unavailable

VOLTAGE REGULATOR ASSY

36Y-81910-50-00

$300.99

BRUSH HOLDER ASSY

3FV-81619-00-00

Unavailable

COVER, RECTIFIER

4BH-81972-00-00

Unavailable

SCREW

3FV-81645-00-00

Unavailable

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

WASHER, PLAIN (646)

92990-05600-00

$0.80

COVER ASSY

4BH-81604-00-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

$8.49

OIL SEAL

36Y-81638-50-00

Unavailable

O-RING

2KT-81642-50-00

Unavailable

ROTOR ASSY

4BH-81660-00-00

Unavailable

BOLT, WASHER BASED

90105-084A1-00

Unavailable
