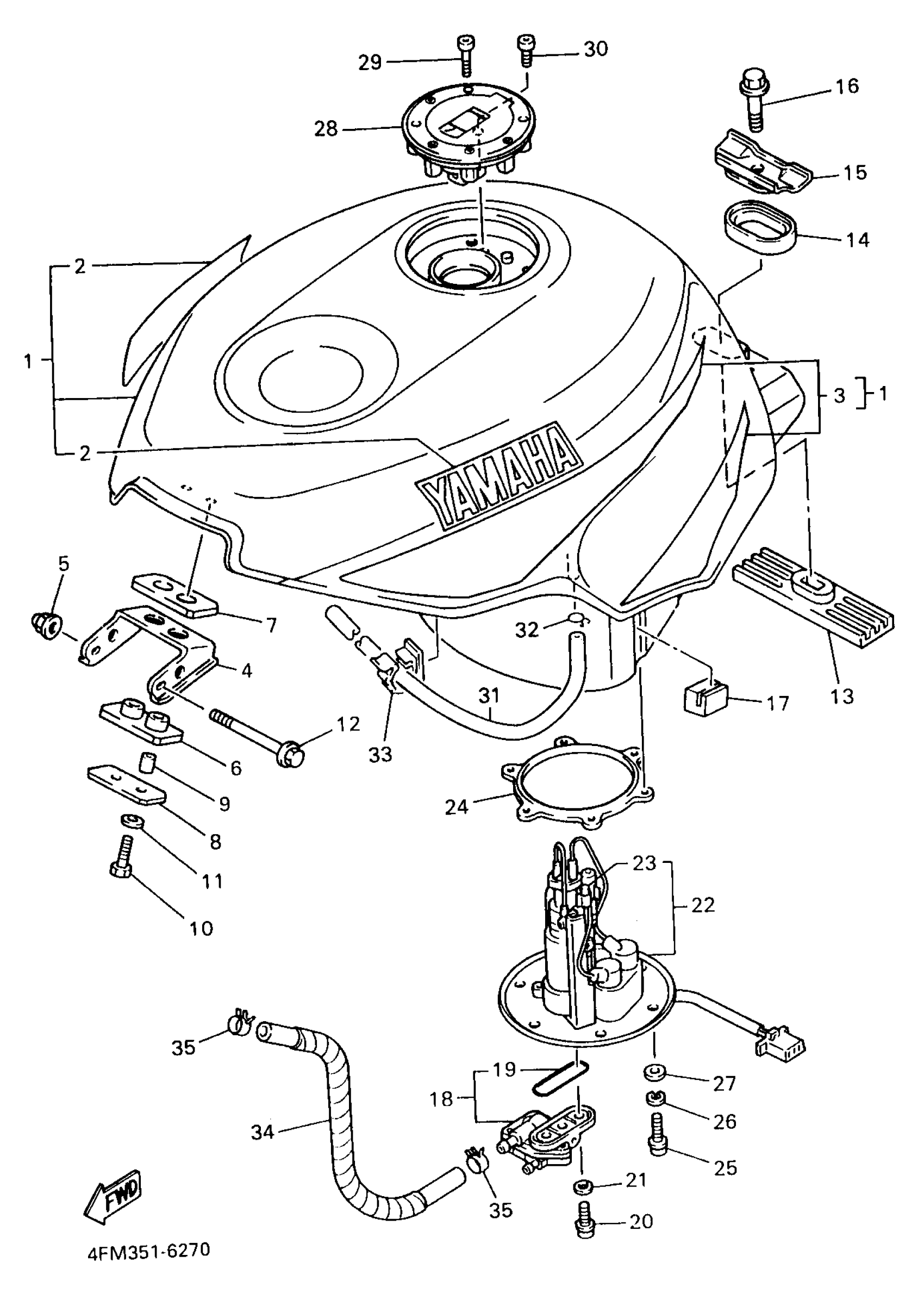

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 FUEL TANK NON CALIFORNIA Diagram

#

Description
Price

1

FUEL TANK COMP.

4FM-24110-30-X6

Unavailable

2

EMBLEM, YAMAHA(3GM)

99226-00160-00

Unavailable

3

. GRAPHIC SET

4HD-24240-00-00

Unavailable

4

BRACKET, FUEL TANK 1

4FM-24191-00-00

Unavailable

5

NUT, CROWN(1FN)

90176-06055-00

$5.60

6

DAMPER, LOCATING 1

2GH-24181-00-00

Unavailable

7

DAMPER, LOCATING 3

2GH-24183-00-00

Unavailable

8

WASHER, SPECIAL

2GH-24186-00-00

Unavailable

9

COLLAR (1M1)

90387-06553-00

$9.49

10

BOLT, HEXAGON

97017-06025-00

$4.24

11

WASHER(6TA)

92907-06600-00

$2.72

12

BOLT, FLANGE

95817-06075-00

$8.49

13

DAMPER, LOCATING 4

2GH-24184-00-00

Unavailable

14

DAMPER, LOCATING 3

3Y6-24183-00-00

$7.99

15

WASHER, SPECIAL

4FM-24187-00-00

Unavailable

16

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

17

DAMPER, LOCATING 3

4JH-24183-01-00

Unavailable

18

FUEL COCK ASSY 1

3FV-24500-02-00

Unavailable

19

O-RING

4X8-24512-00-00

Unavailable

20

SCREW 366241430000

90149-06008-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

FUEL PUMP ASSEMBLY

4FM-13910-00-00

Unavailable

23

. THERMISTOR ASSEMBLY

4FM-85700-00-00

Unavailable

24

SEAL

4FM-2414G-00-00

Unavailable

25

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

26

WASHER(3SX)

92907-05100-00

Unavailable

27

WASHER(1RW)

92907-05600-00

Unavailable

28

CAP ASSY

4FM-24602-20-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

30

BOLT, SOCKET

91317-05010-00

Unavailable

31

HOSE

90445-11M78-00

Unavailable

32

CLIP

90467-090A2-00

Unavailable

33

CLAMP(3YL)

90464-25160-00

Unavailable

34

HOSE

3FV-14294-02-00

Unavailable

35

CLIP(3YX)

90467-13133-00

Unavailable
