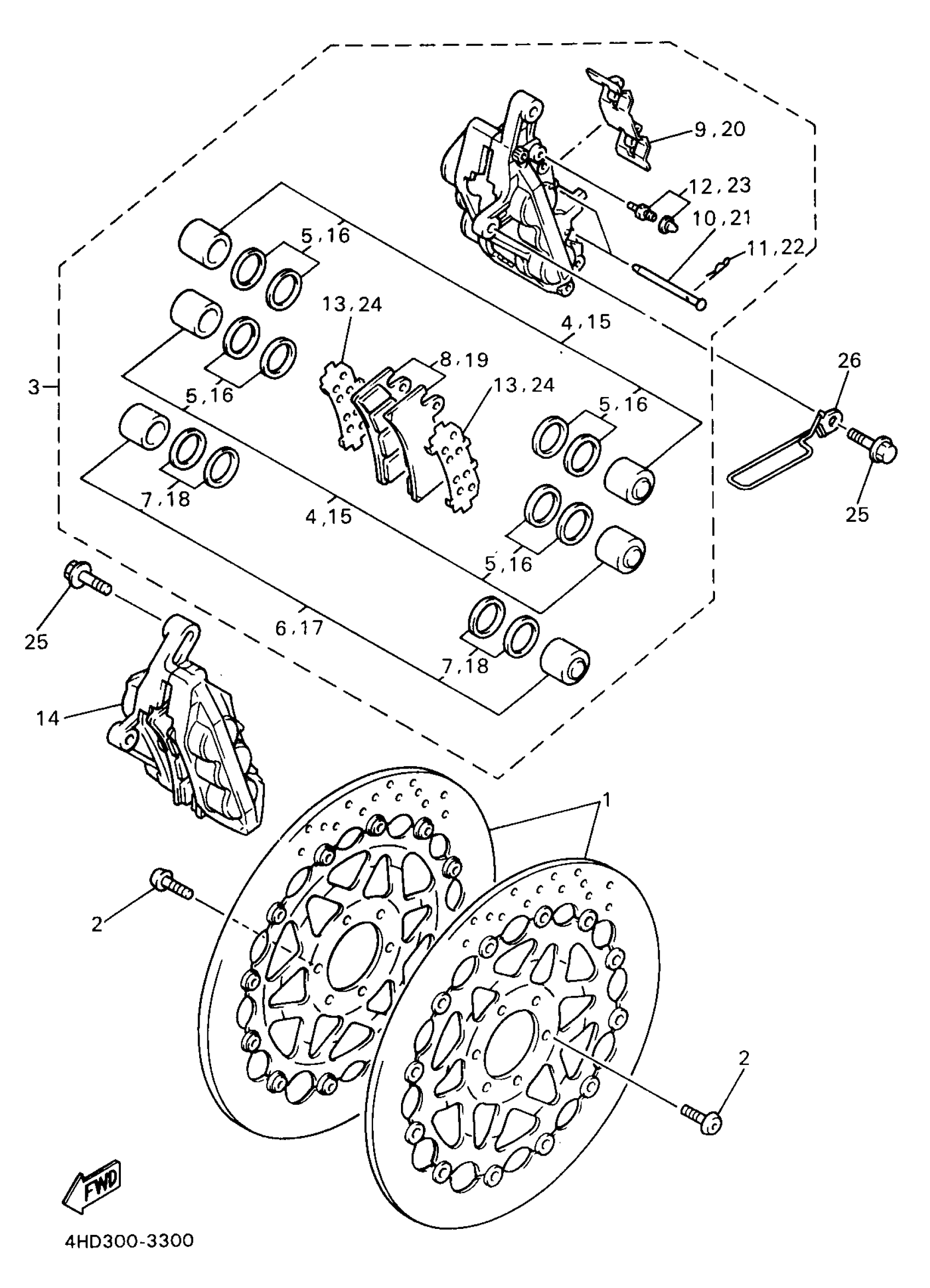

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 FRONT BRAKE CALIPER Diagram

#

Description

Price

1

DISC BRK

4FM-2581T-02-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$5.60

3

CALIPER ASY,L

4FM-2580T-30-00

Unavailable

4

. PISTON ASSEMBLY, CALIPER

4FM-W0057-10-00

Unavailable

5

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

6

. PISTON ASSEMBLY, CALIPER

4FM-W0057-00-00

Unavailable

7

.. CALIPER SEAL KIT

4FM-W0047-00-00

Unavailable

8

BRAKE PAD KIT

4FM-W0045-30-00

Unavailable

9

. SUPPORT, PAD

4FM-25919-00-00

Unavailable

10

. PIN, PAD

4FM-25924-00-00

Unavailable

11

. CLIP

4FM-25925-00-00

Unavailable

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

. SHIM, CALIPER

4FM-25827-00-00

Unavailable

14

CALIPER ASY (RIGHT

4FM-2580U-30-00

Unavailable

15

. PISTON ASSEMBLY, CALIPER

4FM-W0057-10-00

Unavailable

16

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

17

. PISTON ASSEMBLY, CALIPER

4FM-W0057-00-00

Unavailable

18

.. CALIPER SEAL KIT

4FM-W0047-00-00

Unavailable

19

BRAKE PAD KIT

4FM-W0045-30-00

Unavailable

20

. SUPPORT, PAD

4FM-25919-00-00

Unavailable

21

. PIN, PAD

4FM-25924-00-00

Unavailable

22

. CLIP

4FM-25925-00-00

Unavailable

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

. SHIM, CALIPER

4FM-25827-00-00

Unavailable

25

BOLT, WASHER BASED(3FV)

90105-10725-00

Unavailable

26

HOLDER

4FM-21596-00-00

Unavailable
