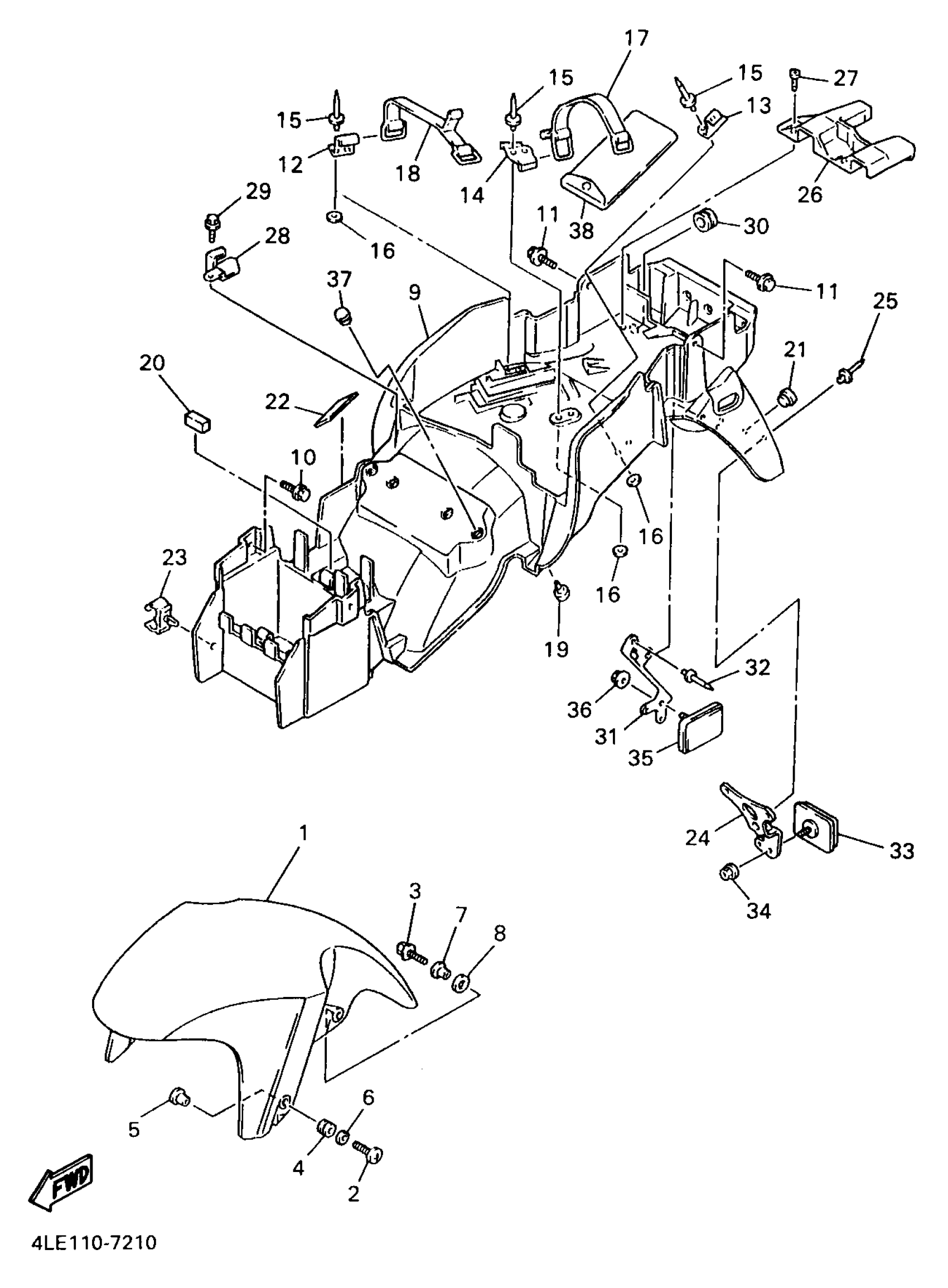

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4FM-21511-03-P3

Unavailable

2

SCREW, BINDING(3XV)

90154-06061-00

$8.49

3

BOLT, FLANGE

95817-06016-00

$2.75

4

GROMMET(4FM)

90480-12596-00

$10.49

5

COLLAR

90387-0608A-00

Unavailable

6

WASHER

90209-18340-00

Unavailable

7

COLLAR(50M)

90387-087L0-00

$8.49

8

DAMPER

4FM-28372-00-00

$6.99

9

FENDER, REAR

4FM-21611-03-00

Unavailable

10

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

11

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

12

HOOK, TOOL BAND

3VD-21366-00-00

Unavailable

13

HOOK, TOOL BAND

1M1-21366-00-00

Unavailable

14

BRACKET 3

4JH-2161A-00-00

Unavailable

15

RIVET, BLIND (8K1)

90267-40076-00

$8.49

16

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

17

BAND

36X-2811G-00-00

Unavailable

18

BAND, BATTERY

4J2-82131-01-00

Unavailable

19

DAMPER, SEAT

35T-24724-00-00

Unavailable

20

DAMPER, PLATE 2

1LJ-2414J-00-00

Unavailable

21

PLUG

90338-07018-00

Unavailable

22

DAMPER, LOCATING 1

3XV-21778-00-00

Unavailable

23

CLAMP(3LD)

90464-09130-00

Unavailable

24

BRACKET, REFLECTOR 1

4FM-85132-00-00

Unavailable

25

RIVET, BLIND

90267-40029-00

Unavailable

26

COVER, REAR FENDER 1

4JH-2163A-00-00

Unavailable

27

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

28

HOOK, TOOL BAND

4JH-21366-00-00

Unavailable

29

BOLT, FLANGE

95817-06016-00

$2.75

30

GROMMET

90480-10258-00

Unavailable

31

BRACKET, REAR STAY

4FM-21688-00-00

Unavailable

32

RIVET, BLIND

90267-40029-00

Unavailable

33

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

34

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

35

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

36

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

37

PLUG (17J)

90338-10132-00

Unavailable

38

TOOL KIT

4FM-28100-10-00

Unavailable
