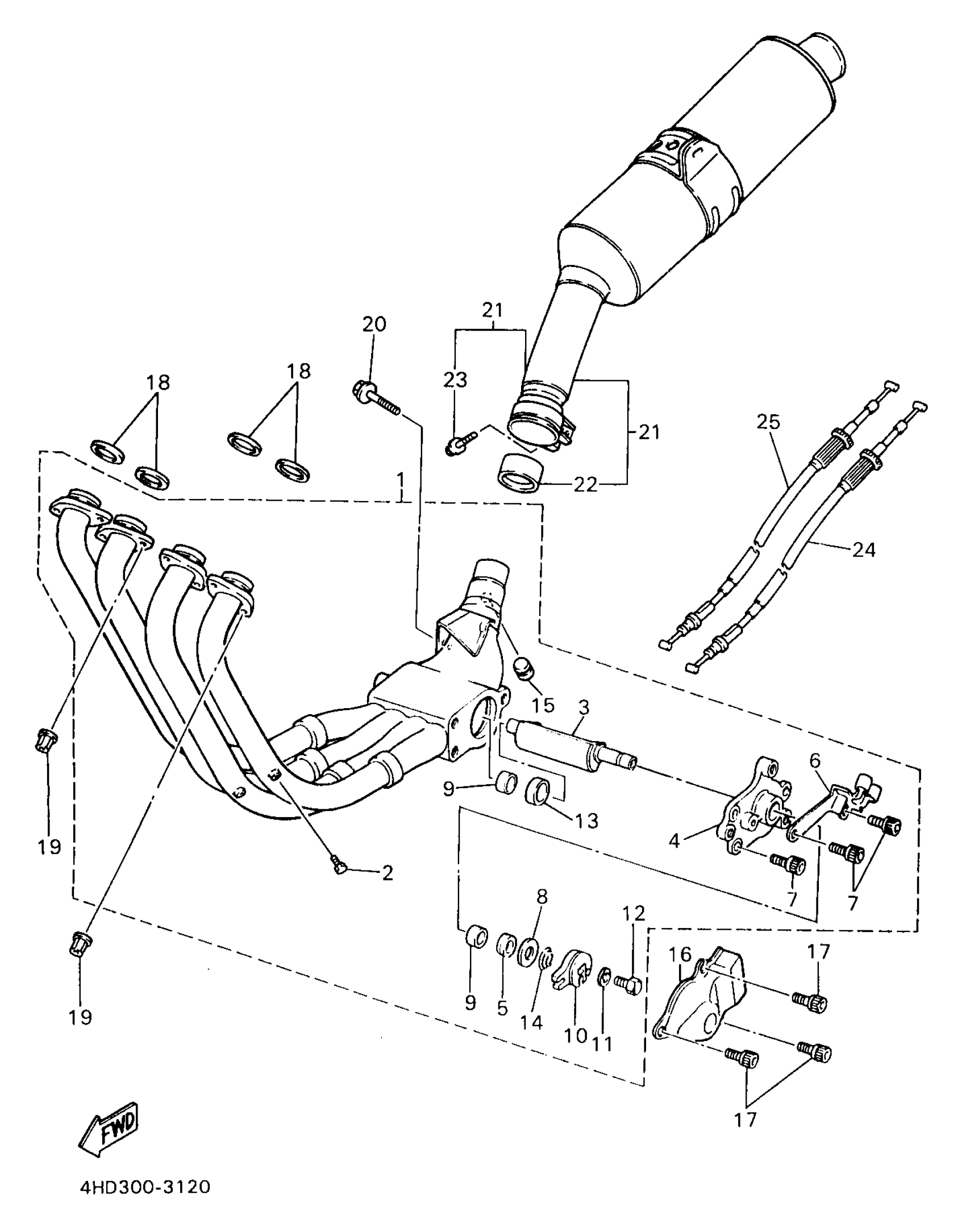

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY 1

4FM-14610-10-00

Unavailable

2

BOLT (11T)

90101-06576-00

$8.49

3

ARM, SHAFT 1

3GM-14821-01-00

Unavailable

4

HOUSING

5JJ-14811-00-00

Unavailable

5

. DUST SEAL ASSEMBLY

2TK-14845-00-00

Unavailable

6

. BRACKET

2TK-14867-01-00

Unavailable

7

BOLT, WITH WASHER(1FK)

90119-06115-00

$4.19

8

WASHER, PLATE(3GM)

90201-106M5-00

$10.49

9

BUSH, SOLID

90380-10003-00

Unavailable

10

PULLEY

2TK-14865-01-00

Unavailable

11

. WASHER, PLAIN

92990-05200-00

Unavailable

12

BOLT, HEXAGON

97095-05012-00

$1.11

13

COLLAR(3FH)

90387-106U7-00

Unavailable

14

SPRING, HOOK

5PW-14683-00-00

$7.99

15

DAMPER, LOCATING 1

4FM-24181-00-00

Unavailable

16

PROTECTOR,EXHAUST

4HD-14826-00-00

Unavailable

17

BOLT, WITH WASHER(2TK)

90119-06187-00

Unavailable

18

GASKET, EXHAUST PIPE

4FM-14613-00-00

Unavailable

19

NUT (22U)

90179-08410-00

Unavailable

20

BOLT, FLANGE

95817-08035-00

Unavailable

21

MUFFLER ASSEMBLY 1

4HN-14710-01-00

Unavailable

22

. GASKET, SILENCER

3HE-14755-00-00

Unavailable

23

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

24

CABLE, PULLEY 1

4FM-1133E-00-00

Unavailable

25

CABLE, PULLEY 2

4FM-1133F-00-00

Unavailable
