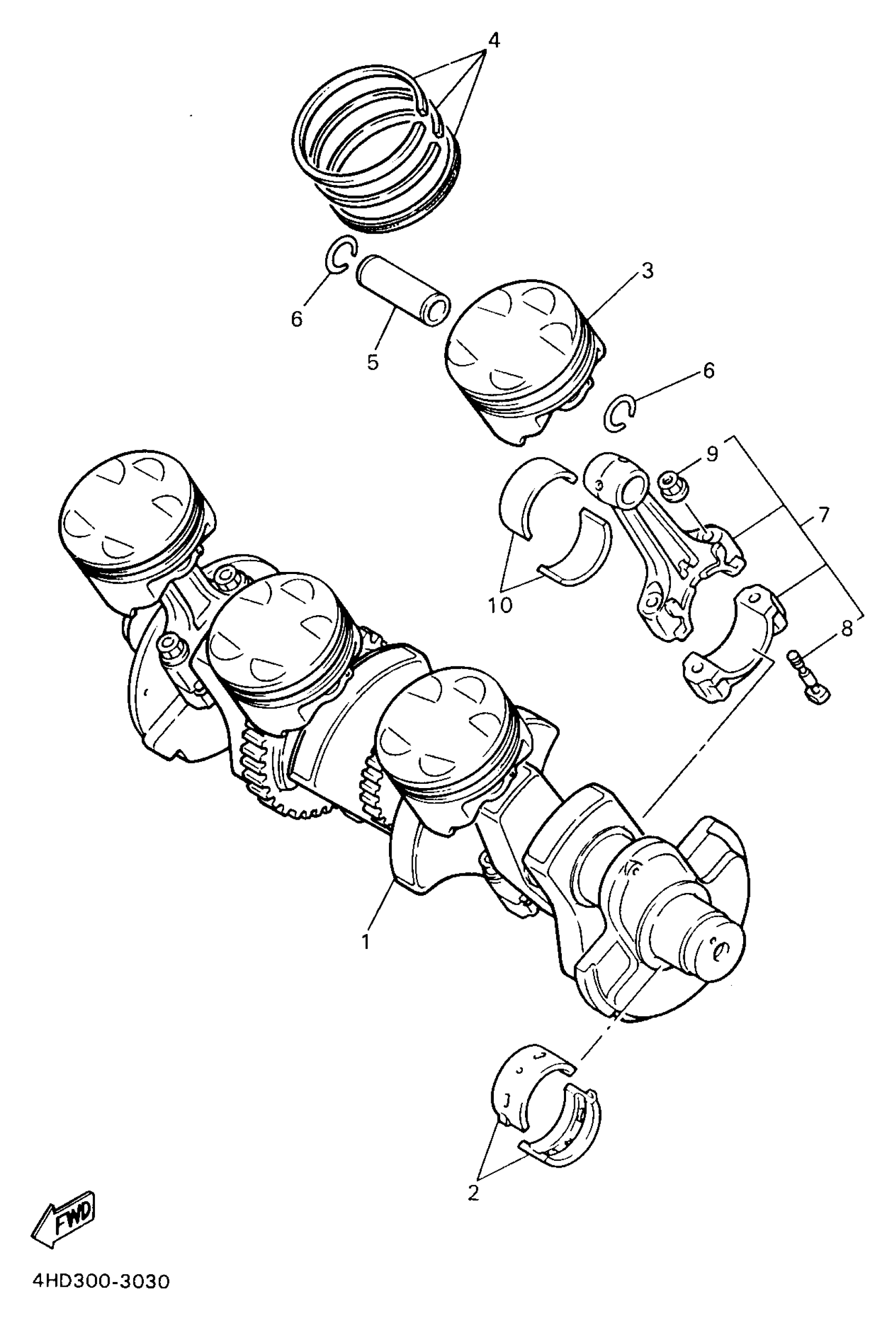

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

4FM-11411-00-00

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

3GM-11416-00-00

$30.99

2

PLANE BEARING, CRANKSHAFT 1

3GM-11416-10-00

$30.99

2

PLANE BEARING, CRANKSHAFT 1

3GM-11416-20-00

$30.99

2

PLANE BEARING, CRANKSHAFT 1

3GM-11416-30-00

$28.99

2

PLANE BEARING, CRANKSHAFT 1

3GM-11416-40-00

$13.49

3

PISTON (STD)

4FM-11631-00-A0

Unavailable

3

PISTON (0.50MM O/S)

4FM-11636-00-00

Unavailable

4

PISTON RING SET (STD)

4FM-11603-00-00

Unavailable

4

PISTON RING SET (0.50MM O/S)

4FM-11605-00-00

Unavailable

5

PIN, PISTON

3GM-11633-00-00

Unavailable

6

CIRCLIP (26H)

93450-19095-00

$2.66

7

CONNECTING ROD ASY

4FM-11650-01-00

Unavailable

8

BOLT, CONNECTING ROD

36Y-11654-00-00

$6.99

9

NUT (11H)

90179-08327-00

$9.49

10

PLANE BEARING, CONNECTING ROD

3GM-11656-00-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

3GM-11656-10-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

3GM-11656-20-00

Unavailable

10

PLANE BEARING, CONNECTING ROD

3GM-11656-30-00

Unavailable
