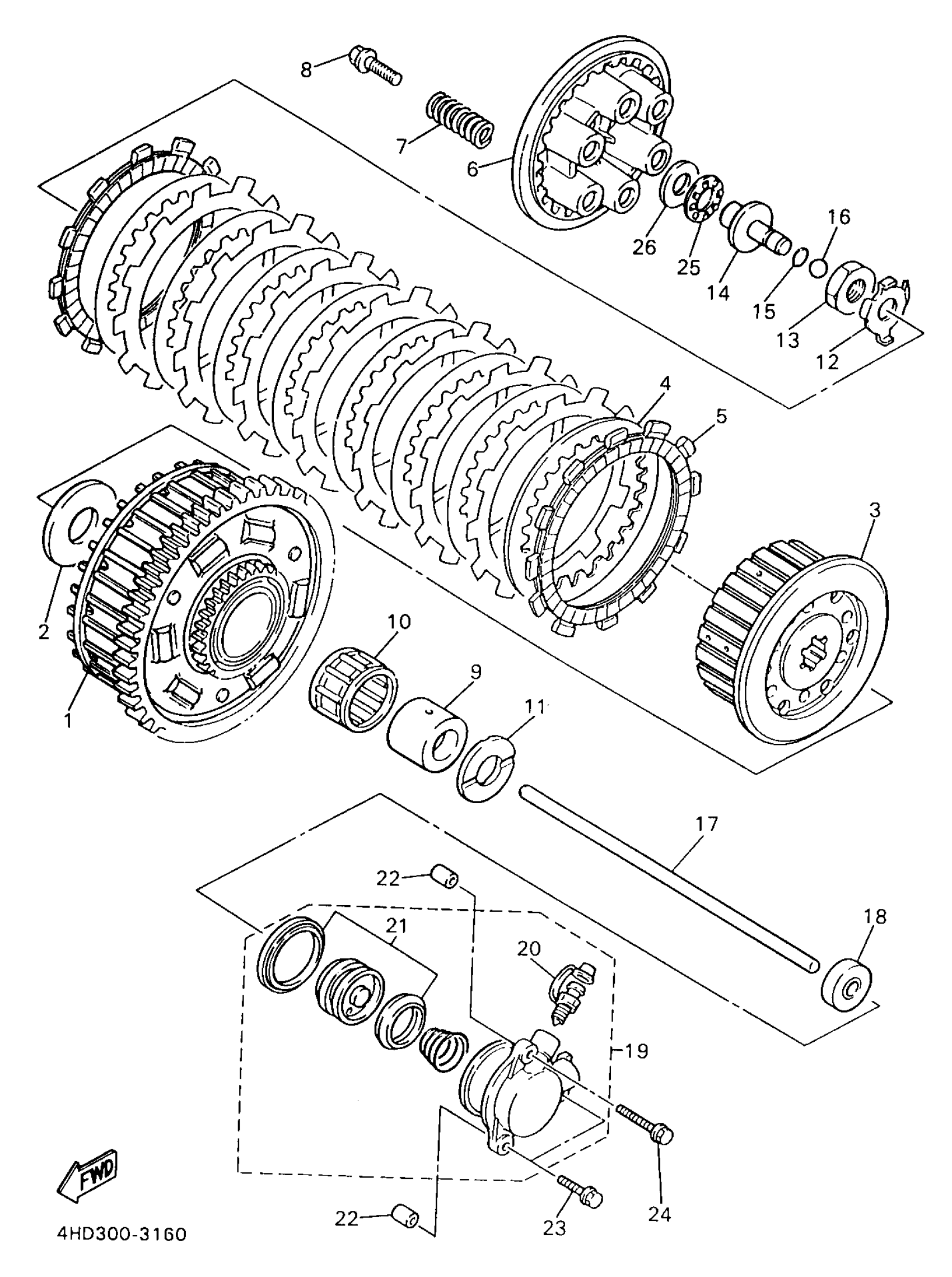

Yamaha YZF750RKC (YZF750RCA) 4LE8 1998 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

4FM-16150-00-00

Unavailable

2

PLATE, THRUST 1

1AE-16154-00-00

Unavailable

3

BOSS, CLUTCH

2GH-16371-00-00

Unavailable

4

PLATE, CLUTCH 1

3J2-16324-10-00

$10.99

5

PLATE, FRICTION

4FN-16321-00-00

Unavailable

6

PLATE, PRESSURE 1

58L-16351-00-00

Unavailable

7

SPRING, COMPRESSION(1FN)

90501-225A9-00

$8.49

8

SCREW, WITH WASHER(1AE)

90159-06123-00

$9.49

9

COLLAR

90387-25024-00

Unavailable

10

BEARING, CYLINDRICAL(1FN)

93310-340N8-00

Unavailable

11

PLATE, THRUST 2

1AE-16164-00-00

$16.49

12

WASHER, LOCK (34L)

90215-20231-00

$4.41

13

NUT (34L)

90170-20327-00

$18.99

14

ROD, PUSH 1

1LJ-16356-00-00

Unavailable

15

O-RING (26H)

93210-06632-00

$8.49

16

BALL (498)

93511-32027-00

Unavailable

17

ROD, PUSH 2

1AE-16357-00-00

Unavailable

18

OIL SEAL(12E)

93109-08061-00

Unavailable

19

PUSH LEVER COMP.

1TV-16381-12-00

Unavailable

20

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

21

PUSH LEVER SEAL KIT

26H-W0098-00-00

Unavailable

22

PIN, DOWEL(N04)

91808-12024-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06090-00

Unavailable

25

BEARING, THRUST (713)

93340-21505-00

Unavailable

26

WASHER, PLATE(3GD)

90201-150U6-00

Unavailable
