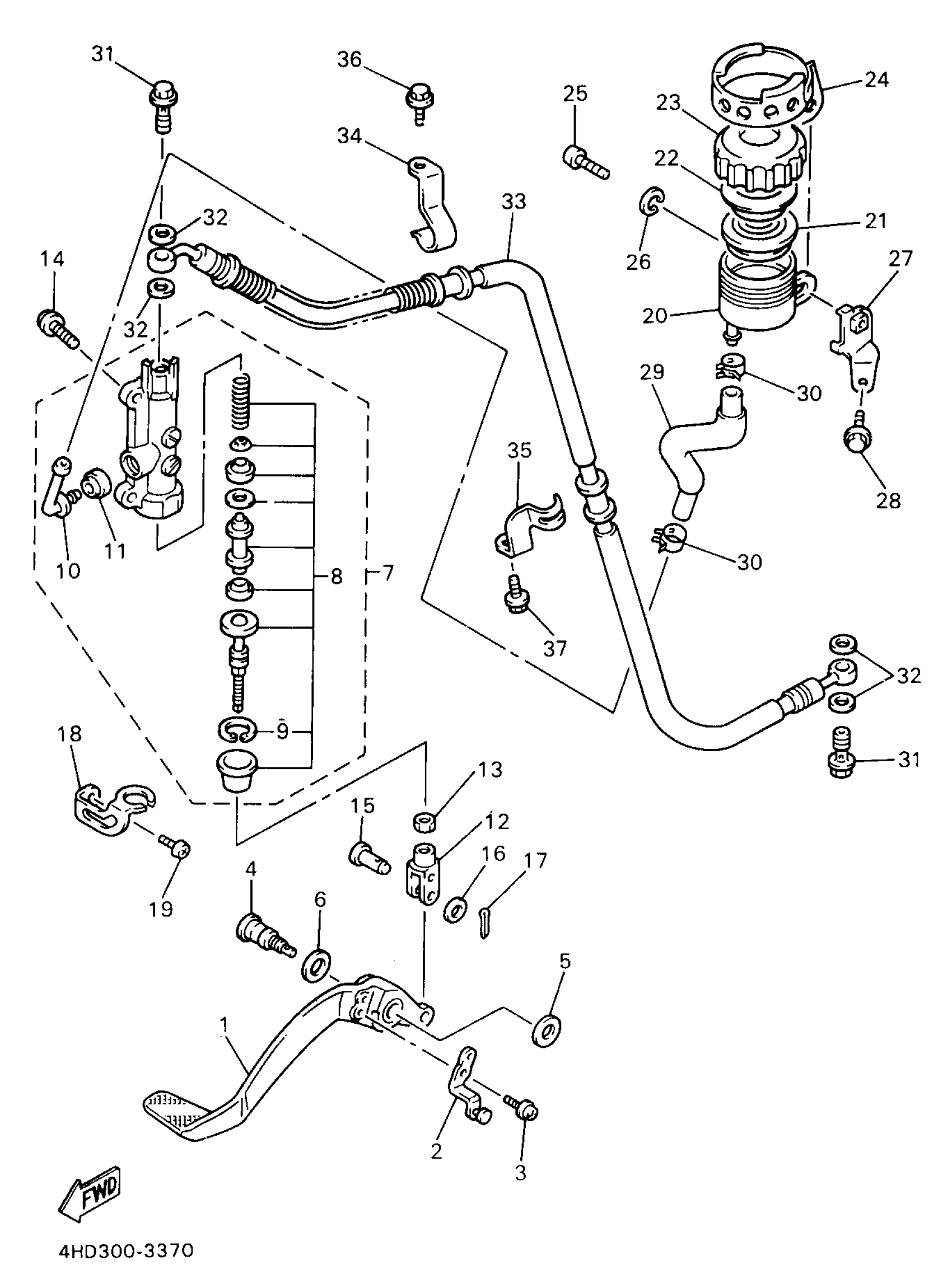

Yamaha YZF750RJC (YZF750R CA) 4LES1 1997 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4FM-27211-21-00

Unavailable

2

HOOK

4FM-27254-00-00

Unavailable

3

SCREW, PAN

98517-06012-00

$3.78

4

SHAFT

21C-27261-01-00

Unavailable

5

WASHER PLATE (3L6)

90201-08759-00

$3.23

6

WASHER, WAVE(6T4)

90206-14086-00

$8.49

7

RR. MASTER CYLINDER ASSY.

4BH-2583V-00-00

Unavailable

8

CYLINDER KIT, MASTER

4BH-W0042-50-00

Unavailable

9

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$4.63

10

JOINT

4BP-2582A-00-00

$17.49

11

O-RING

4BP-2585F-01-00

Unavailable

12

JOINT

4FM-27222-00-00

$23.99

13

NUT, HEXAGON SMALL

95317-08700-00

$9.49

14

BOLT, BUTTON

92014-08020-00

$8.49

15

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

16

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

17

PIN, COTTER

91490-20025-00

Unavailable

18

STAY, STOP SWITCH

4FM-2144G-00-00

Unavailable

19

SCREW, PAN

98507-06010-00

Unavailable

20

TANK, RESERVOIR

31A-25894-01-00

Unavailable

21

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

22

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

23

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

24

COVER, RESERVOIR TANK

3PJ-25888-00-00

Unavailable

25

SCREW, PAN

98517-06020-00

Unavailable

26

WASHER(6TA)

92907-06600-00

Unavailable

27

BRACKET, RESERVOIR

4FM-2133G-00-00

Unavailable

28

BOLT, FLANGE

95817-06016-00

Unavailable

29

HOSE, RESERVOIR

4FM-25895-00-00

Unavailable

30

CLIP (5K4)

90467-14057-00

Unavailable

31

BOLT, UNION(3GM)

90401-10159-00

Unavailable

32

WASHER, PLATE(481)

90201-10118-00

Unavailable

33

HOSE, BRAKE

4FM-25874-01-00

Unavailable

34

HOLDER, BRAKE HOSE 1

4FM-25875-00-00

Unavailable

35

HOLDER, BRAKE HOSE 2

4FM-25876-01-00

Unavailable

36

BOLT, FLANGE(2UJ)

95024-06016-00

Unavailable

37

BOLT, SMALL FLANGE

95027-06008-00

Unavailable
