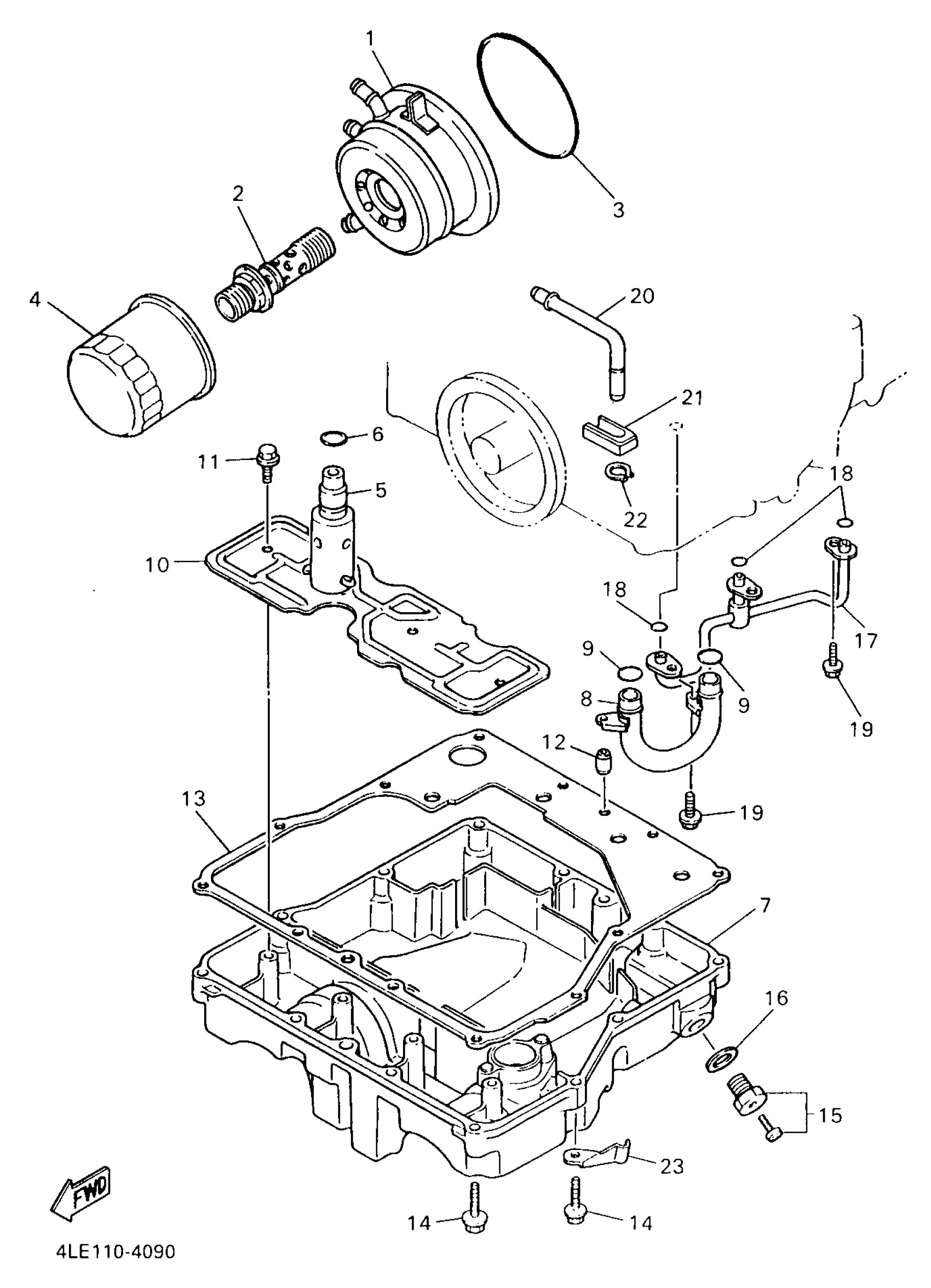

Yamaha YZF750RJC (YZF750R CA) 4LES1 1997 OIL CLEANER Diagram

#

Description
Price

1

OIL COOLER ASSEMBLY

4FM-13470-10-00

Unavailable

2

BOLT, UNION

90401-20161-00

Unavailable

3

O-RING(1KF)

93210-87723-00

Unavailable

4

ELEMENT ASSY, OIL CLEANER

3FV-13440-31-00

$18.99

5

RELIEF VALVE ASSY

3KS-13490-00-00

Unavailable

6

O-RING (22U)

93210-15566-00

$7.49

7

COVER, STRAINER

4FM-13417-00-00

Unavailable

8

PIPE,OIL 1

3FV-13416-01-00

Unavailable

9

O-RING (26H)

93210-14579-00

$7.49

10

PLATE,BAFFLE LOWER

3FV-13337-00-00

Unavailable

11

BOLT, FLANGE(4MY)

95027-06010-00

$3.29

12

PIN, DOWEL(3XW)

91808-16023-00

$8.49

13

GASKET, STRAINER COVER

4FM-13414-00-00

Unavailable

14

BOLT, SMALL FLANGE

95027-06030-00

$3.98

15

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

16

GASKET

214-11198-01-00

Unavailable

17

PIPE, DELIVERY 1

3GM-13161-01-00

Unavailable

18

O-RING(1AE)

93210-06714-00

Unavailable

19

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

20

PIPE, BREATHER

3GM-15373-00-00

Unavailable

21

HOLDER, OIL PIPE

3GM-13174-00-00

Unavailable

22

CIRCLIP(10W)

99009-10400-00

Unavailable

23

CLAMP

90465-08076-00

Unavailable
