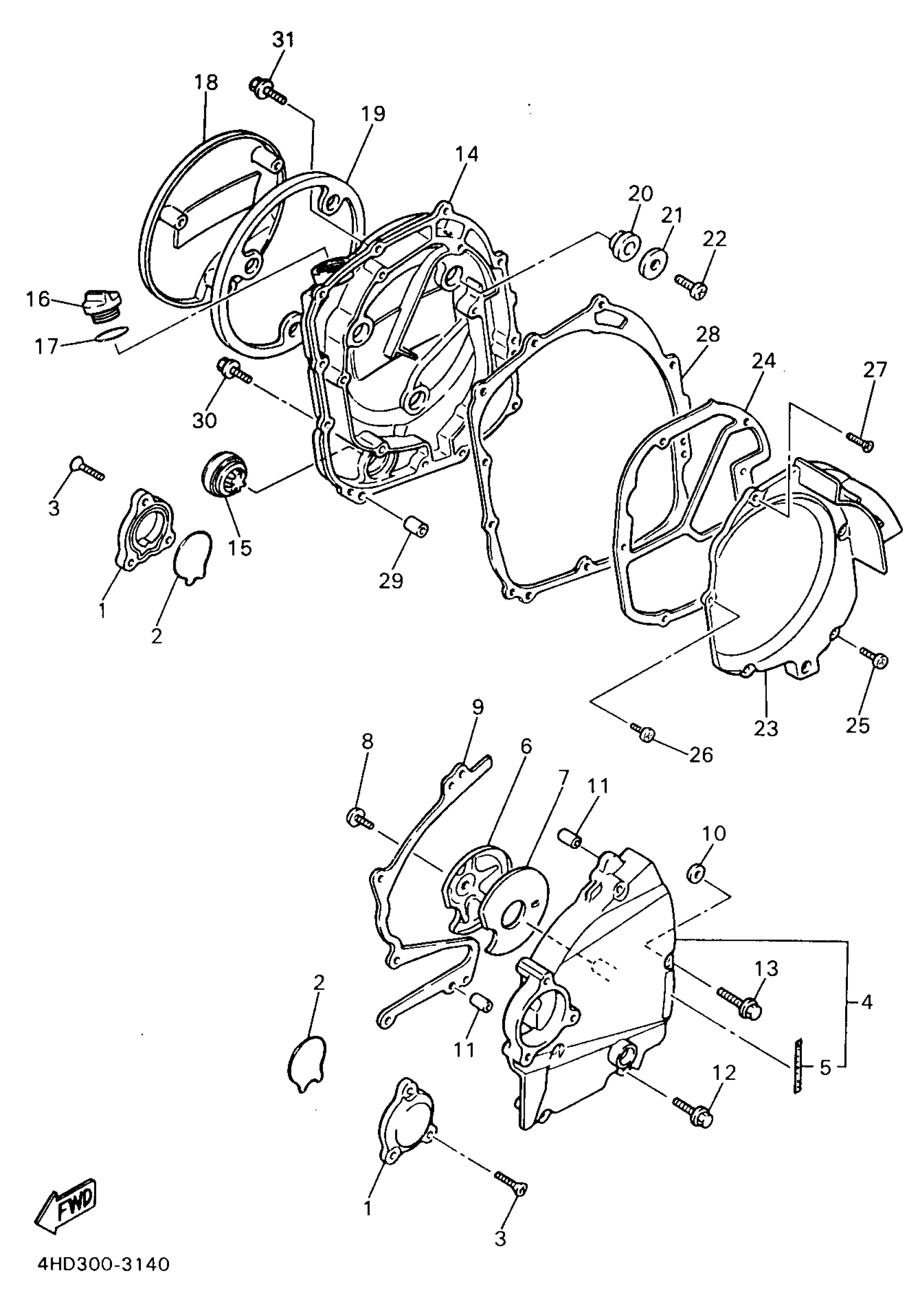

Yamaha YZF750RJC (YZF750R CA) 4LES1 1997 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, OIL PUMP

3GM-15416-00-00

Unavailable

2

GASKET, OIL PUMP COVER 1

1AE-15456-00-00

$5.49

3

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

4

CRCS COVER ASY L

4FM-15410-01-00

Unavailable

5

. EMBLEM

1TV-15435-00-00

Unavailable

6

COVER, CAP 2

3GM-15427-00-00

Unavailable

7

DAMPER, ENGINE MOUNT 1

1AE-15316-00-00

Unavailable

8

BOLT, BUTTON HEAD

92017-06010-00

$4.82

9

GASKET, CRANKCASE COVER 1

4FM-15451-00-00

$22.99

10

GASKET

4FM-15467-00-00

$7.99

11

PIN, DOWEL

99530-08012-00

Unavailable

12

BOLT, FLANGE(4KM)

95024-06040-00

$9.49

13

BOLT, SMALL FLANGE

95024-06050-00

$9.49

14

COVER,CRANKCASE 2

4FM-15421-01-00

Unavailable

15

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

16

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

17

O-RING(1KT)

93210-27778-00

Unavailable

18

COVER, CAP

3GM-15417-00-00

Unavailable

19

RING, RUBBER

3GM-15449-00-00

Unavailable

20

GROMMET

4H7-15486-00-00

Unavailable

21

WASHER (4H7)

90209-06096-00

Unavailable

22

SCREW, PAN

98507-06010-00

Unavailable

23

BREATHER 1

4SV-15346-00-00

Unavailable

24

GASKET, CARBURETOR COVER 2

4FM-15463-00-00

Unavailable

25

SCREW, PAN

98517-06020-00

Unavailable

26

SCREW, PAN

98517-06020-00

Unavailable

27

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

28

GASKET, CRANKCASE COVER 2

4FM-15461-00-00

Unavailable

29

PIN, DOWEL

99530-08012-00

Unavailable

30

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

31

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable
