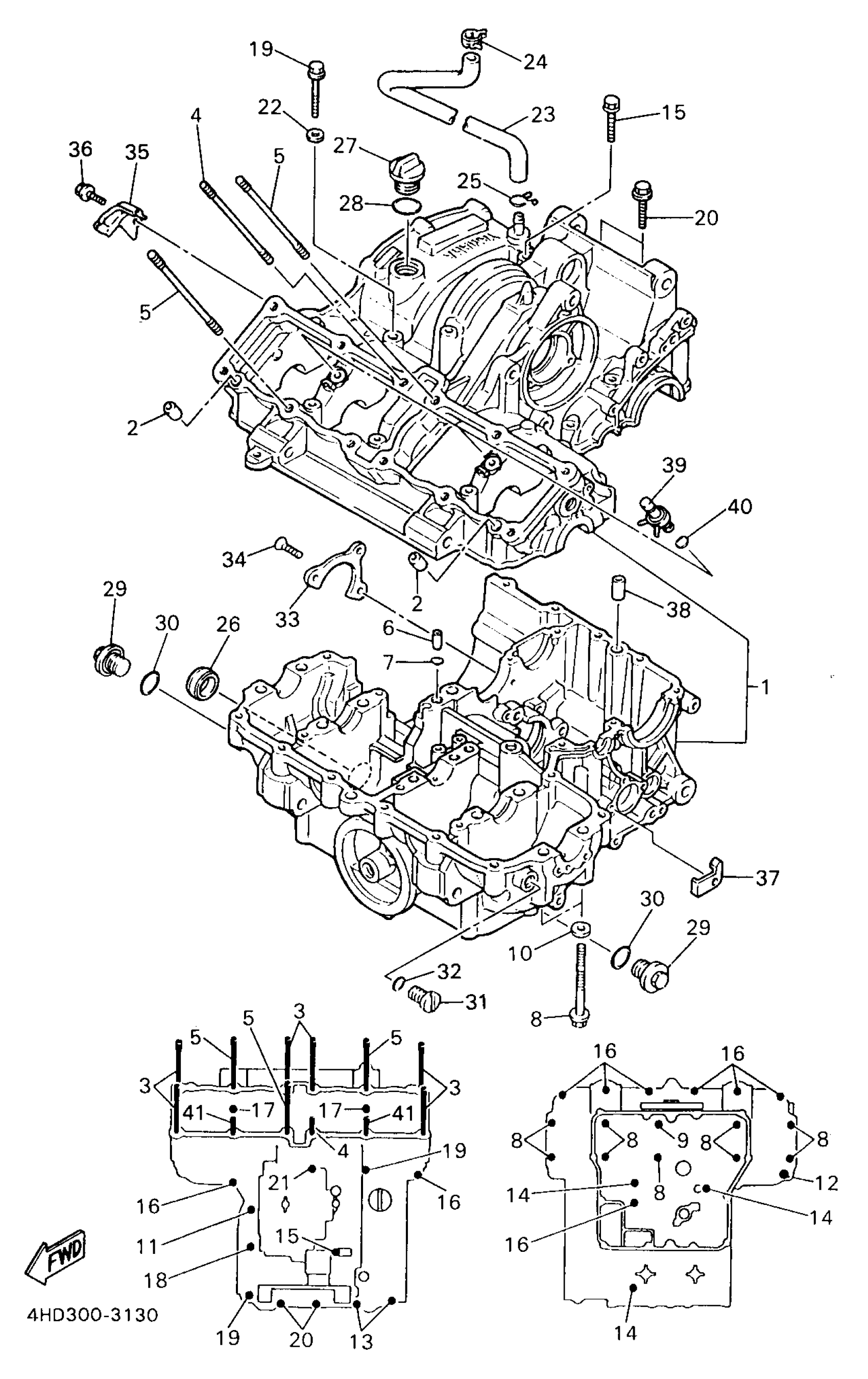

Yamaha YZF750RJC (YZF750R CA) 4LES1 1997 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3GM-15100-55-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, STUD(3FV)

90116-10529-00

Unavailable

4

BOLT, STUD

90116-10528-00

Unavailable

5

BOLT, STUD

90116-10532-00

Unavailable

6

COLLAR 288839130000

90387-05383-00

$10.49

7

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

8

BOLT, WASHER BASED

90105-09373-00

Unavailable

9

BOLT, WASHER BASED

90105-09580-00

Unavailable

10

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

11

. WASHER, PLAIN

92990-05200-00

Unavailable

12

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

13

BOLT, FLANGE

95817-06060-00

$4.14

14

BOLT, FLANGE

95817-06080-00

$4.72

15

BOLT, FLANGE

95817-06140-00

Unavailable

16

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

17

BOLT, FLANGE

95817-08055-00

Unavailable

18

BOLT, WASHER BASED

90105-084A1-00

Unavailable

19

BOLT, FLANGE

95817-08090-00

Unavailable

20

BOLT, FLANGE

95817-08060-00

Unavailable

21

BOLT, WASHER BASED(3KT)

90105-09555-00

Unavailable

22

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

23

PIPE, BREATHER 1

3FV-11166-00-00

Unavailable

24

CLIP (4X7)

90467-15054-00

Unavailable

25

CLIP (371)

90467-14015-00

Unavailable

26

PLUG (3L3)

90338-30096-00

Unavailable

27

PLUG, OIL

3FV-15363-00-00

Unavailable

28

O-RING(1KT)

93210-27778-00

Unavailable

29

PLUG

4H7-15189-00-00

Unavailable

30

O-RING (25G)

93210-20573-00

Unavailable

31

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

Unavailable

32

O-RING (2H9)

93210-14369-00

Unavailable

33

PLATE, BEARING COVER

1AE-15383-00-00

Unavailable

34

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

35

CLAMP

90462-08184-00

Unavailable

36

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

37

CLAMP

90462-08158-00

Unavailable

38

PIN, DOWEL

99530-12016-00

Unavailable

39

NOZZLE ASSEMBLY

3FV-15105-00-00

Unavailable

40

O-RING (26H)

93210-06632-00

Unavailable

41

BOLT, STUD(3JV)

90116-10568-00

Unavailable
