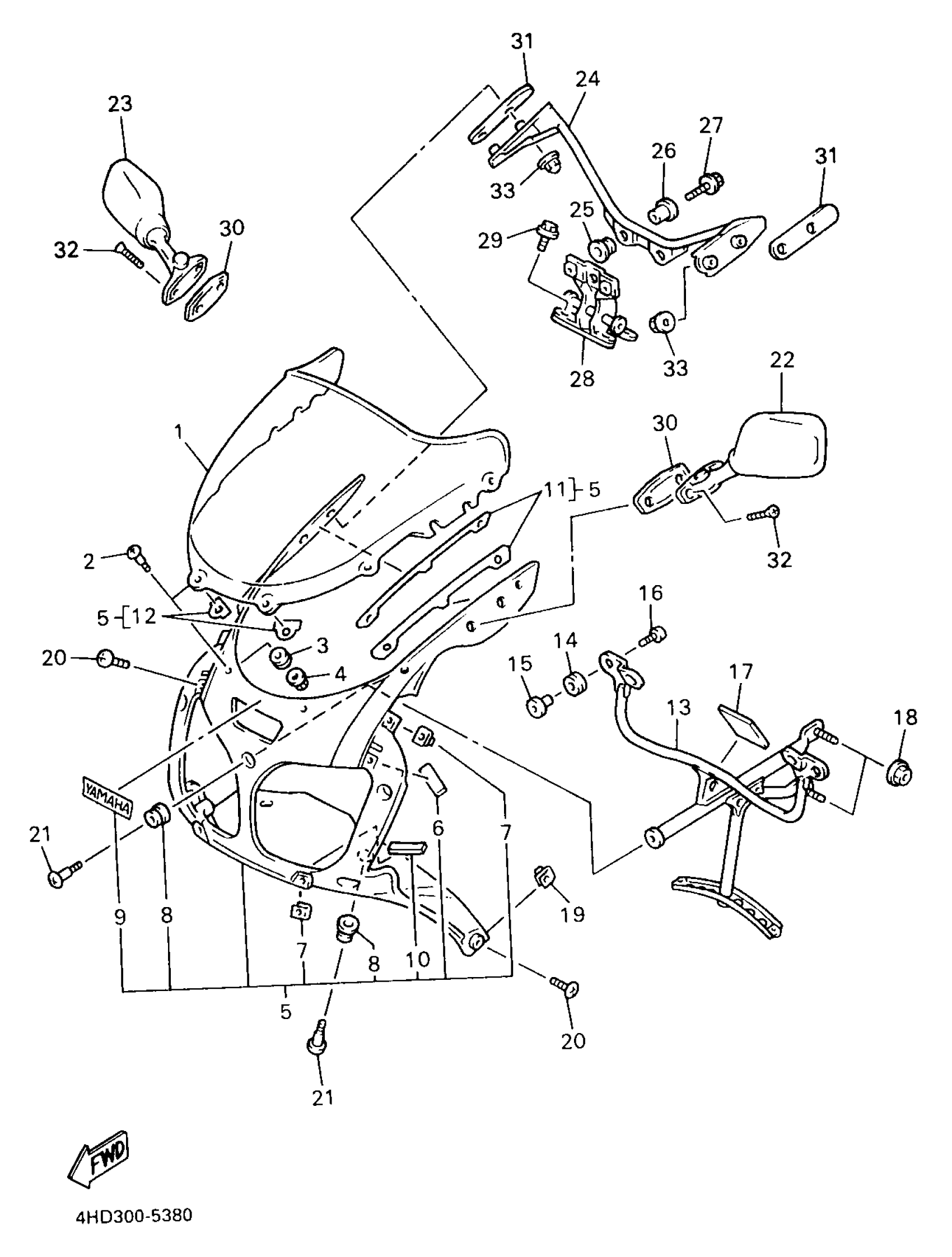

Yamaha YZF750RJC (YZF750R CA) 4LES1 1997 COWLING 1 Diagram

WINDSHIELD

4FM-28381-02-00

Unavailable

SCREW(3HX)

90149-05273-00

$5.60

WASHER, SPECIAL

4FM-28215-00-00

$5.49

NUT, FLANGE(3GM)

95707-05500-00

$8.49

COWLING ASS''Y

4FM-Y2835-30-P2

Unavailable

TRIM 3

89X-77167-00-00

$1.09

NUT, SPRING

90183-051A0-00

$3.81

GROMMET

90480-13014-00

$8.49

EMBLEM, YAMAHA

99246-00100-00

$17.99

. DAMPER

3MA-21649-00-00

Unavailable

. PROTECTOR 1

4FM-2834V-00-00

Unavailable

PROTECTOR 2

4FM-2834W-00-00

Unavailable

STAY 1

4FM-28356-00-00

Unavailable

GROMMET (1E5)

90480-13163-00

$7.49

SPACER (4F2)

90560-06201-00

$13.99

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

DAMPER

51L-28371-00-00

Unavailable

NUT, SELF-LOCKING

90185-08169-00

Unavailable

NUT, SPRING

90183-051A0-00

$3.81

SCREW, ROUND HEAD(4HD)

90150-05039-00

Unavailable

SCREW, ROUND HEAD(4HD)

90150-06036-00

Unavailable

REAR VIEW MIRROR ASSY(LEFT)

4FM-26280-00-00

Unavailable

REAR VIEW MIRROR ASSEMBLY (RIGHT)

4FM-26290-00-00

Unavailable

STAY, MIRROR 1

4FM-2831W-00-00

Unavailable

GROMMET

90480-13014-00

$8.49

COLLAR(1LJ)

90387-067N5-00

Unavailable

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

STAY, MIRROR 2

4FM-2832W-00-00

Unavailable

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

PLATE, MIRROR FITTING 2

4FM-26299-00-00

Unavailable

PLATE, MIRROR FITTING 1

3XV-26298-00-00

Unavailable

SCREW, FLAT

98707-06025-00

Unavailable

NUT, CROWN(1FN)

90176-06055-00

Unavailable
