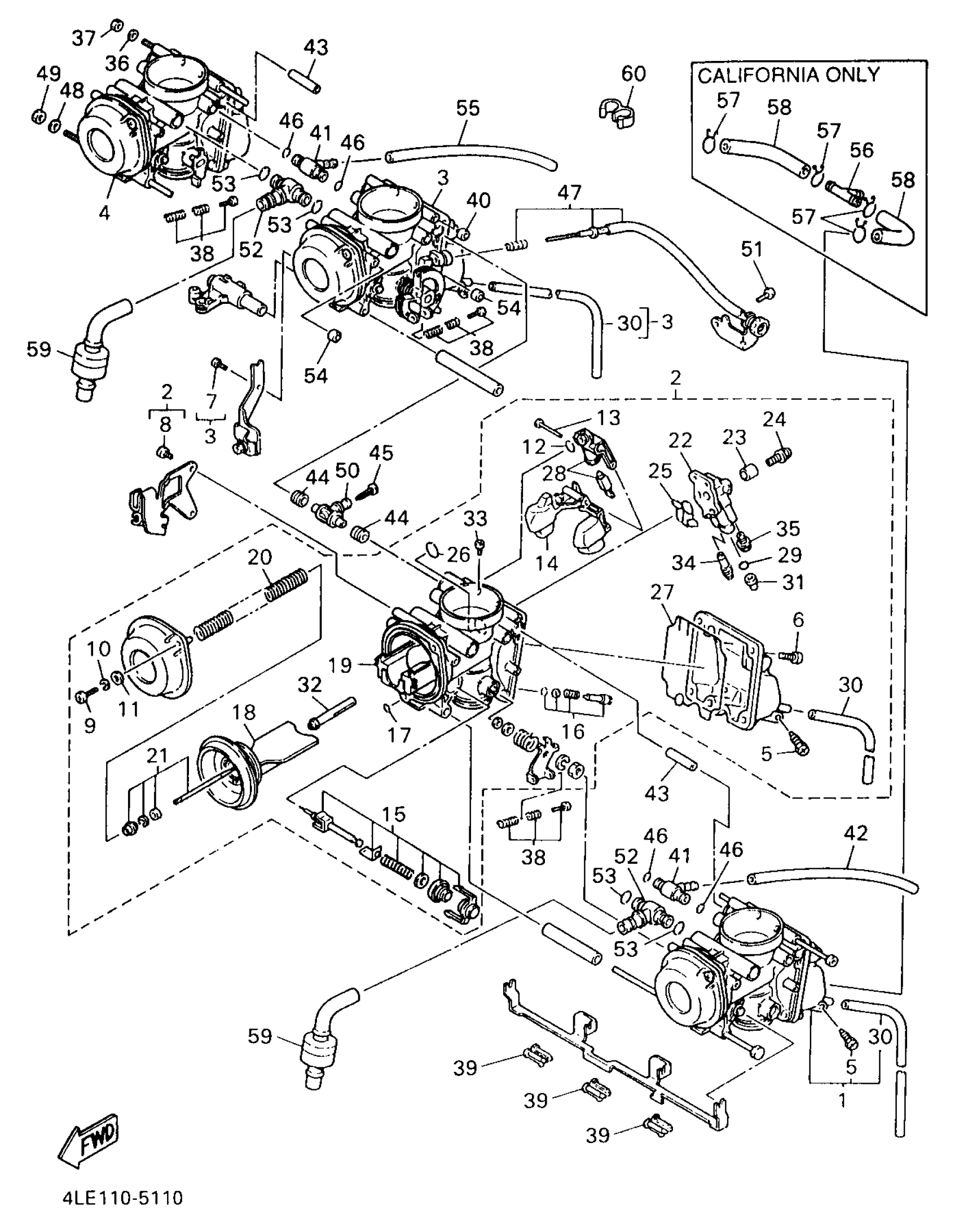

Yamaha YZF750RJC (YZF750R CA) 4LES1 1997 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
4LE-14901-20-00
Unavailable
1
CARBURETOR ASSEMBLY 1
4LE-14901-30-00
Unavailable
2
CARBURETOR ASSEMBLY 2
4LE-14902-20-00
Unavailable
2
CARBURETOR ASSEMBLY 2
4LE-14902-30-00
Unavailable
3
CARBURETOR ASSY 3
4LE-14903-20-00
Unavailable
3
CARBURETOR ASSEMBLY 3
4LE-14903-30-00
Unavailable
4
CARBURETOR ASSEMBLY 4
4LE-14904-20-00
Unavailable
4
CARBURETOR ASSEMBLY 4
4LE-14904-30-00
Unavailable
9
SCREW, PAN HEAD
90157-05M19-00
Unavailable
12
O-RING
3EN-14147-00-00
Unavailable
13
PIN, FLOAT
53L-14186-00-00
Unavailable
14
FLOAT
3GM-14985-00-00
Unavailable
15
STARTER SET
3EN-1410A-01-00
Unavailable
16
PILOT SCREW SET
12R-14105-00-00
Unavailable
17
O-RING
3FV-14147-00-00
Unavailable
18
DIAPHRAGM ASSY
3GM-14940-00-00
Unavailable
19
. BLOCK, JET
3GM-1411E-00-00
Unavailable
20
. SPRING, DIAPHRAGM
3LD-14933-00-00
Unavailable
21
. NEEDLE SET
4LE-1490J-00-00
Unavailable
22
. BLOCK JET ASSEMBLY
4HD-1411A-00-00
Unavailable
23
. WASHER, MAIN JET
3GM-14153-00-00
Unavailable
24
SCREW
4HD-14565-00-00
Unavailable
25
O-RING
3LF-14147-00-00
Unavailable
26
O-RING
1AE-14147-00-00
Unavailable
27
SEAL
3GM-14997-00-00
Unavailable
28
NEEDLE VALVE SET
3GM-14107-10-00
Unavailable
29
O-RING
3LD-14147-00-00
Unavailable
30
PIPE
3JE-14197-00-00
Unavailable
31
. JET, MAIN (#1225)
3LD-1414A-75-00
Unavailable
32
. NOZZLE, MAIN
3GM-14141-08-00
Unavailable
33
. JET, MAIN (#1225)
830-1414A-75-00
Unavailable
34
JET, PILOT (# 35)
4HR-14142-35-00
Unavailable
35
. JET, MAIN (# 575)
620-1423A-62-00
Unavailable
36
WASHER, PLAIN (646)
92990-05600-00
Unavailable
37
NUT, HEXAGON (663)
95380-05600-00
Unavailable
38
STOP SCREW SET
4KM-1490K-00-00
Unavailable
39
HOLDER
3EN-14261-00-00
Unavailable
40
RING
3GM-14918-00-00
Unavailable
41
NIPPLE
17A-14251-00-00
Unavailable
42
PIPE
3LF-14197-00-00
Unavailable
42
PIPE
3GM-14197-00-00
Unavailable
43
PIPE, STARTER CONNECTING
4HD-14988-00-00
Unavailable
44
SEAL
3EN-14997-00-00
Unavailable
45
NET, FILTER
1KT-14994-00-00
Unavailable
46
O-RING
36Y-14147-00-00
Unavailable
47
THROTTLE SCREW SET
3GM-14103-00-00
Unavailable
48
WASHER, PLAIN (646)
92990-06600-00
Unavailable
49
NUT, HEXAGON
95380-06600-00
Unavailable
50
PIPE, STARTER CONNECTING
3EN-14988-00-00
Unavailable
51
SCREW, PAN HEAD (7G3)
98580-05008-00
Unavailable
52
NIPPLE
3GM-14251-00-00
Unavailable
53
O-RING
3LK-14147-00-00
Unavailable
54
ROD
3GM-14992-00-00
Unavailable
55
HOSE
50H-14987-00-00
Unavailable
56
PIPE, JOINT
3H3-24376-00-00
Unavailable
57
CLIP
4LE-14137-00-00
Unavailable
58
HOSE
14X-14294-00-00
Unavailable
59
PIPE
3GM-14197-00-00
Unavailable
60
CLAMP(6M7)
90464-09M31-00
Unavailable
60
CLAMP(6M7)
90464-09M31-00
Unavailable
