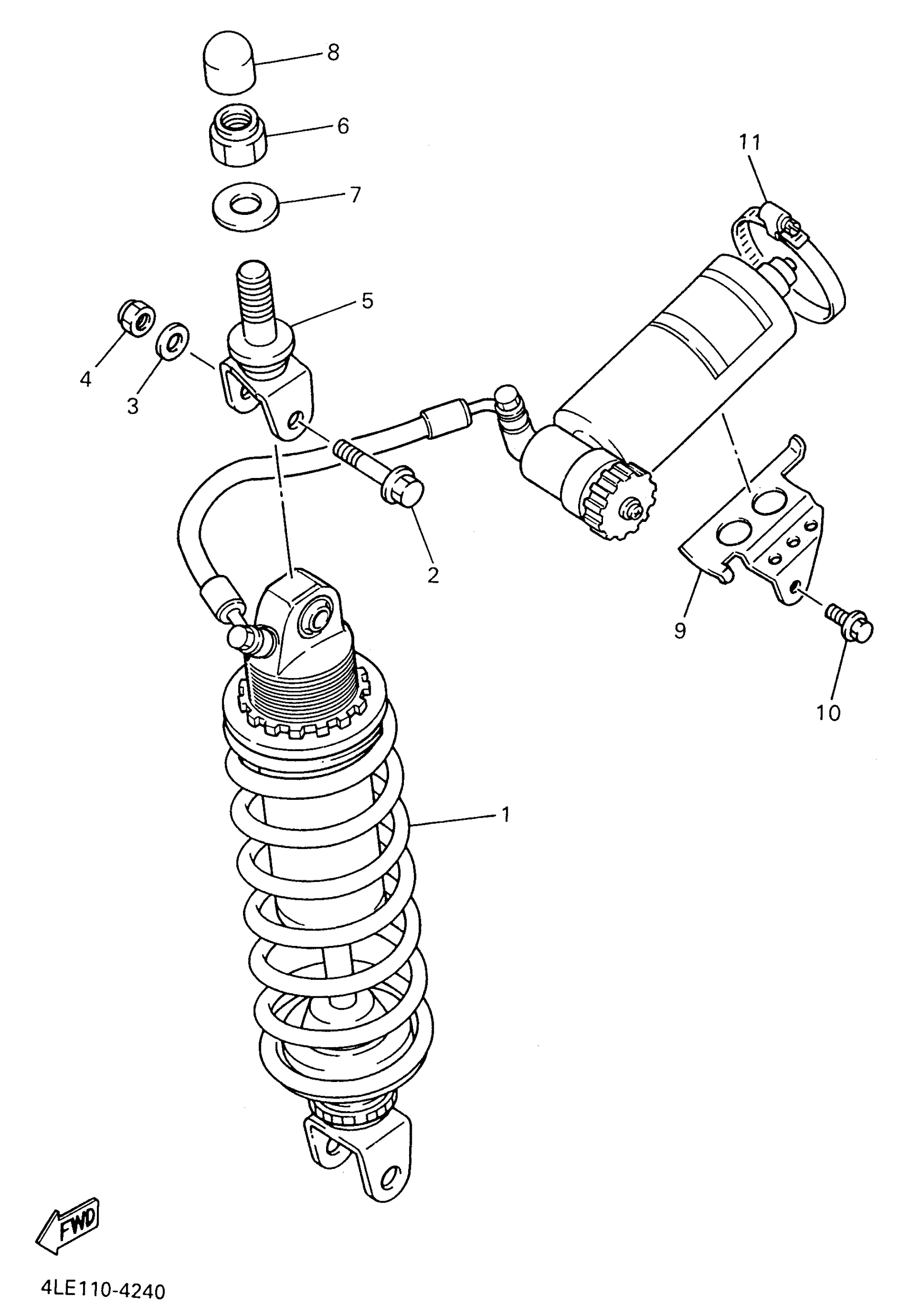

Yamaha YZF750RHC (YZF750R CA) 1996 REAR SUSPENSION Diagram

#

Description
Price

1

SHK/ABS ASY REAR

4LE-22210-10-00

Unavailable

2

BOLT, WASHER BASED(1KT)

90105-10402-00

$7.75

3

WASHER, PLATE(47X)

90201-101J1-00

$6.17

4

NUT, U

95617-10100-00

$6.18

5

BRACKET, UPPER

4FM-22219-00-00

Unavailable

6

NUT, SELF-LOCKING

90185-16002-00

$15.11

7

WASHER, PLATE(33Y)

90201-164H4-00

$8.02

8

CAP

478-25335-00-00

Unavailable

9

HOLDER, SUB TANK

4FM-22262-00-00

Unavailable

10

BOLT, FLANGE

95817-06016-00

$1.49

11

HOSE CLAMP ASSY

90450-50001-00

$20.99
