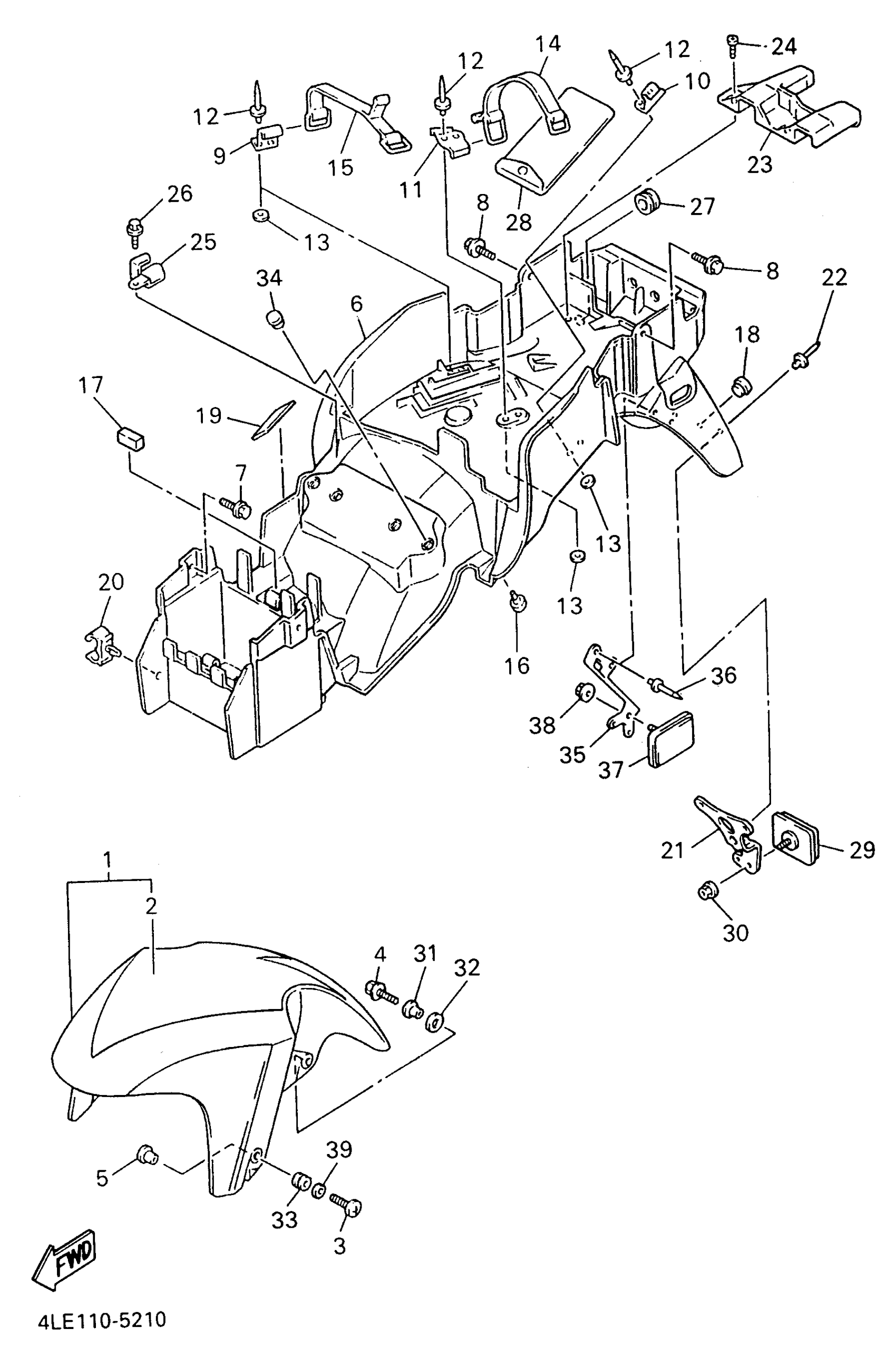

Yamaha YZF750RHC (YZF750R CA) 1996 FENDER Diagram
#
1
FRONT FENDER COMP.
4FM-Y2151-33-P0
Unavailable
2
. GRAPHIC 1
4FM-21569-40-00
Unavailable
5
COLLAR
90387-0608A-00
Unavailable
6
FENDER, REAR
4FM-21611-03-00
Unavailable
9
HOOK, TOOL BAND
3VD-21366-00-00
Unavailable
10
HOOK, TOOL BAND
1M1-21366-00-00
Unavailable
11
BRACKET 3
4JH-2161A-00-00
Unavailable
14
BAND
36X-2811G-00-00
Unavailable
16
DAMPER, SEAT
35T-24724-00-00
Unavailable
17
DAMPER, PLATE 2
1LJ-2414J-00-00
Unavailable
18
PLUG
90338-07018-00
Unavailable
19
DAMPER, LOCATING 1
3XV-21778-00-00
Unavailable
20
CLAMP(3LD)
90464-09130-00
Unavailable
21
BRACKET, REFLECTOR 1
4FM-85132-00-00
Unavailable
22
RIVET, BLIND
90267-40029-00
Unavailable
23
COVER, REAR FENDER 1
4JH-2163A-00-00
Unavailable
24
SCREW, TRUSS TAP.
97707-60016-00
Unavailable
25
HOOK, TOOL BAND
4JH-21366-00-00
Unavailable
27
GROMMET
90480-10258-00
Unavailable
28
TOOL KIT
4FM-28100-10-00
Unavailable
29
REAR REFLECTOR ASSY
4KM-85130-00-00
Unavailable
30
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
31
COLLAR(50M)
90387-087L0-00
Unavailable
32
DAMPER
4FM-28372-00-00
Unavailable
33
GROMMET(4FM)
90480-12596-00
Unavailable
34
PLUG (17J)
90338-10132-00
Unavailable
35
BRACKET, REAR STAY
4FM-21688-00-00
Unavailable
36
RIVET, BLIND
90267-40029-00
Unavailable
37
REAR REFLECTOR ASSY
4KM-85130-00-00
Unavailable
38
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
39
WASHER
90209-18340-00
Unavailable
