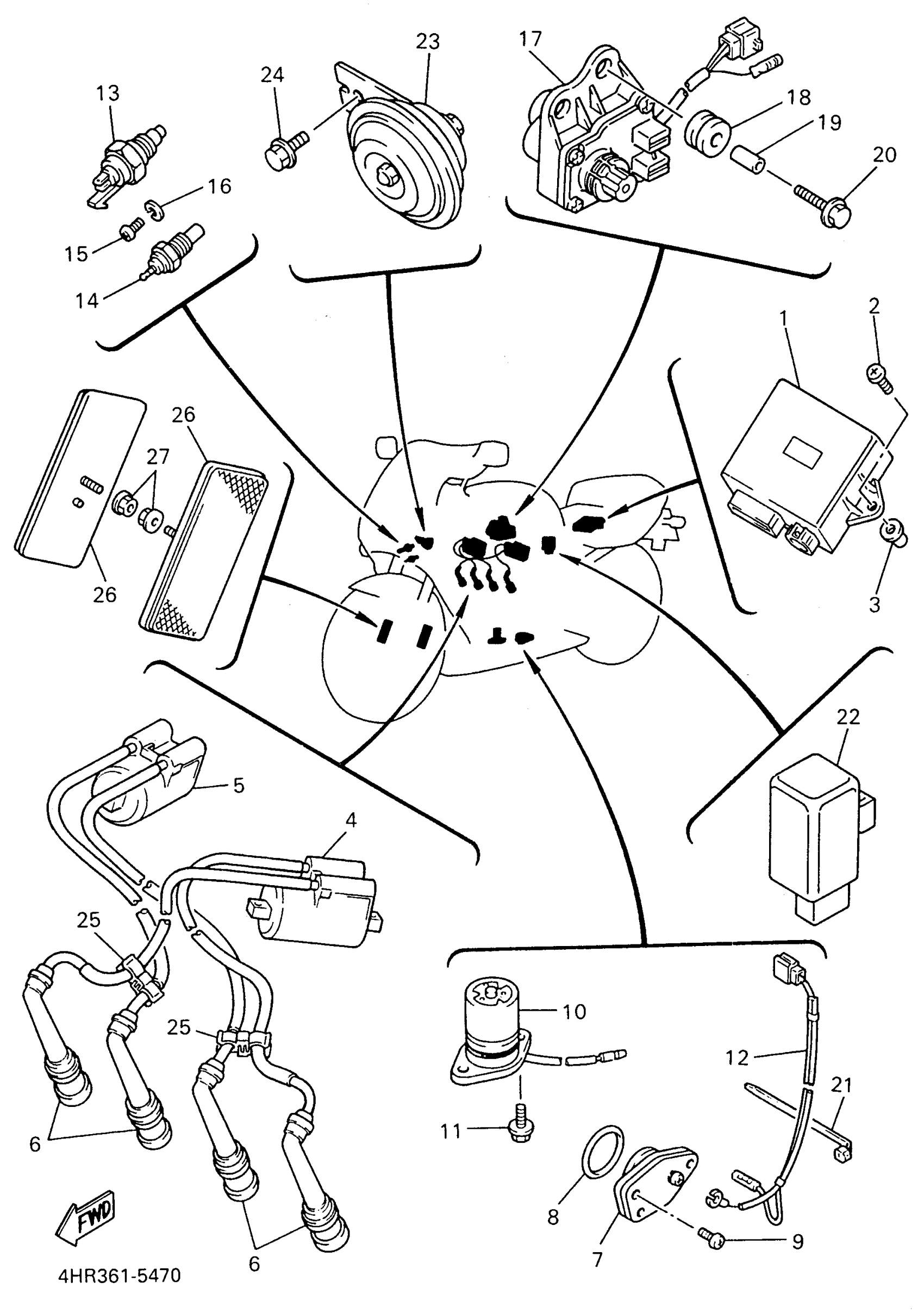

Yamaha YZF750RHC (YZF750R CA) 1996 ELECTRICAL 1 Diagram

IGNITOR UNIT ASSEMBLY

4LE-82305-10-00

Unavailable

SCREW, TRUSS TAP.

97707-60016-00

$1.70

PLUG(4BP)

90338-08226-00

$2.17

IGNITION COIL ASSY

4KM-82310-02-00

Unavailable

IGNITION COIL ASY

4BH-82320-01-00

Unavailable

PLUG CAP ASSY

2KT-82370-00-00

$122.99

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

O-RING (371)

93210-29196-00

$8.49

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

OIL LEVEL GAUGE ASSEMBLY

3GM-85720-00-00

Unavailable

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

WIRE, LEAD

4HR-82541-00-00

Unavailable

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

THERMO UNIT

11H-83591-00-00

$105.99

GASKET, EXHAUST

98507-05008-00

$3.55

WASHER(1RW)

92907-05600-00

Unavailable

SERVOMOTOR ASY

4FM-85820-01-00

Unavailable

GROMMET

90480-14412-00

Unavailable

COLLAR(3GM)

90387-0609L-00

Unavailable

BOLT, FLANGE

95817-06030-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

HORN

2KG-83371-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

Unavailable

CLAMP

90464-10186-00

Unavailable

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
