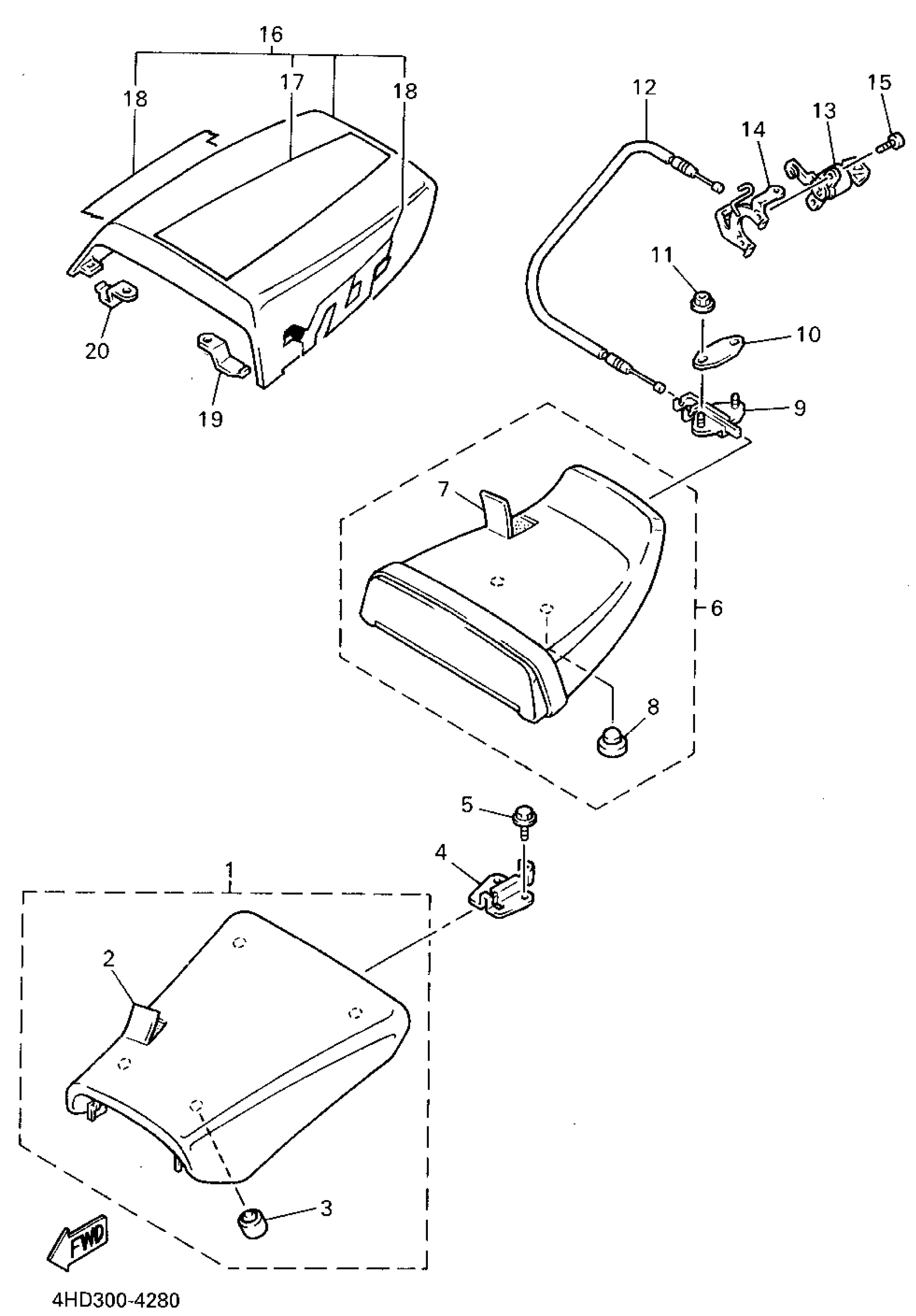

Yamaha YZF750RFC (YZF750R CA) 1994 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSEMBLY
4FM-24710-01-00
Unavailable
2
. COVER, SINGLE SEAT
4FM-24711-00-00
Unavailable
3
. DAMPER, SEAT
4FM-24724-00-00
Unavailable
4
SEAT LOCK ASSEMBLY
4FM-24780-00-00
Unavailable
5
BOLT, FLANGE
91002-06016-00
Unavailable
6
TANDEM SEAT ASSEMBLY
4FM-24750-00-00
Unavailable
7
. COVER, TANDEM SEAT
4FM-24751-00-00
Unavailable
10
PLATE
4BP-24792-00-00
Unavailable
12
WIRE,SEAT HOOK
4FM-2478E-01-00
Unavailable
14
STAY, LOCK
4FM-2117K-00-00
Unavailable
16
COVER, SEAT
4FM-Y2479-20-P0
Unavailable
17
. GRAPHIC, SEAT
4FM-2478M-00-00
Unavailable
18
. EMBLEM
4FM-24786-00-00
Unavailable
19
BRACKET,SEAT LVR 2
4FM-2475J-01-00
Unavailable
20
BRACKET,SEAT LVR 1
4FM-2475H-01-00
Unavailable
